A/T Internal Connector End Views

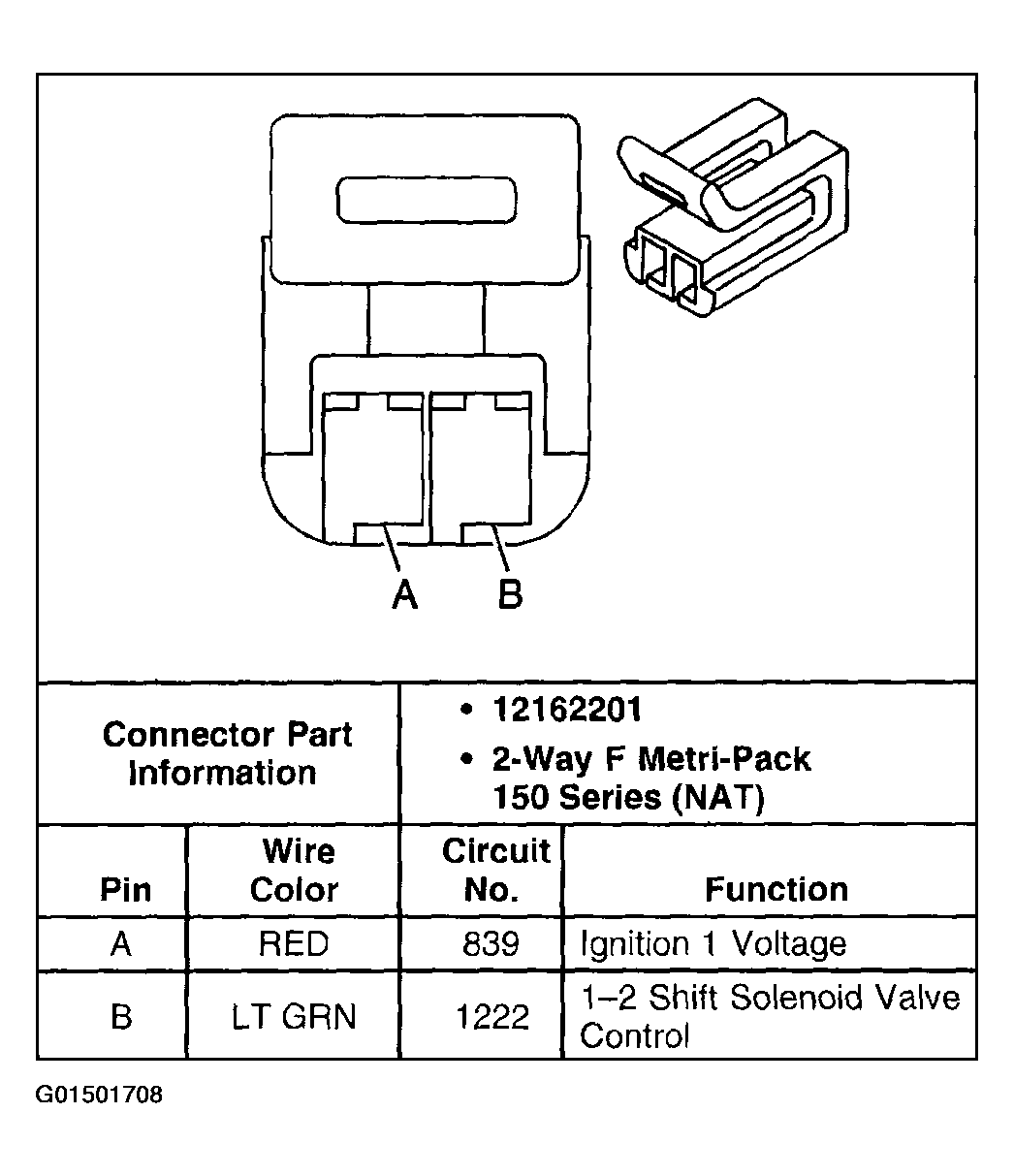

Fig 1: Identifying 1-2 Shift Solenoid Valve Connector - Wiring Harness Side
G01501708Courtesy of GENERAL MOTORS CORP.

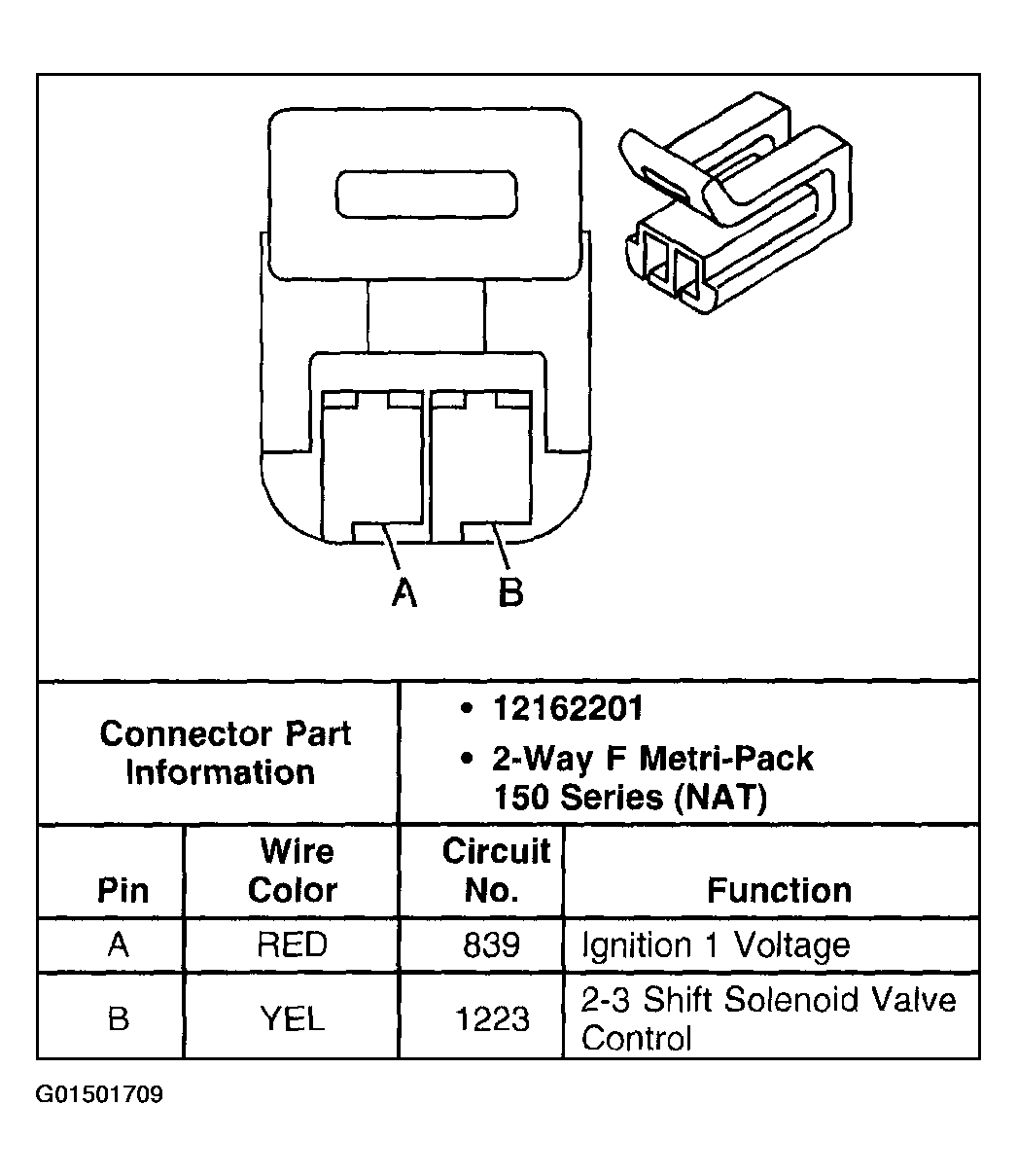

Fig 2: Identifying 2-3 Shift Solenoid Valve Connector - Wiring Harness Side
G01501709Courtesy of GENERAL MOTORS CORP.

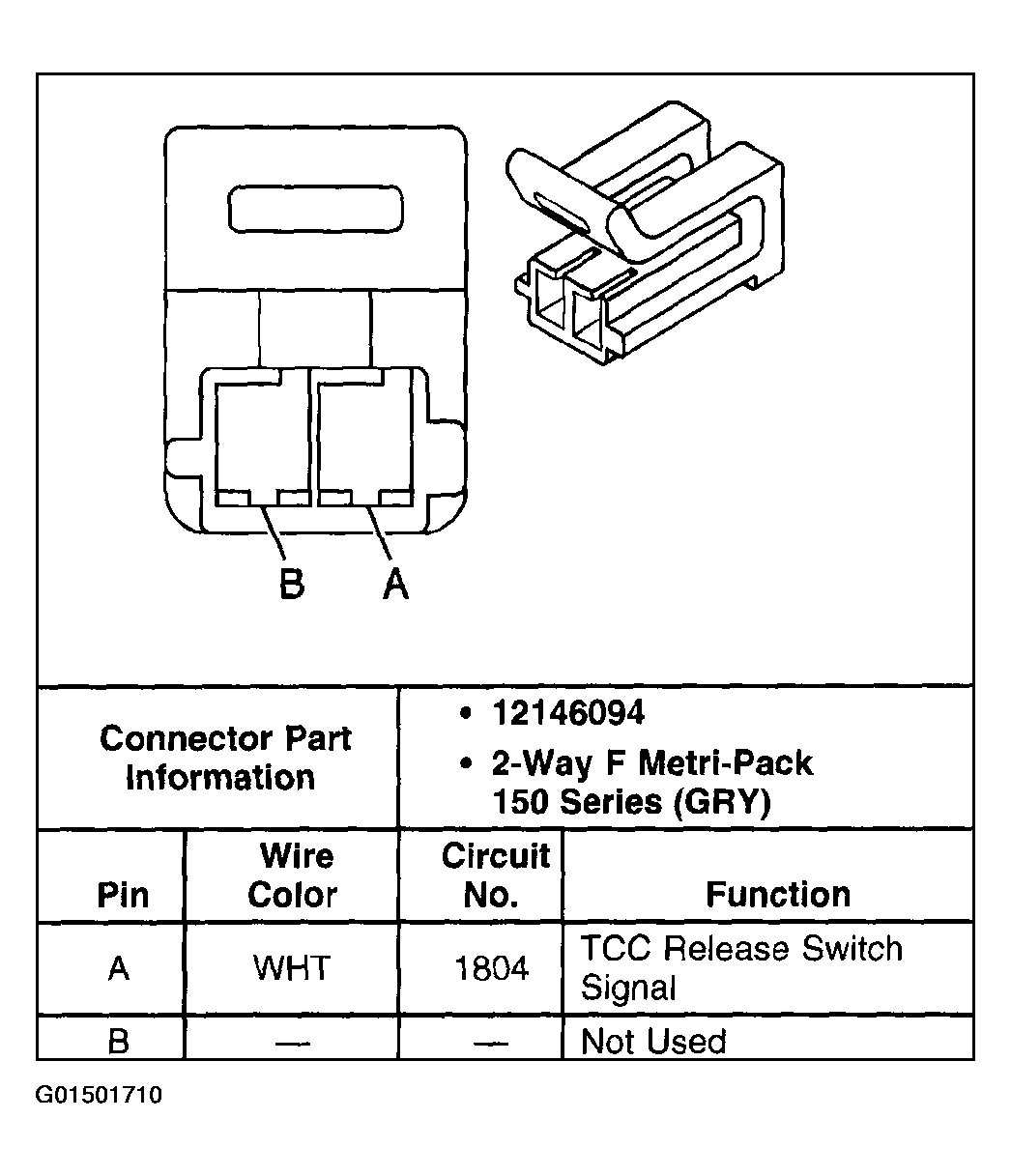

Fig 3: Identifying A/T Fluid Pressure Manual Valve Position Switch Connector - Wiring Harness Side
G01501710Courtesy of GENERAL MOTORS CORP.

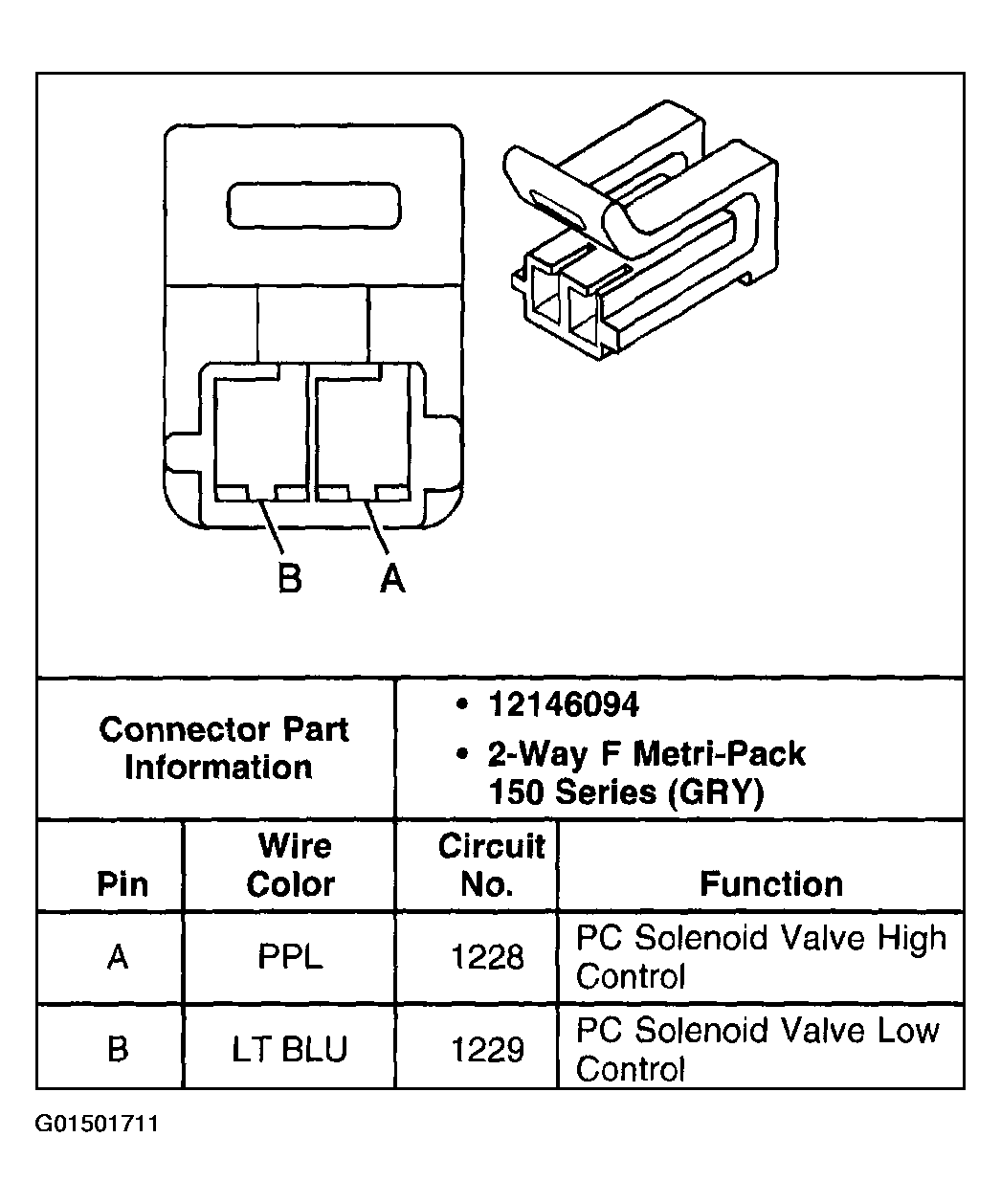

Fig 4: Identifying Pressure Control Solenoid Valve Connector - Wiring Harness Side
G01501711Courtesy of GENERAL MOTORS CORP.

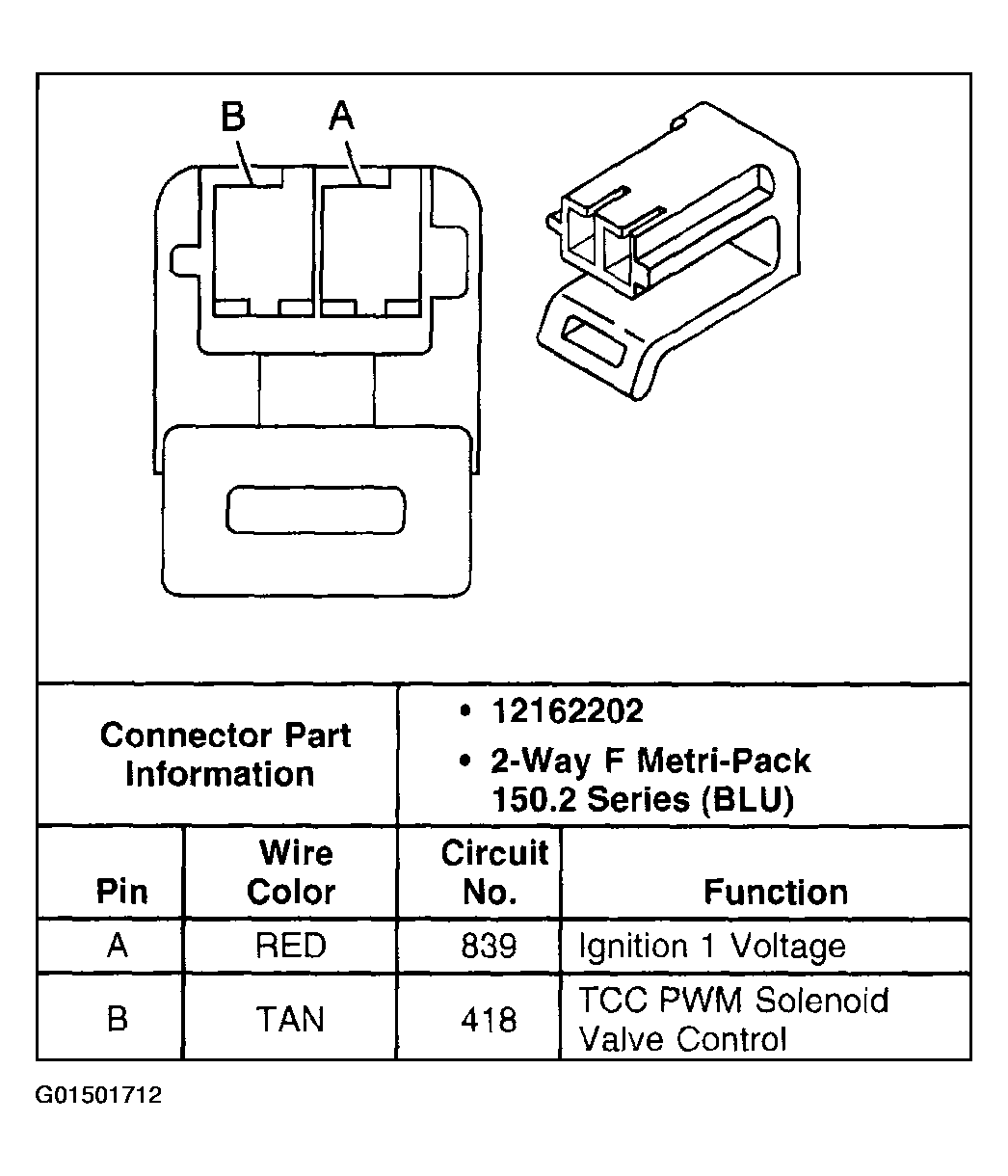

Fig 5: Identifying Torque Converter Clutch Pulse Width Modulated Solenoid Valve Connector - Wiring Harness Side
G01501712Courtesy of GENERAL MOTORS CORP.

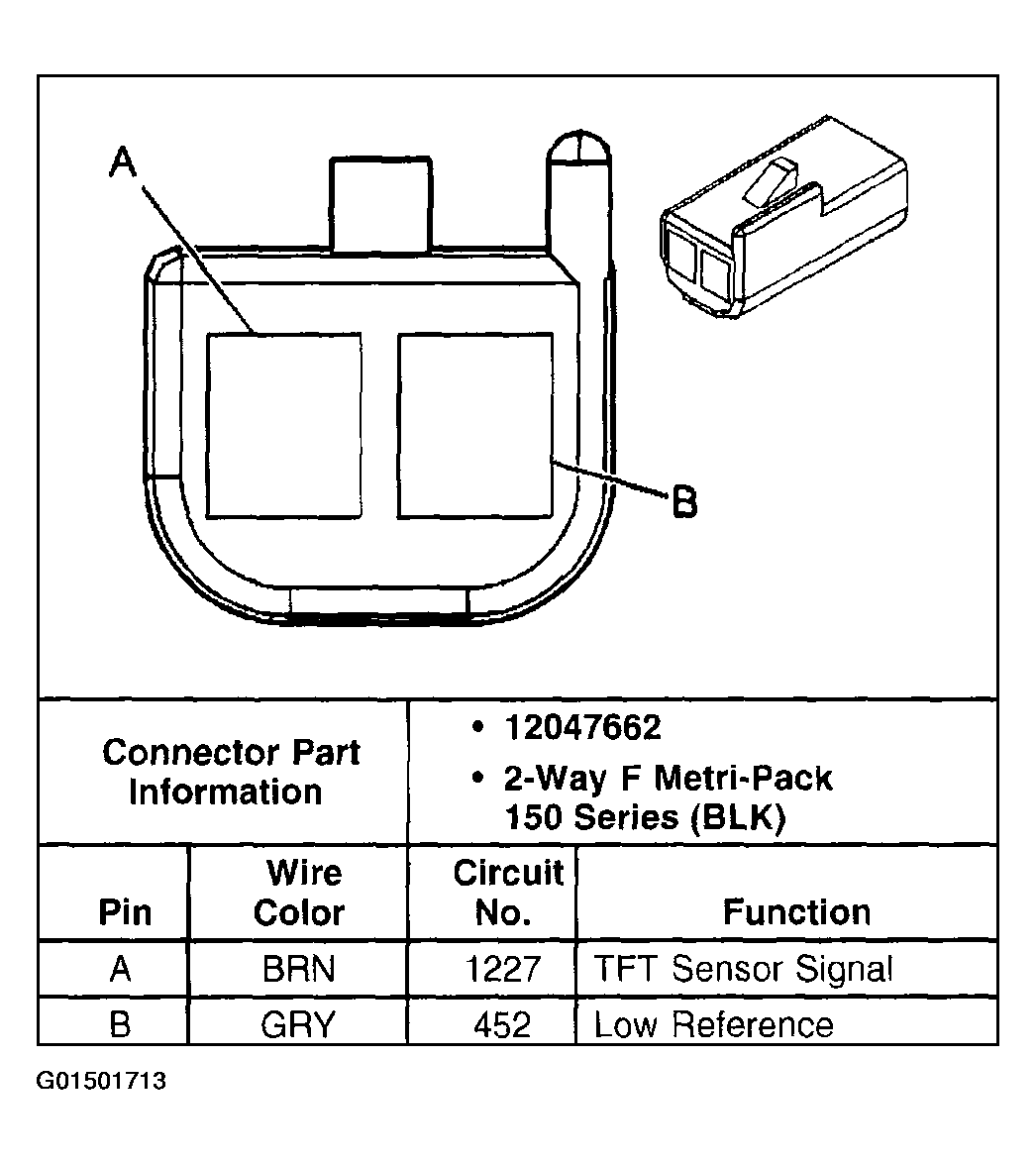

Fig 6: Identifying Transmission Fluid Temperature Sensor Connector - Wiring Harness Side
G01501713Courtesy of GENERAL MOTORS CORP.
Fig 7: Identifying Input Speed Sensor Connector - Wiring Harness Side
G01501714Courtesy of GENERAL MOTORS CORP.

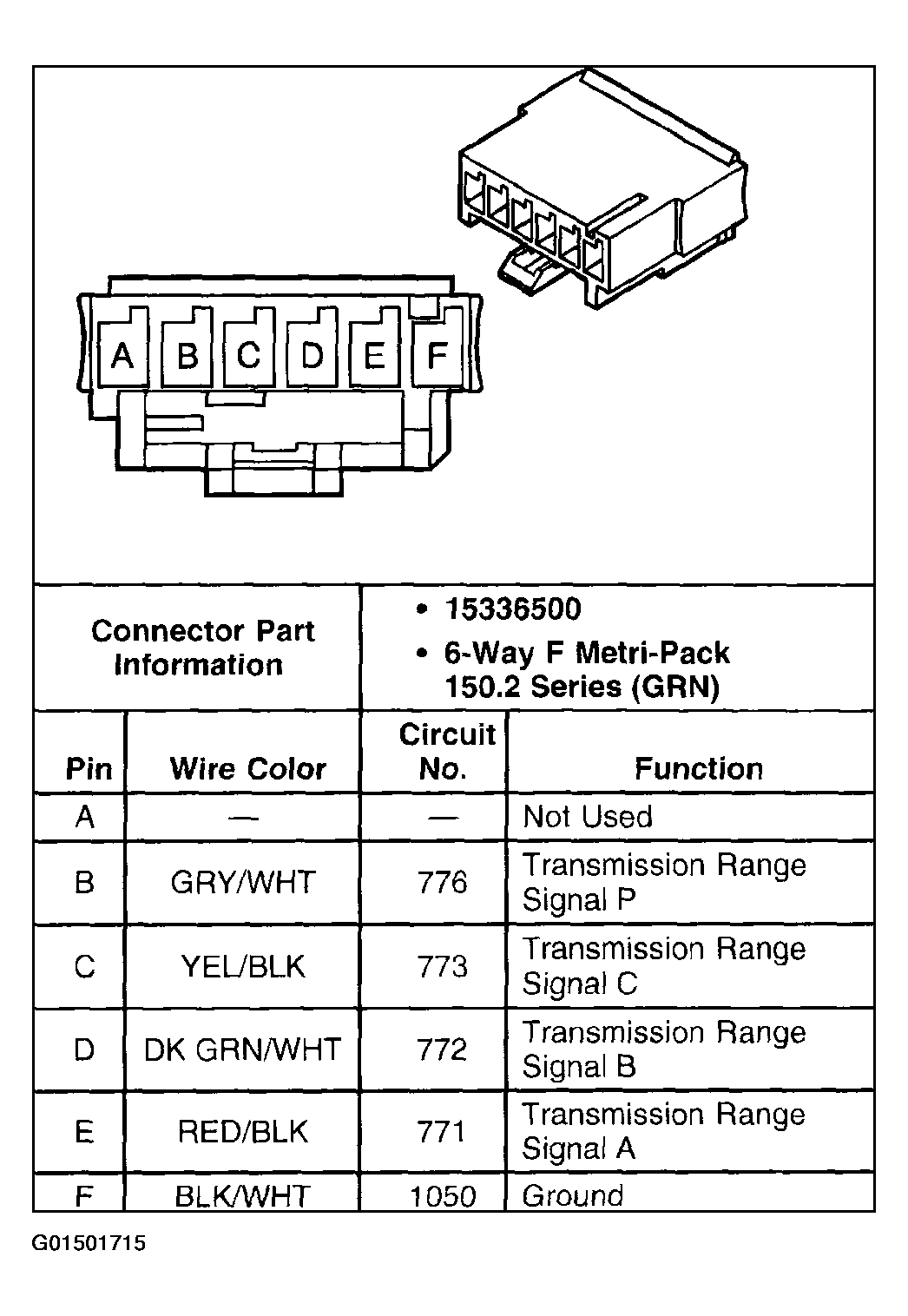

Fig 8: Identifying Transmission Internal Mode Switch Connector - Wiring Harness Side
G01501715Courtesy of GENERAL MOTORS CORP.
