Removal Procedure

  1. Raise and support the vehicle.
  2. Remove the compressor assembly. Refer to AIR COMPRESSOR REPLACEMENT  .
  3. Remove the hose (1) from the air dryer (2).

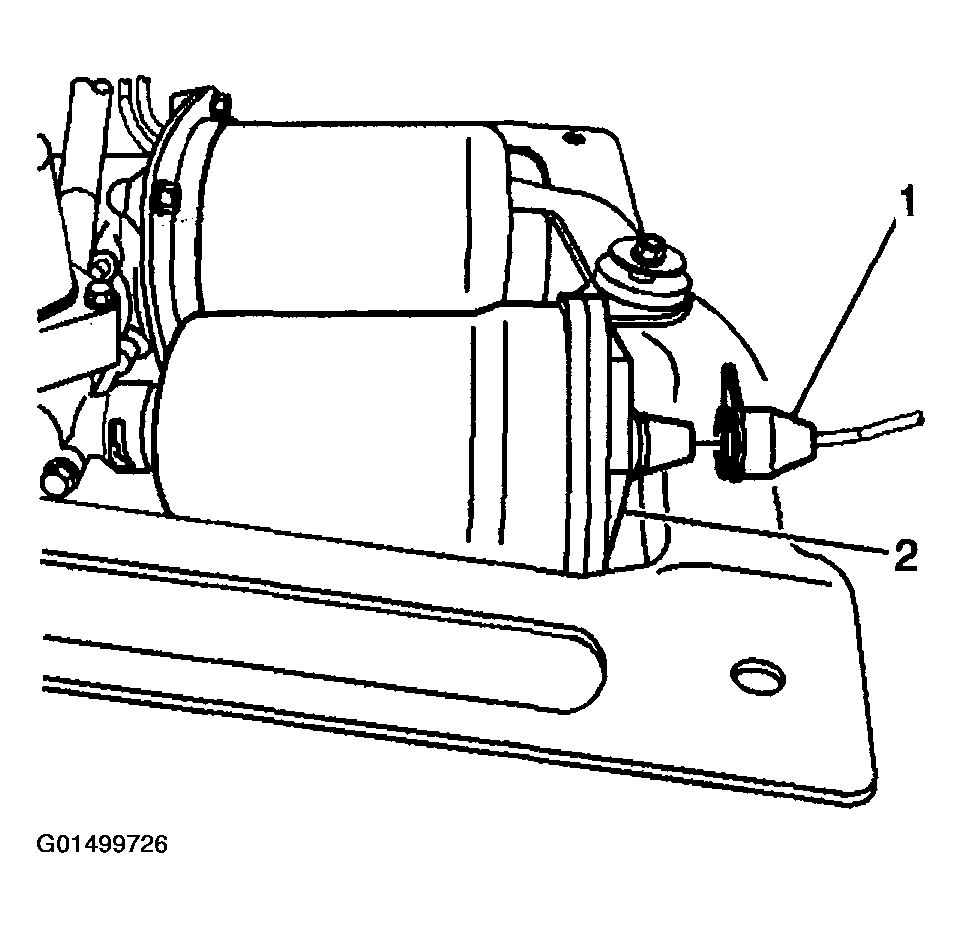

    Fig 1: Removing Hose From Air Dryer
    G01499726Courtesy of GENERAL MOTORS CORP.
  4. Remove the mounting screw (1).

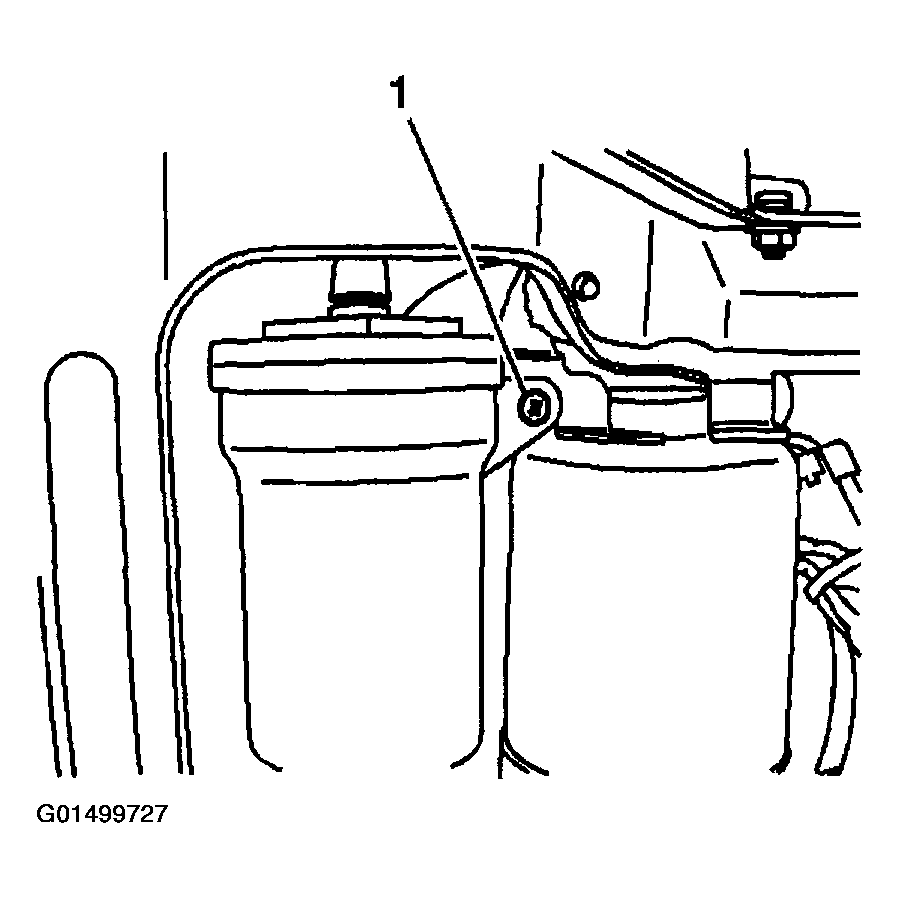

    Fig 2: Removing Mounting Screw
    G01499727Courtesy of GENERAL MOTORS CORP.
  5. Rotate the air dryer (1) to remove from compressor.

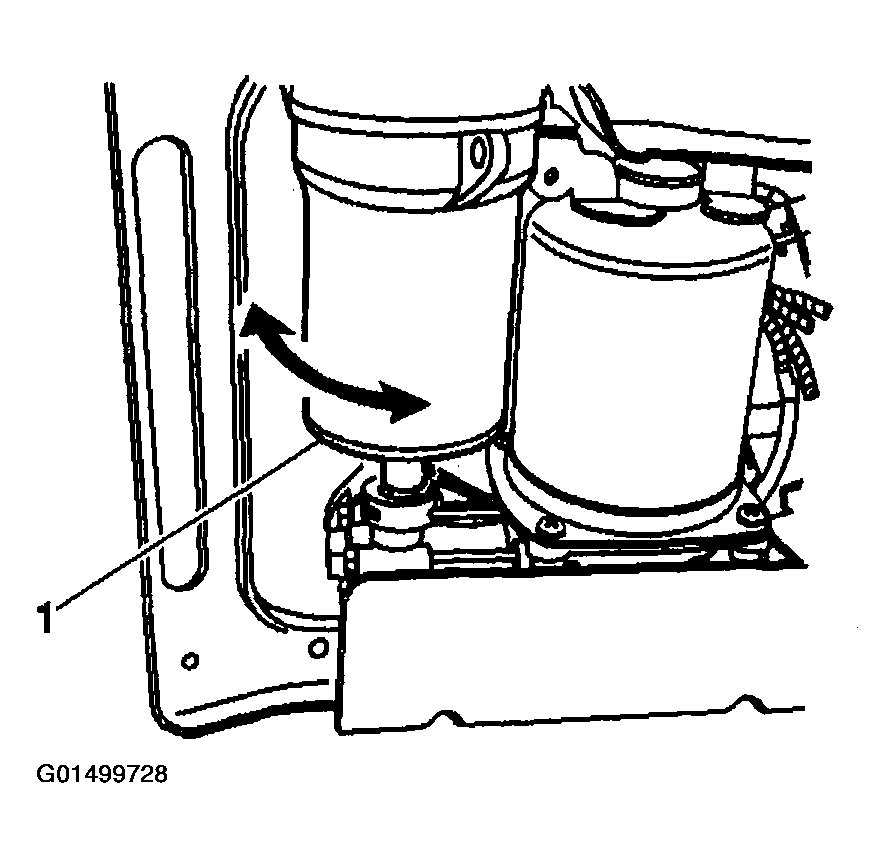

    Fig 3: Removing Rotate Air Dryer From Compressor
    G01499728Courtesy of GENERAL MOTORS CORP.
