Power Steering Gear Disassembled View (Rack & Pinion)

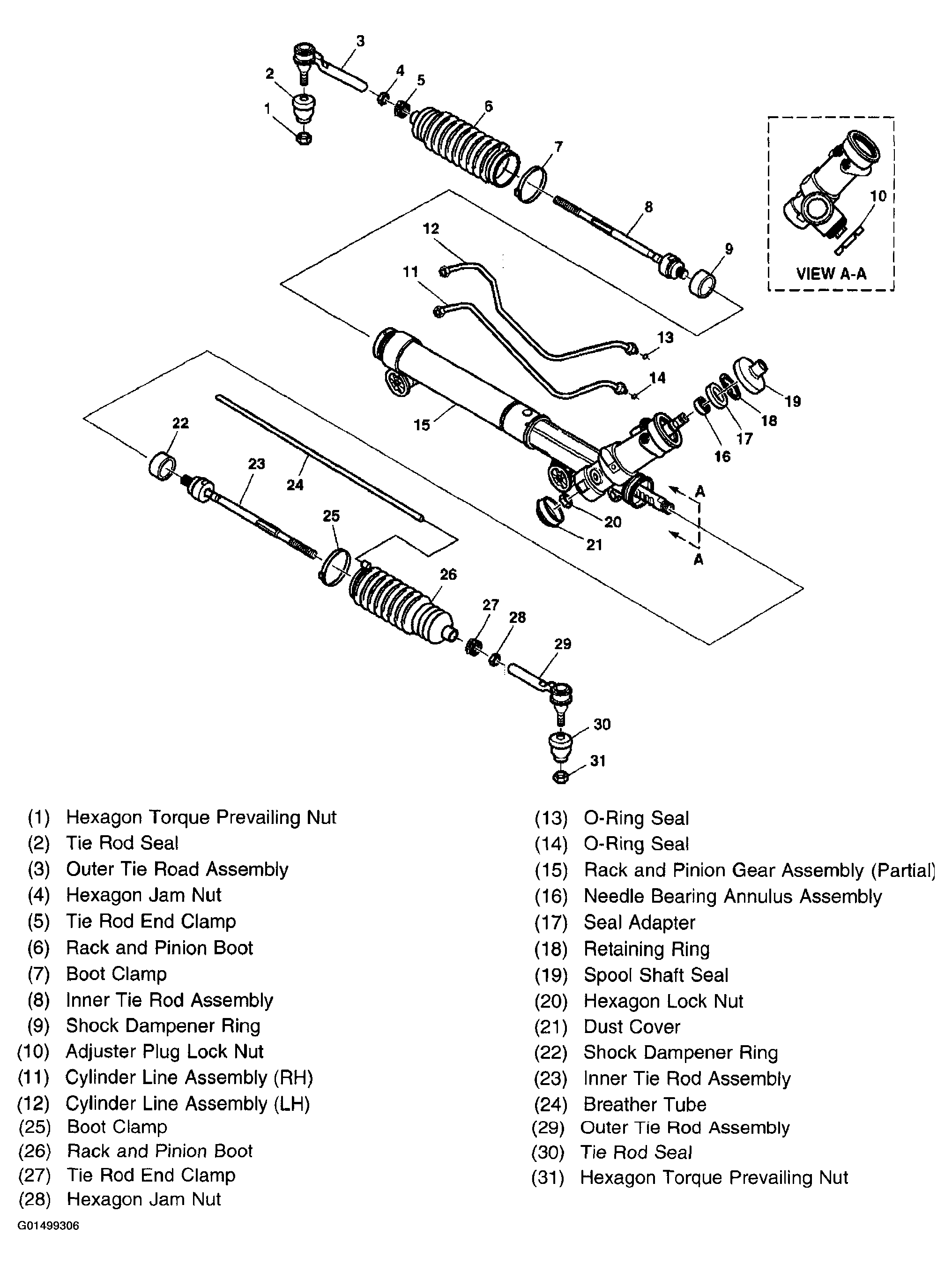

Fig 1: Exploded View Of Rack & Pinion Power Steering Gear

G01499306

Courtesy of GENERAL MOTORS CORP.
