Installation Procedure

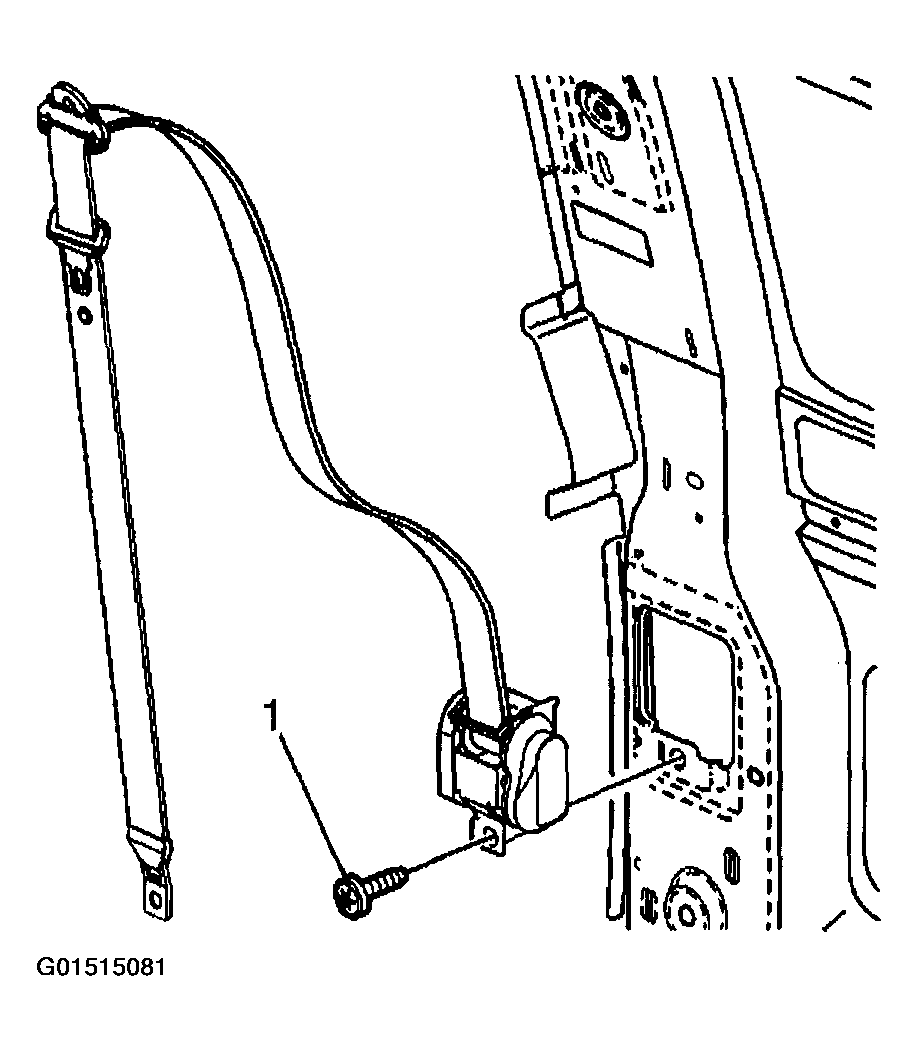

Install the seat belt retractor to the vehicle.
Install the bolt (1) that retains the rear retractor to the body.
Tighten

Tighten the retractor bolt to 43 N.m (32 lb ft).

Fig 1: Installing Procedure Of Seat Belt Retractor - No. 2 Rear (1 Of 5)
Courtesy of GENERAL MOTORS CORP.

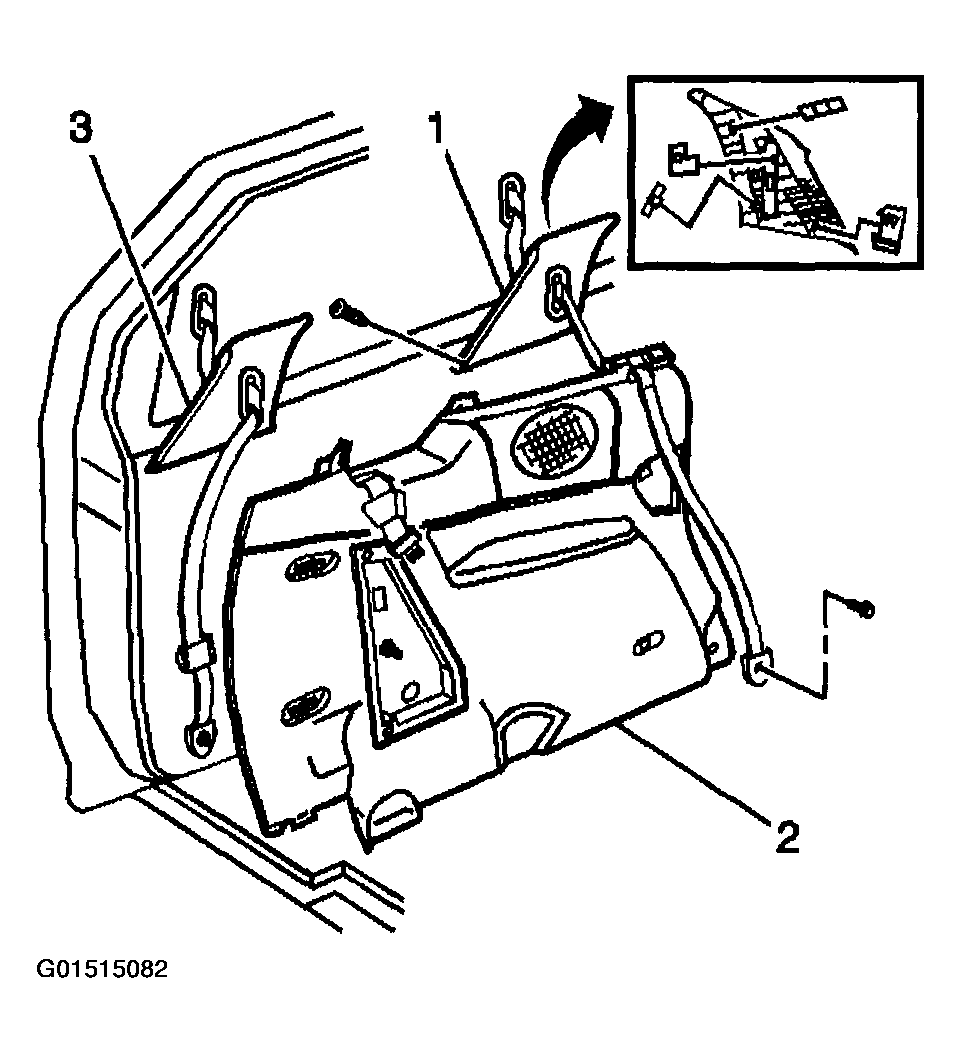

Install the quarter trim panel to the vehicle.
Install the bolts to the cargo tie-down locations.
Tighten

Tighten the loop bolts to 6 N.m (53 lb in).
Install the lower seat belt anchor bolt.
Tighten

Tighten anchor bolt to 43 N.m (32 lb ft).
Install the liftgate door sill plate. Refer to DOOR SILL PLATE REPLACEMENT -- LIFT GATE (RENDEZVOUS) .

Fig 2: Installing Procedure Of Seat Belt Retractor - No. 2 Rear (2 Of 5)
Courtesy of GENERAL MOTORS CORP.

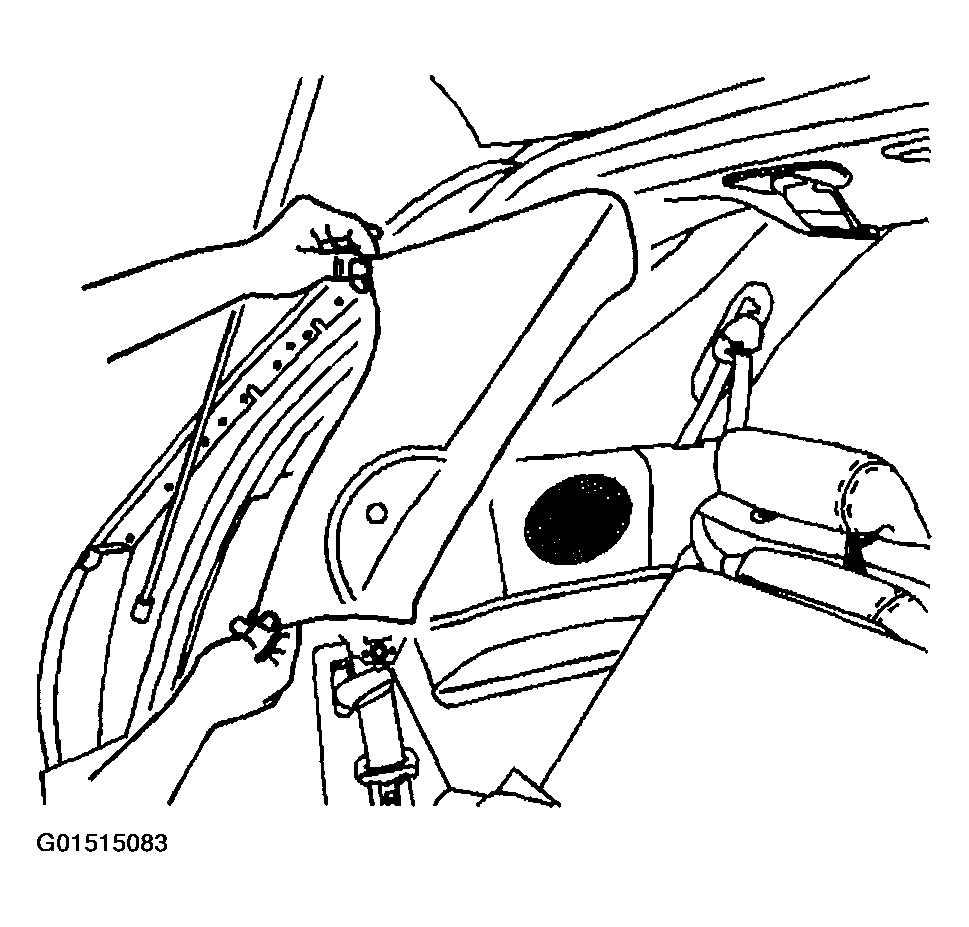

Install the pillar trim to the vehicle.

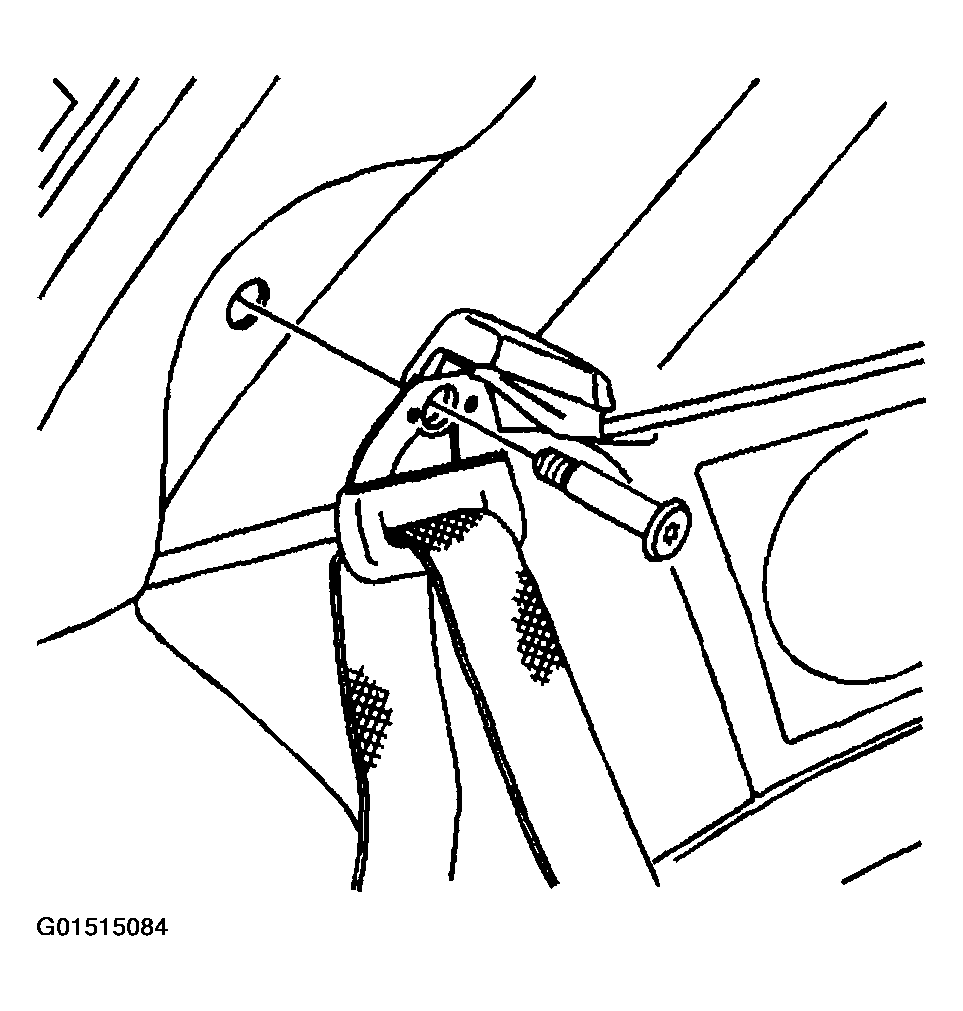

Install the bolt that secures the seat belt guide loop.
Tighten

Tighten the bolt to 43 N.m (32 lb ft).

Fig 3: Installing Procedure Of Seat Belt Retractor - No. 2 Rear (3 Of 5)
Courtesy of GENERAL MOTORS CORP.

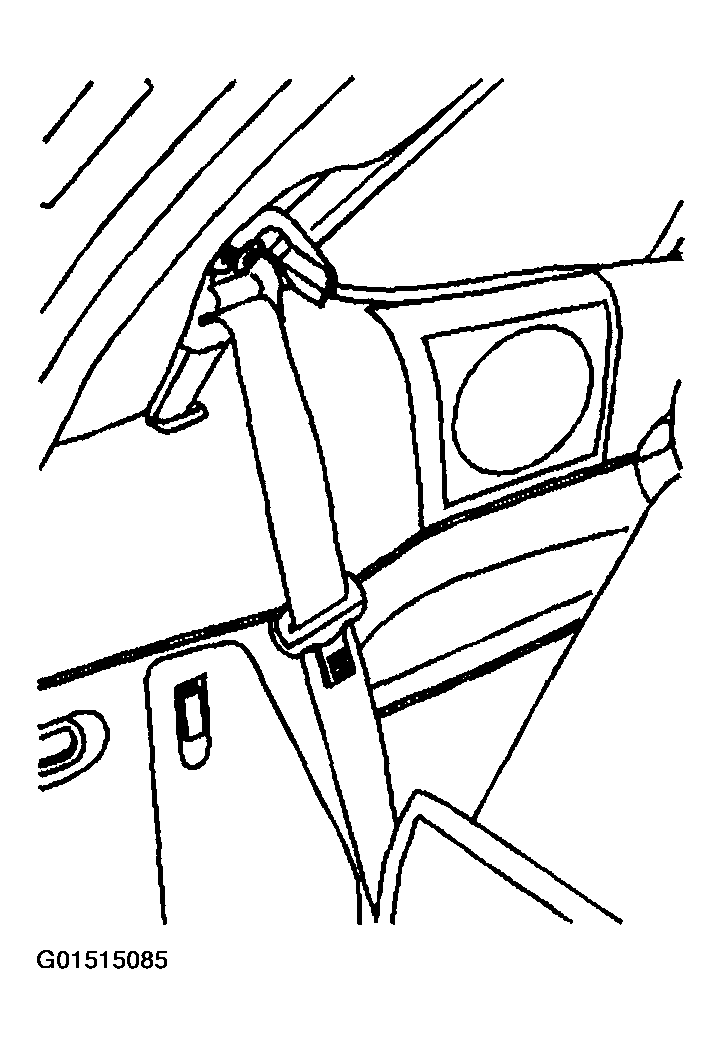

Close the cover to the seat belt guide loop.

Fig 4: Installing Procedure Of Seat Belt Retractor - No. 2 Rear (4 Of 5)
Courtesy of GENERAL MOTORS CORP.
Install the rear No. 2 seat. Refer to SEAT REPLACEMENT -- REAR NO. 2 (BUICK) .

Fig 5: Installing Procedure Of Seat Belt Retractor - No. 2 Rear (5 Of 5)
Courtesy of GENERAL MOTORS CORP.
