Removal Procedure

  1. Remove the rear seat belt center latch to buckle.

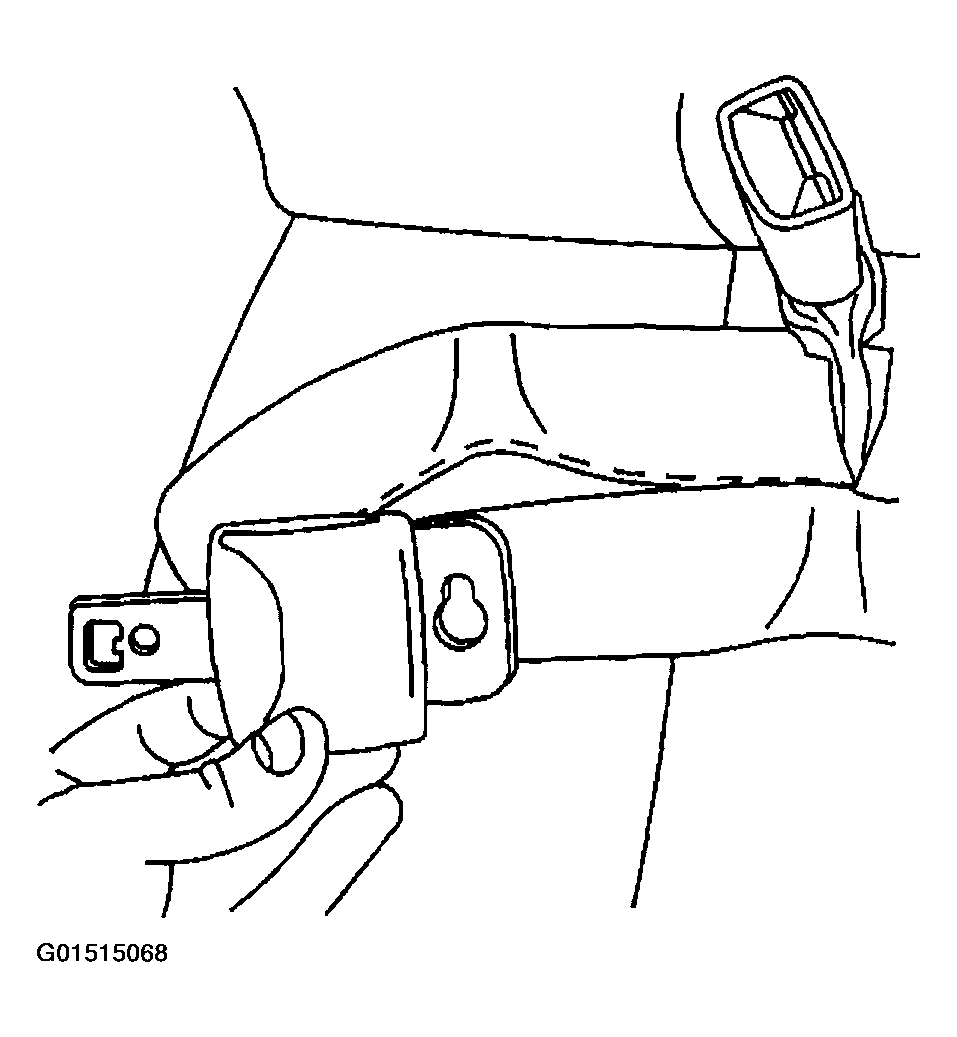

    Fig 1: Removing Procedure Of Seat Belt Retractor - Center Rear (1 Of 4)
    G01515068Courtesy of GENERAL MOTORS CORP.
  2. Remove the rear upper garnish molding. Refer to GARNISH MOLDING REPLACEMENT -- REAR UPPER .

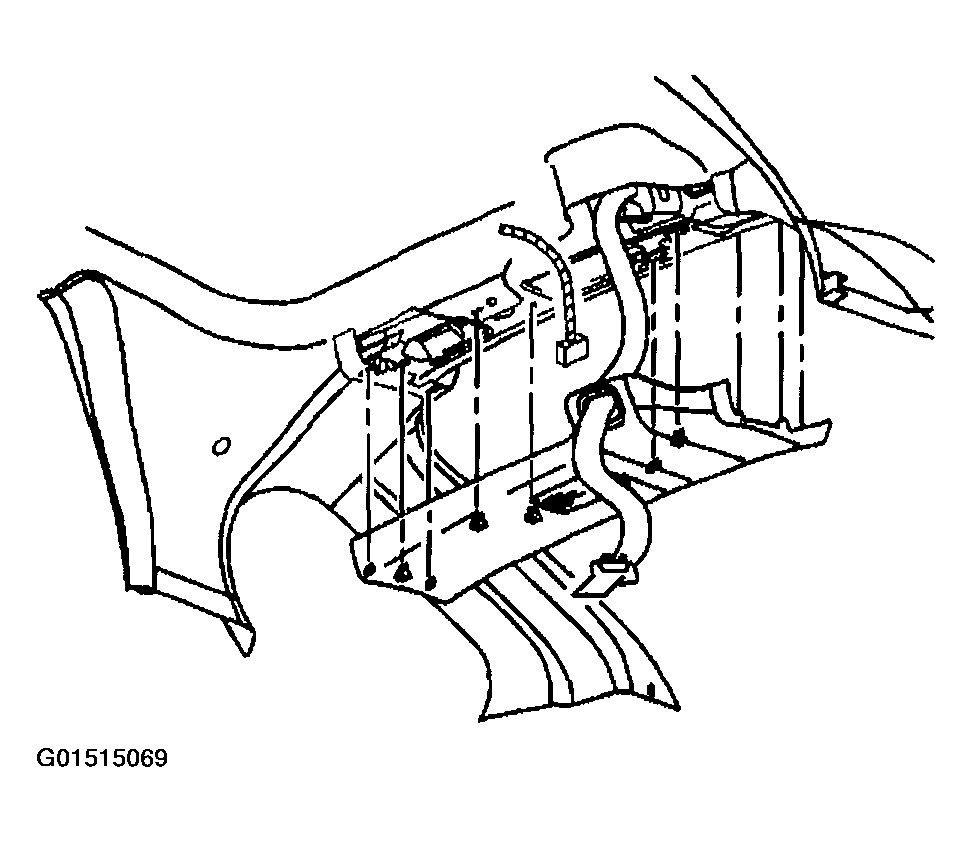

    Fig 2: Removing Procedure Of Seat Belt Retractor - Center Rear (2 Of 4)
    G01515069Courtesy of GENERAL MOTORS CORP.
  3. Remove the rear seat belt center retractor bolt.

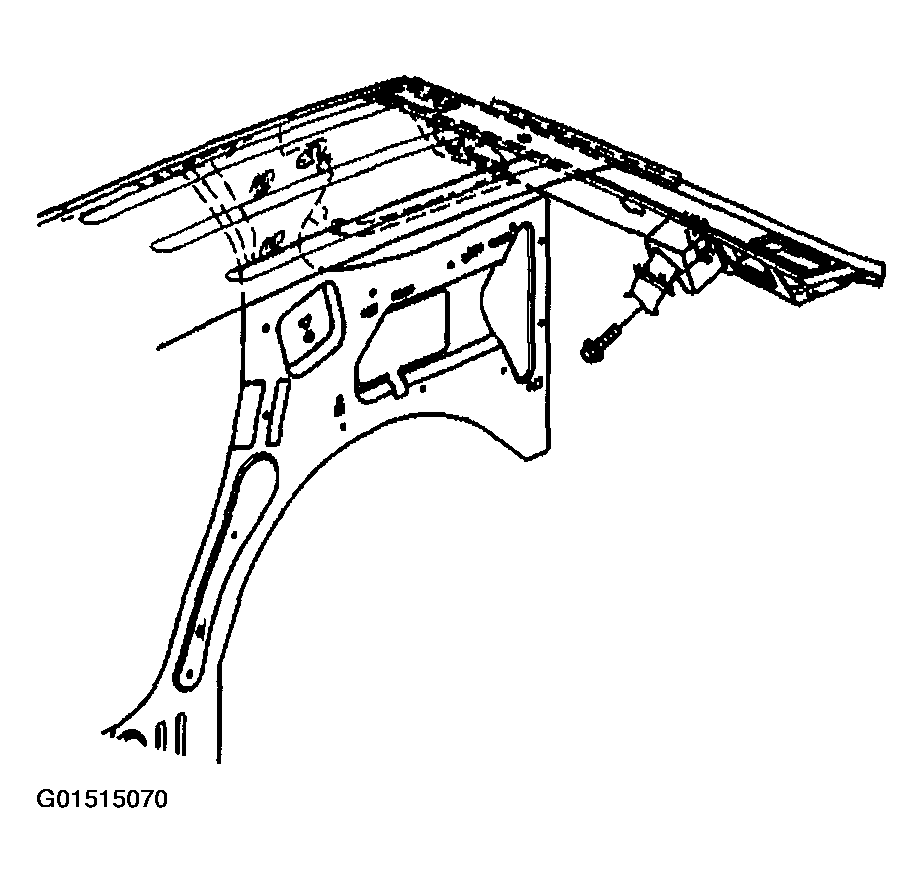

    Fig 3: Removing Procedure Of Seat Belt Retractor - Center Rear (3 Of 4)
    G01515070Courtesy of GENERAL MOTORS CORP.
  4. Remove the rear seat center belt retractor from the rear roof rail panel.

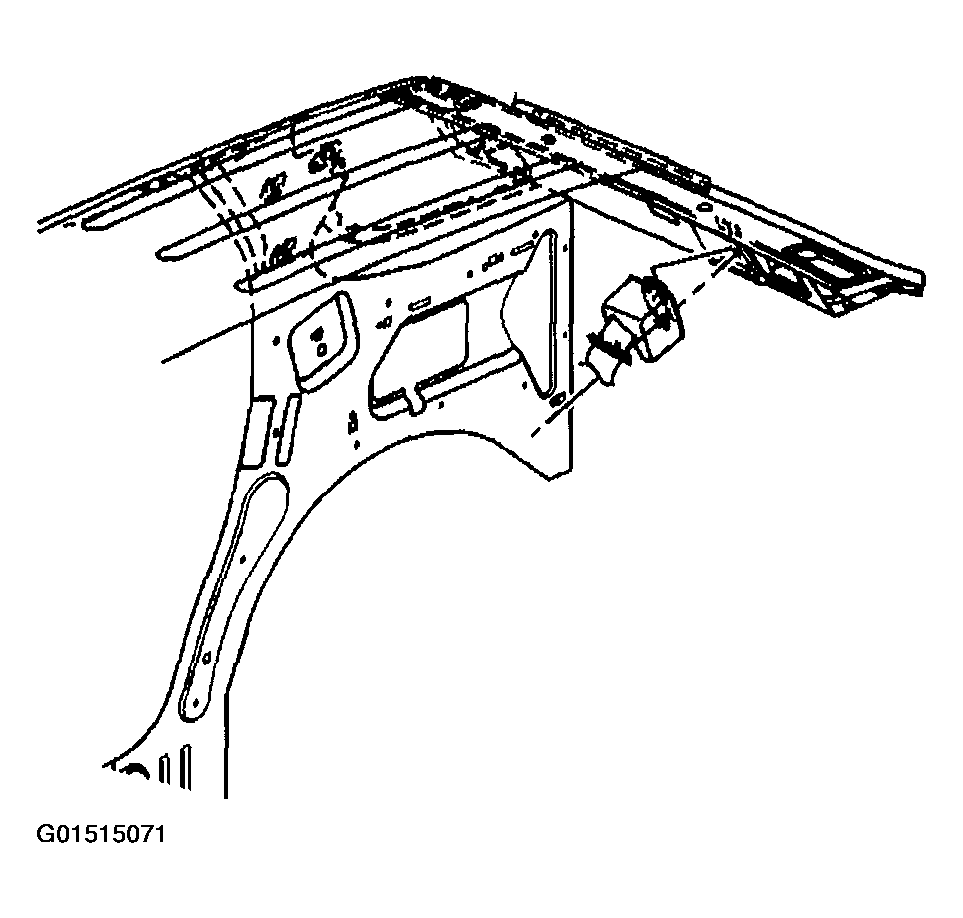

    Fig 4: Removing Procedure Of Seat Belt Retractor - Center Rear (4 Of 4)
    G01515071Courtesy of GENERAL MOTORS CORP.
