Removal Procedure

  1. Remove the right front seat. Refer to SEAT REPLACEMENT -- BUCKET .
  2. Remove the front seat cushion inner trim panel. Refer to SEAT CUSHION INNER TRIM PANEL REPLACEMENT -- FRONT .
  3. Remove the nut from the seat belt buckle anchor stud.

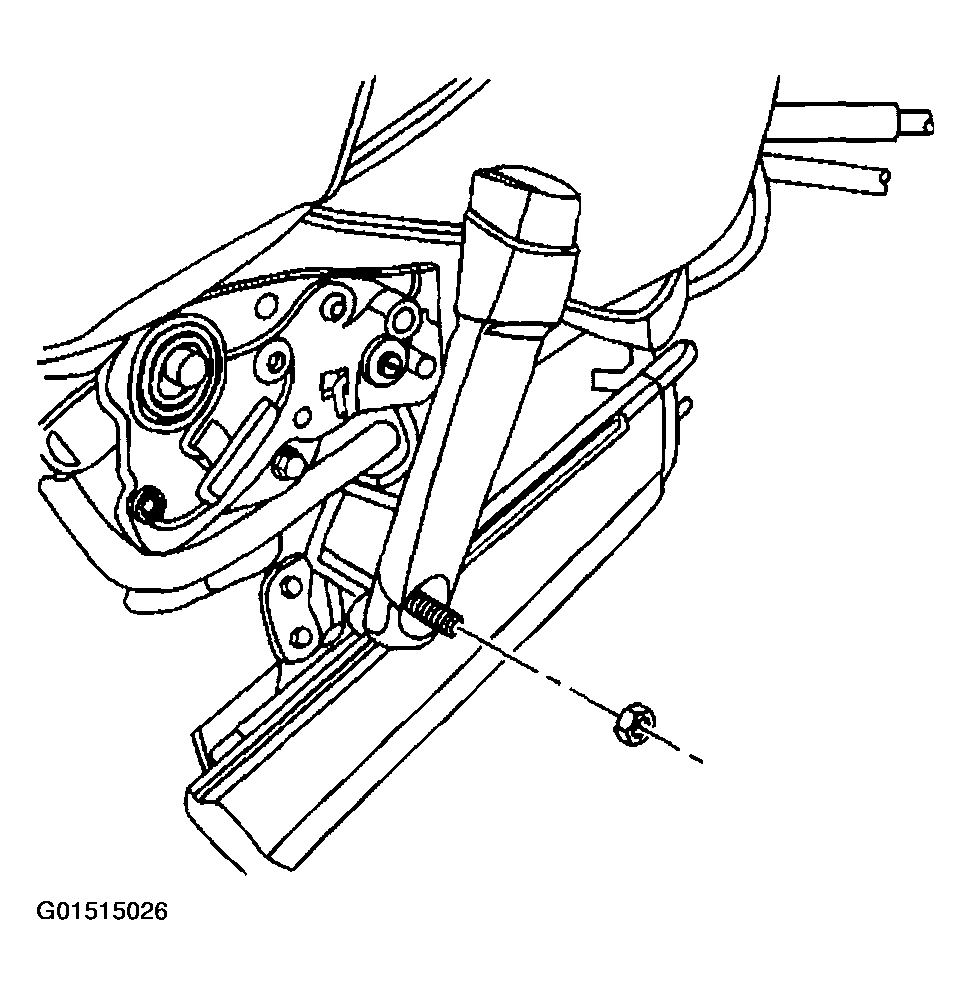

    Fig 1: Removing Procedure Of Seat Belt Buckle - Right Front (1 Of 2)
    G01515026Courtesy of GENERAL MOTORS CORP.
  4. Remove the seat belt buckle from the right front seat.

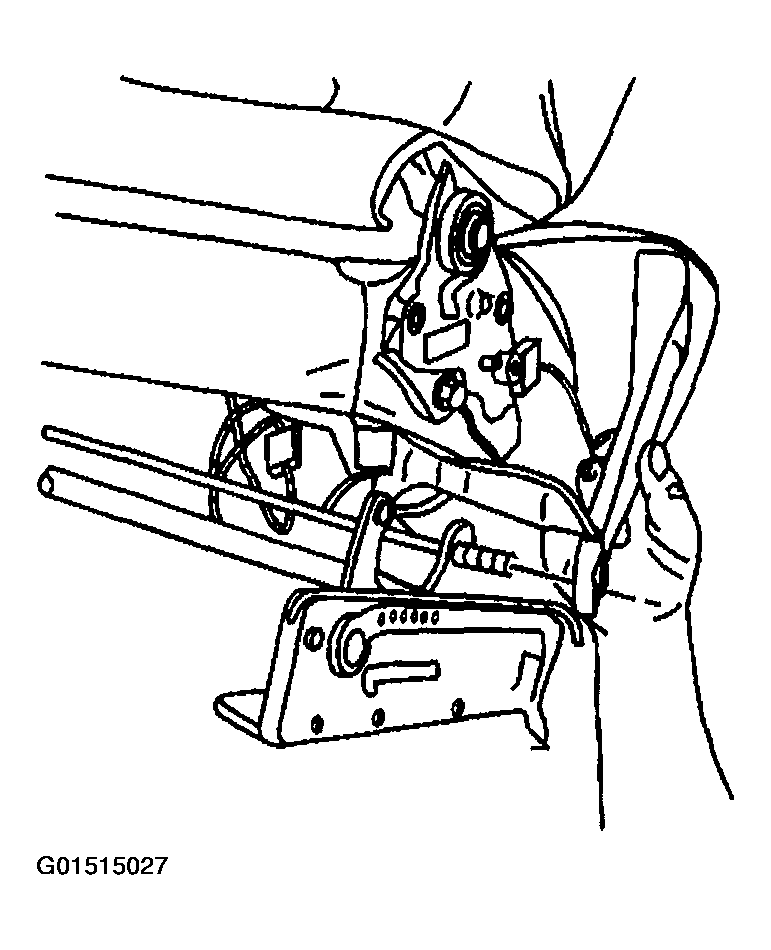

    Fig 2: Removing Procedure Of Seat Belt Buckle - Right Front (2 Of 2)
    G01515027Courtesy of GENERAL MOTORS CORP.
