Installation Procedure

  1. Install the rear seat belt buckle to the right and/or left rear seat belt anchor pulling the seat belt buckle through the slot in the rear seat cushion.

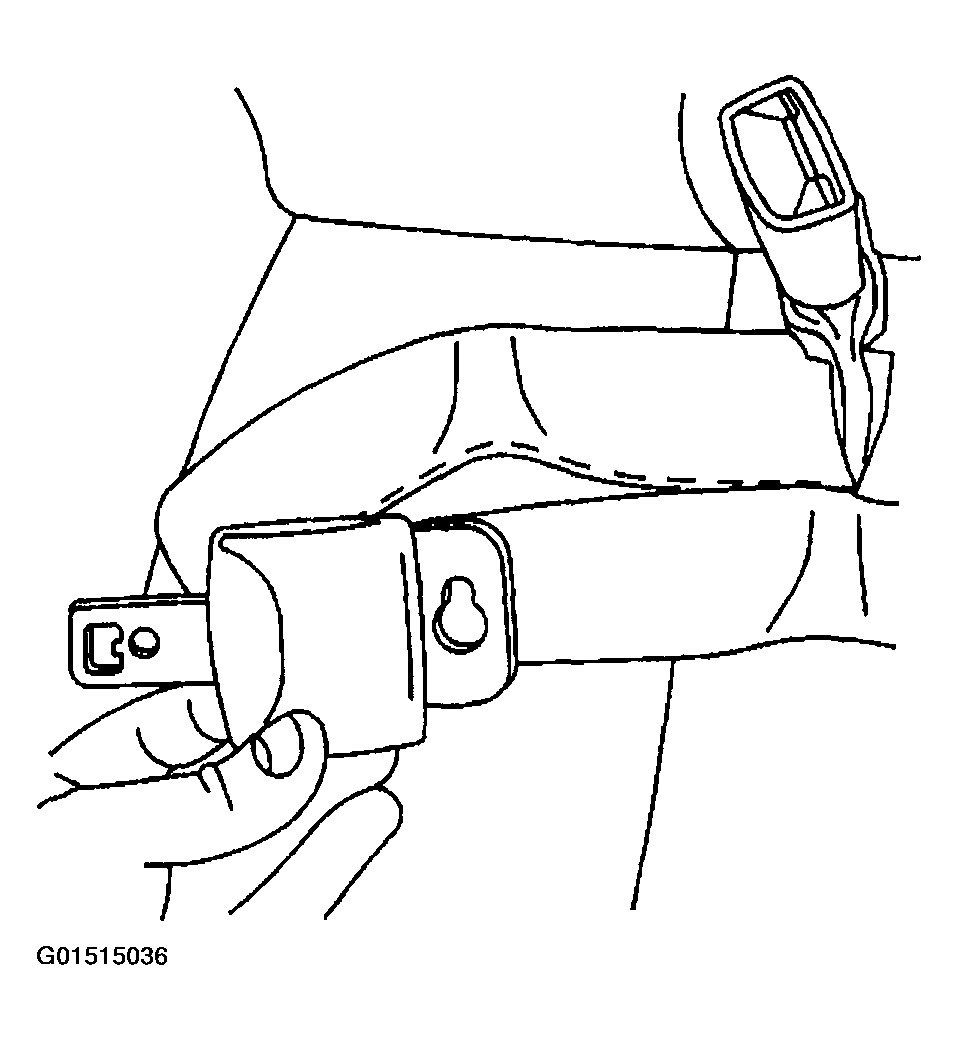

    Fig 1: Installing Procedure Of Seat Belt Buckle - Rear Split Bench (1 Of 2)
    G01515036Courtesy of GENERAL MOTORS CORP.
  2. Install the bolt to the right and/or left rear bench seat belt buckle anchor.

    Tighten

    Tighten the right and/or left rear seat belt buckle anchor bolt to 42 N.m (31 lb ft).

  3. Install the rear bench seat trim.
  4. Install the right and/or left rear split bench seat to the vehicle. Refer to SEAT REPLACEMENT -- REAR 50-50 SPLIT .

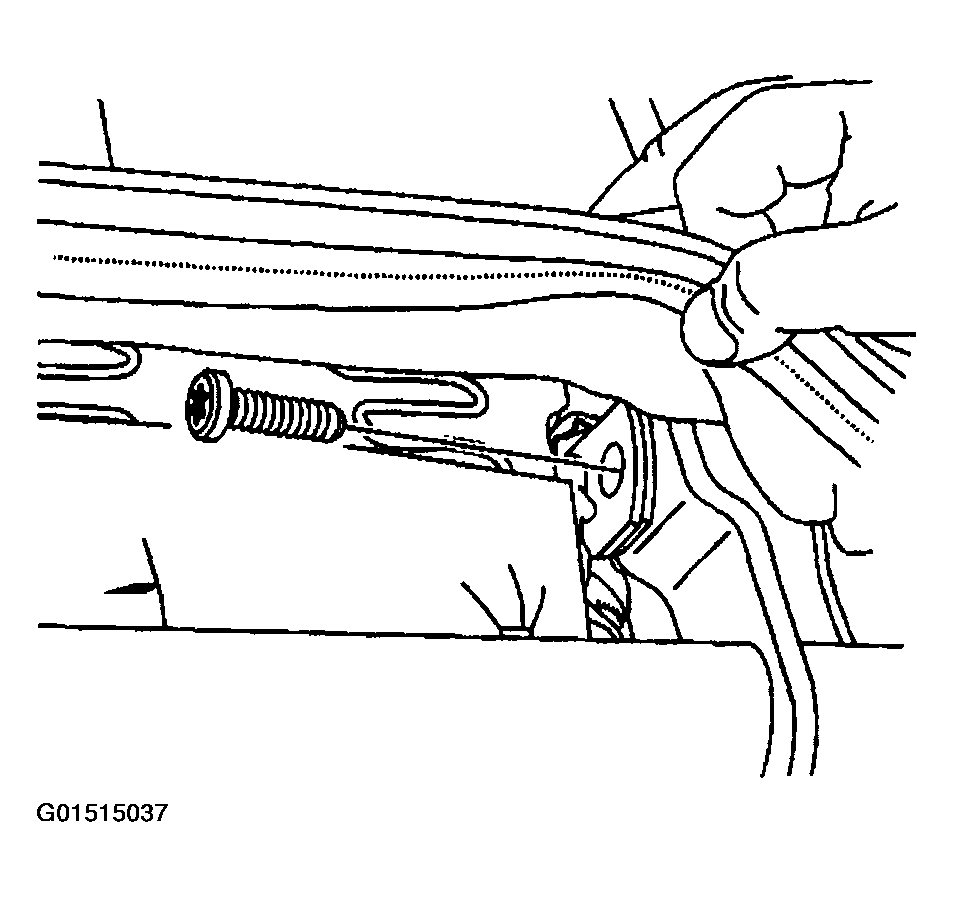

    Fig 2: Installing Procedure Of Seat Belt Buckle - Rear Split Bench (2 Of 2)
    G01515037Courtesy of GENERAL MOTORS CORP.
