Right Lift Window Latch Connector End View (Pontiac)

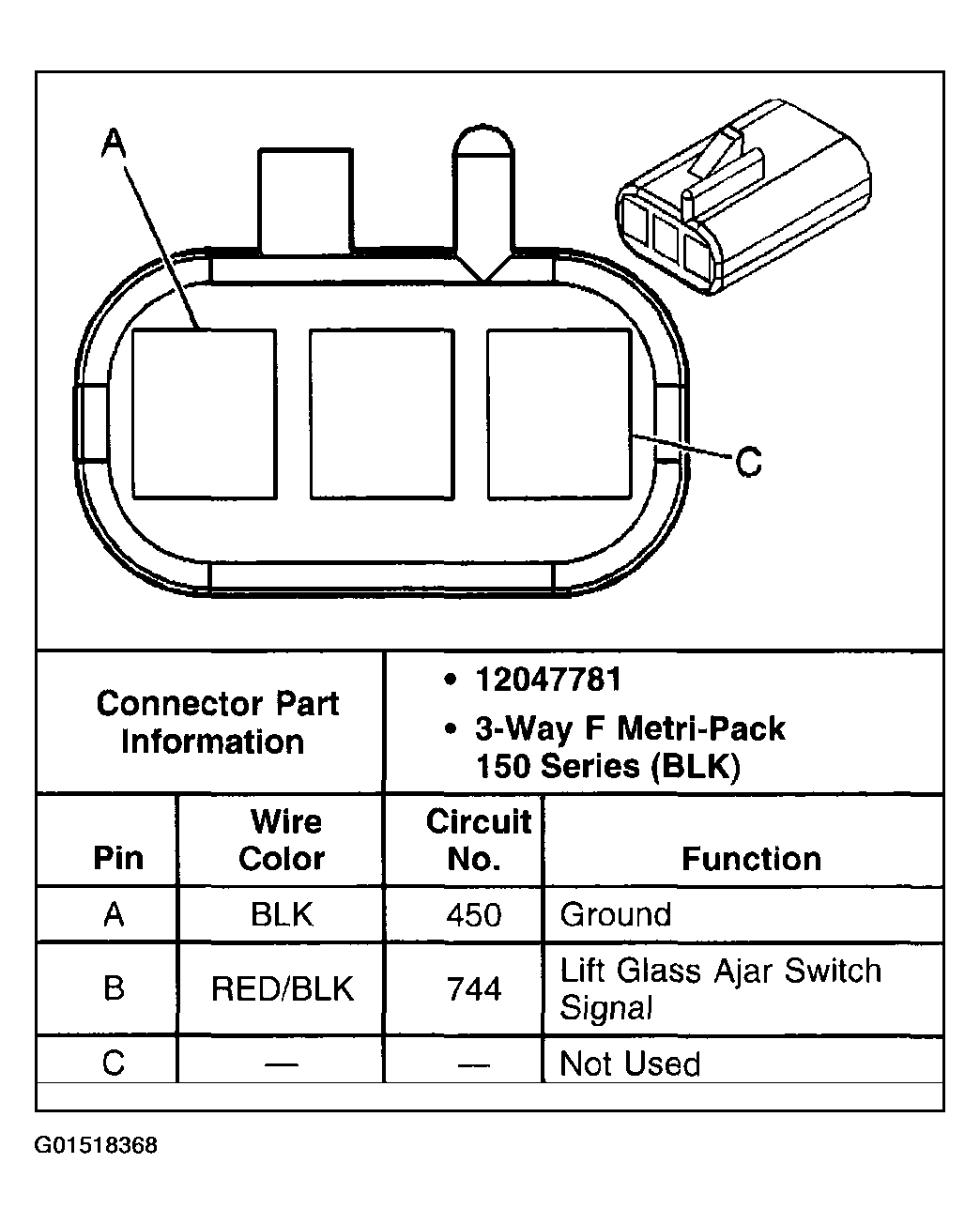

Fig 1: Right Lift Window Latch (Pontiac)

G01518368

Courtesy of GENERAL MOTORS CORP.
