Left Lift Window Latch Connector End View (Pontiac)

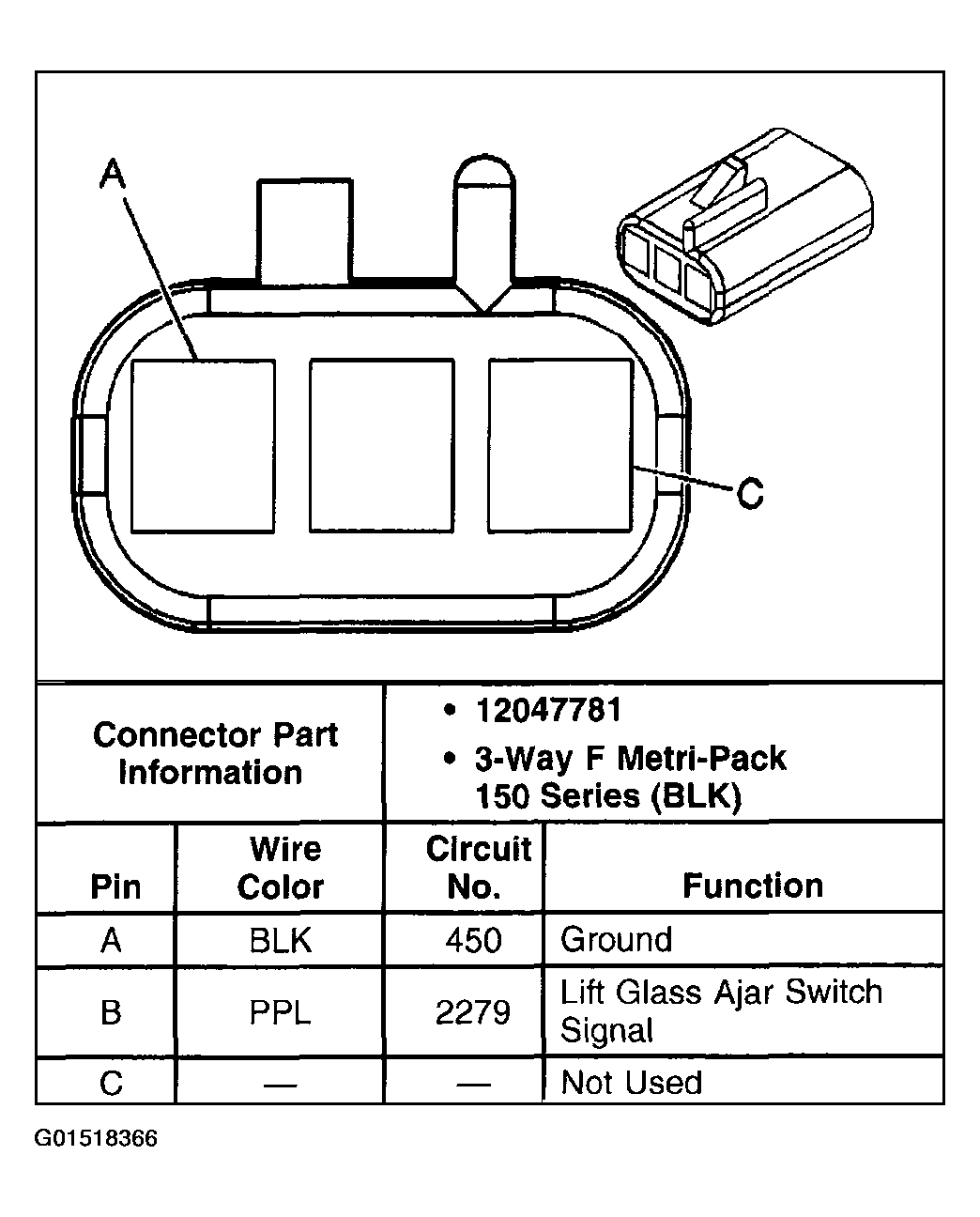

Fig 1: Left Lift Window Latch (Pontiac)

G01518366

Courtesy of GENERAL MOTORS CORP.
