I/P Switch Assembly Connector End View C1 (Pontiac)

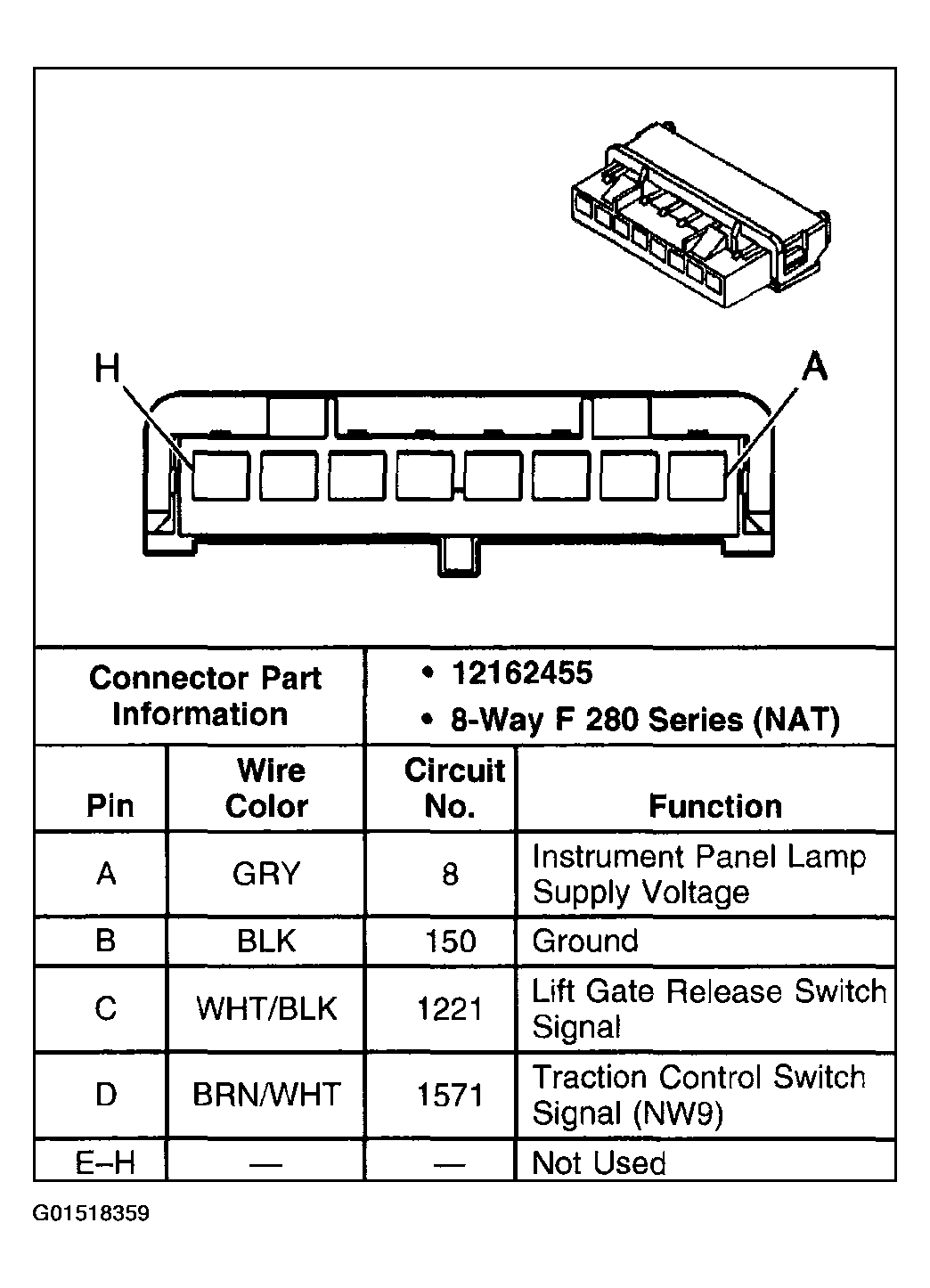

Fig 1: I/P Switch Assembly C1 (Pontiac)

G01518359

Courtesy of GENERAL MOTORS CORP.

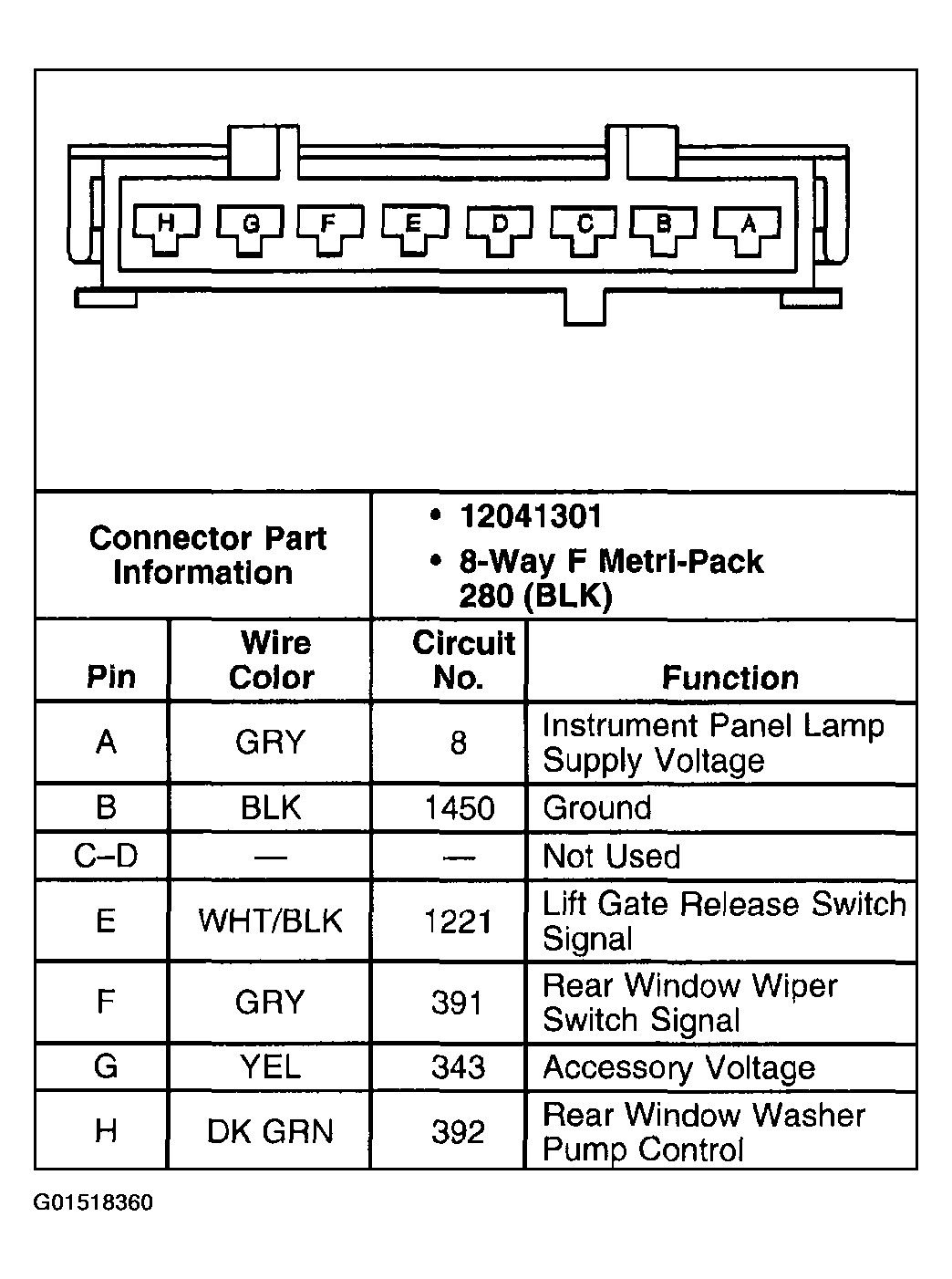

Fig 1: I/P Switch Assembly C1 (Pontiac)

G01518360

Courtesy of GENERAL MOTORS CORP.
