Head Up Display (HUD) Connector End View

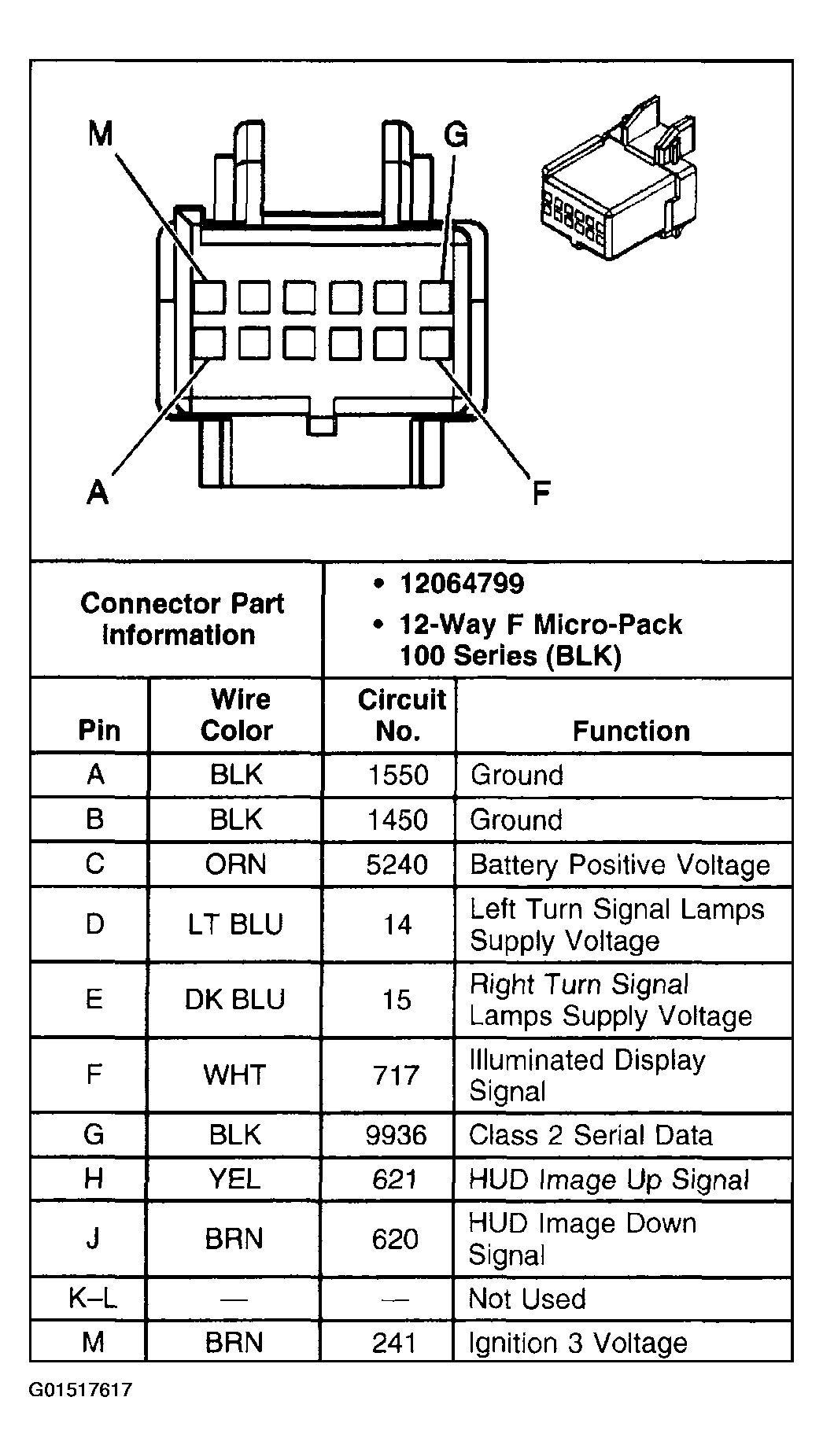

Fig 1: Head Up Display (HUD)

G01517617

Courtesy of GENERAL MOTORS CORP.
