Endgate Lock Cylinder Switch Connector End View (Pontiac)

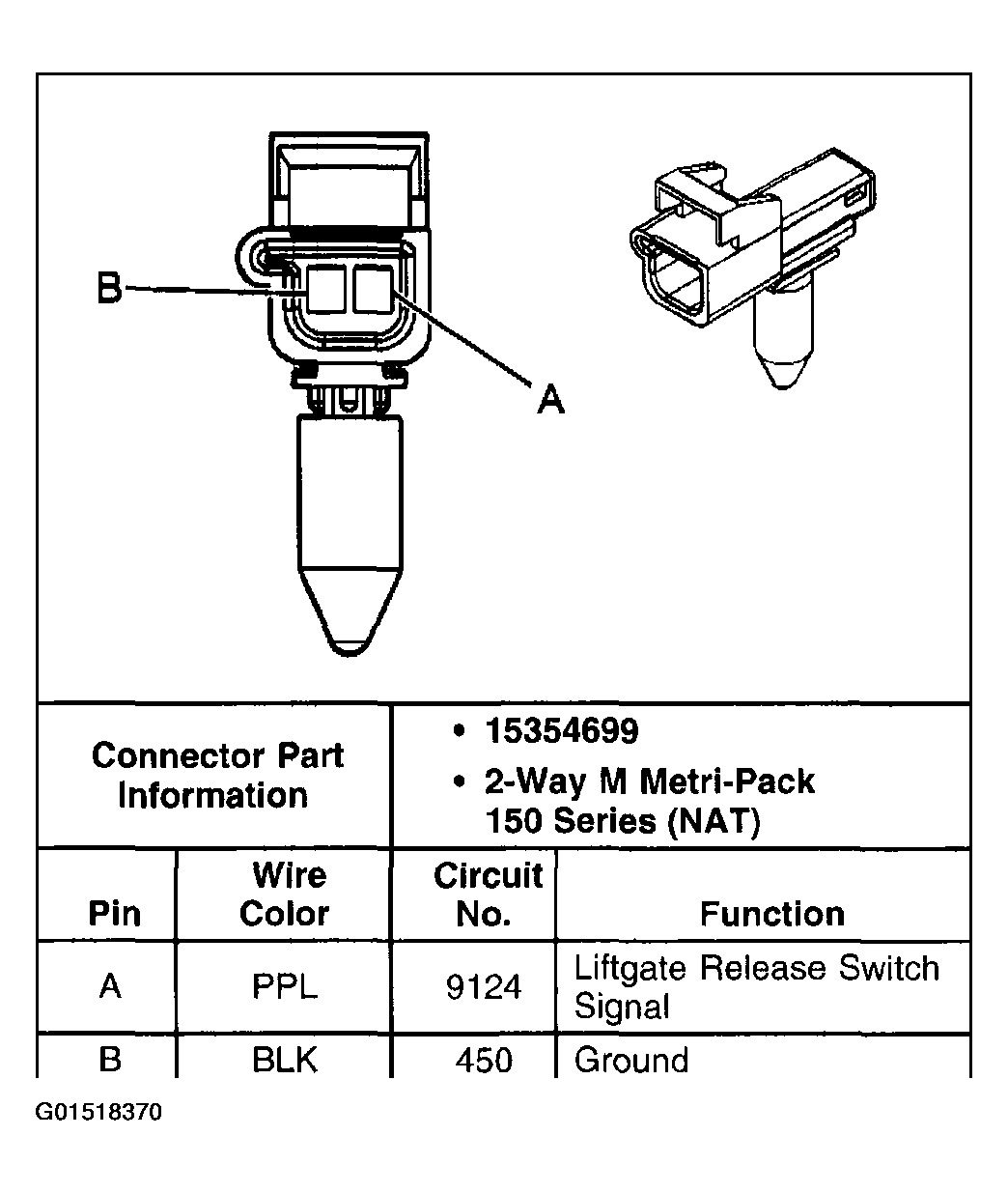

Fig 1: Endgate Lock Cylinder Switch (Pontiac)

G01518370

Courtesy of GENERAL MOTORS CORP.
