A/T In-Line 20-Way Connector End View - Transmission Side

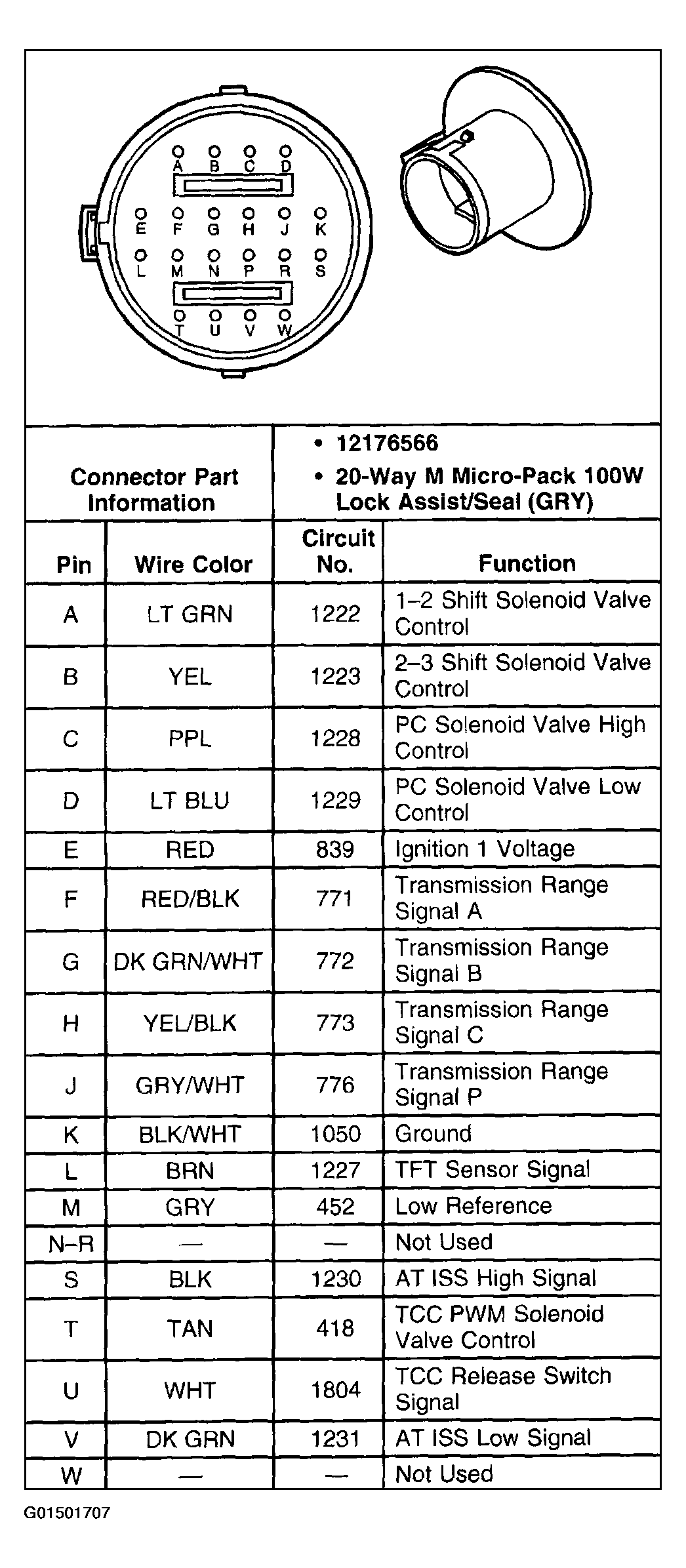

Fig 1: A/T In-Line 20-Way Connector - Transmission Side

G01501707

Courtesy of GENERAL MOTORS CORP.
