Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the heated seat switch to the front floor console trim plate, pressing into place until fully seated.
  2. Connect the electrical connector to the console wiring harness.
  3. Install the trim plate to the front floor console. Refer to TRIM PLATE REPLACEMENT -- FRONT FLOOR CONSOLE .

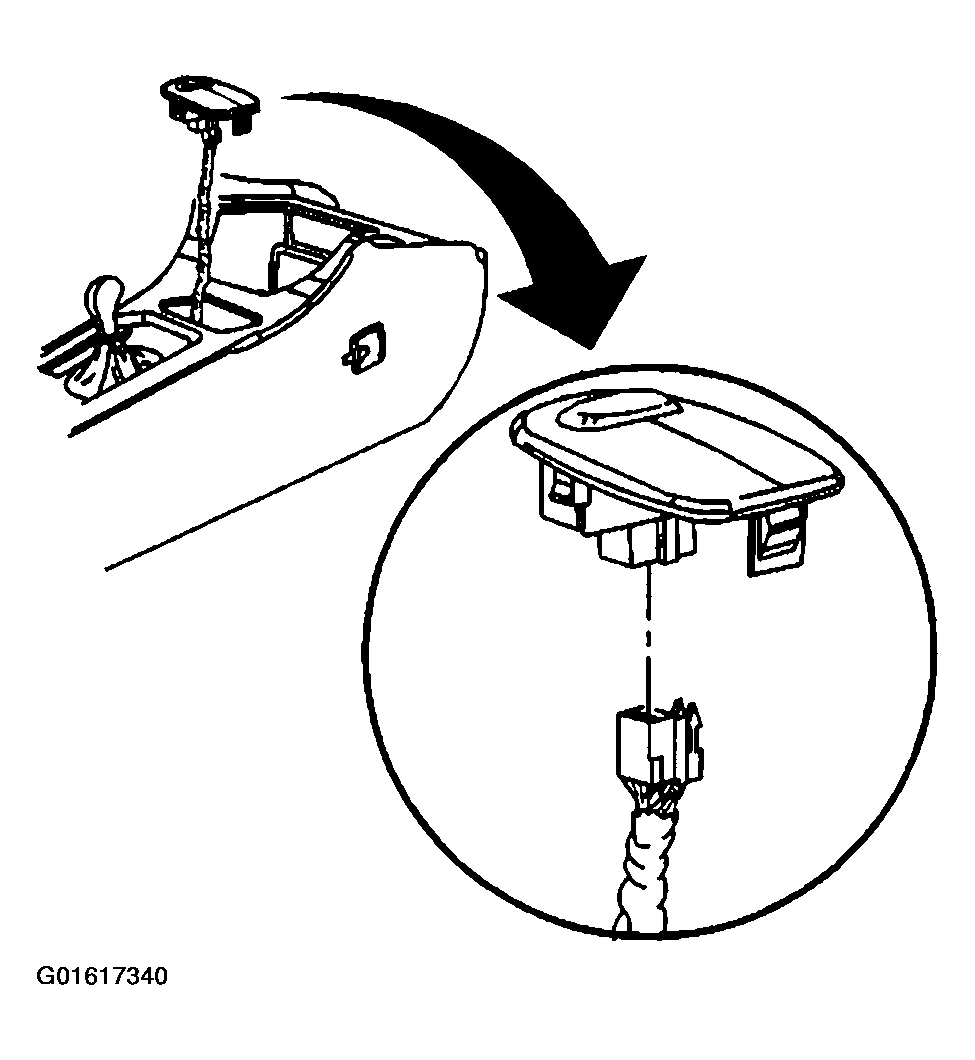

    Fig 1: Front Heated Switch
    G01617340Courtesy of GENERAL MOTORS CORP.
