Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the inside door handle bezel. Refer to Handle Bezel Replacement - Inside  .
  2. Remove the power door lock switch by releasing the lock tabs on the door handle bezel with a small flat bladed tool.

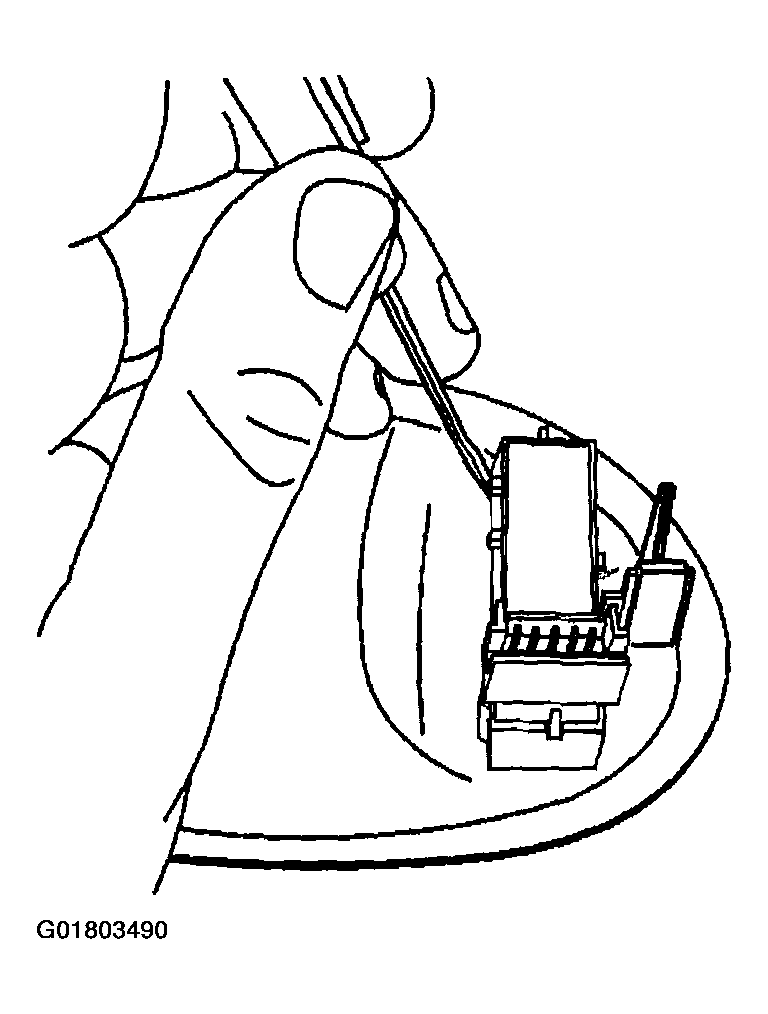

    Fig 1: Removing Power Door Lock Switch
    G01803490Courtesy of GENERAL MOTORS CORP.
