Scan Tool Data List

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

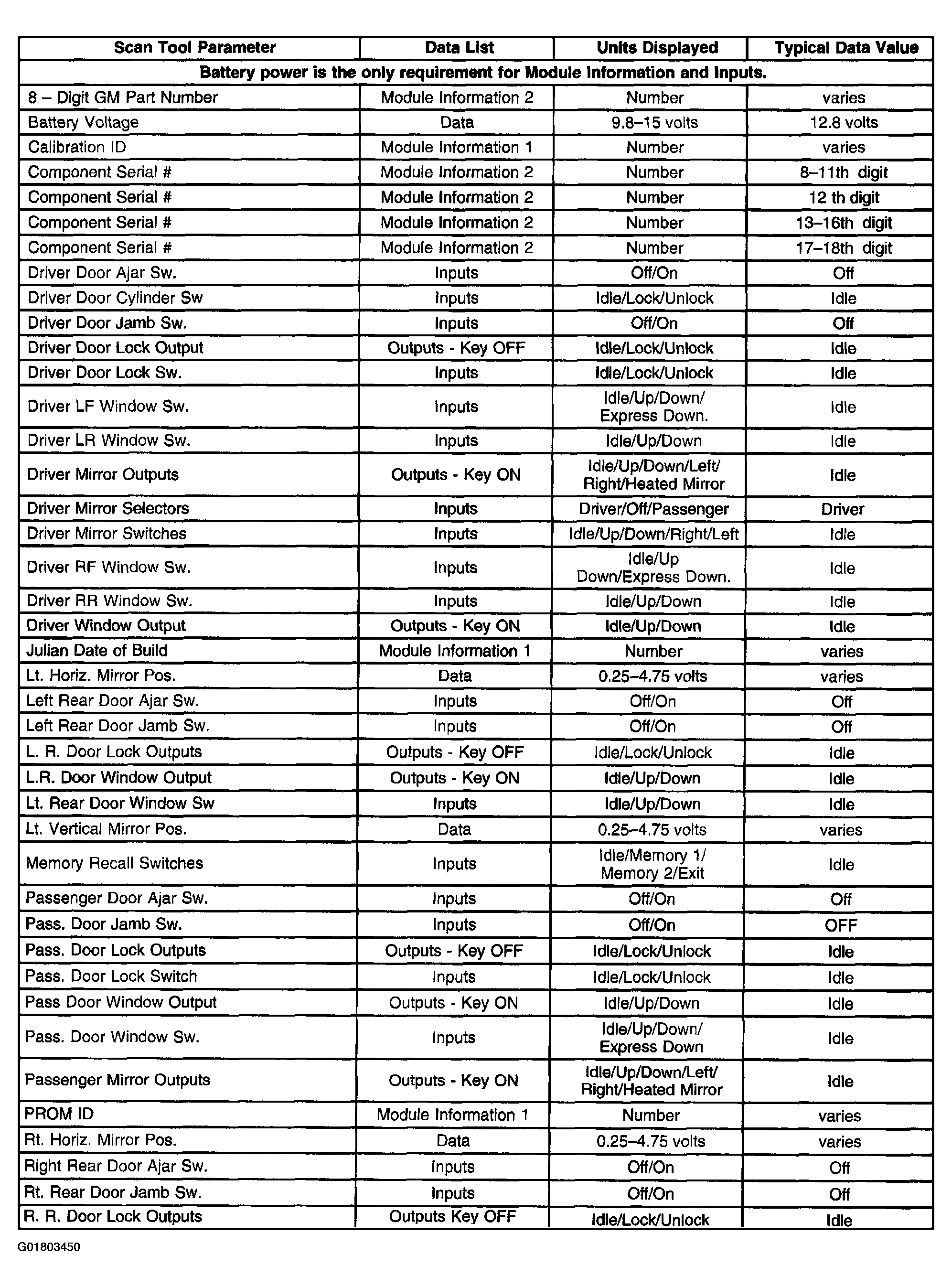

Fig 1: Driver Door Module (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Driver Door Module (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

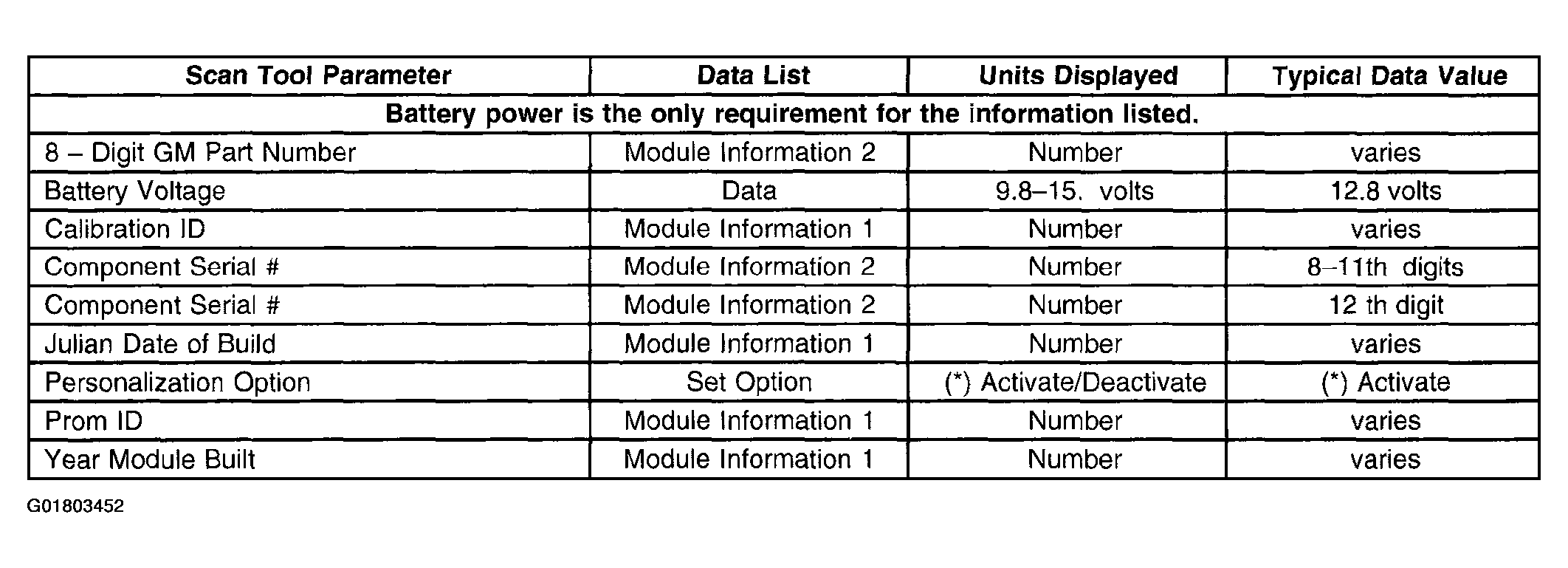

Fig 3: Dash Integration Module

Courtesy of GENERAL MOTORS CORP.
