Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the heated seat switch in the switch assembly.

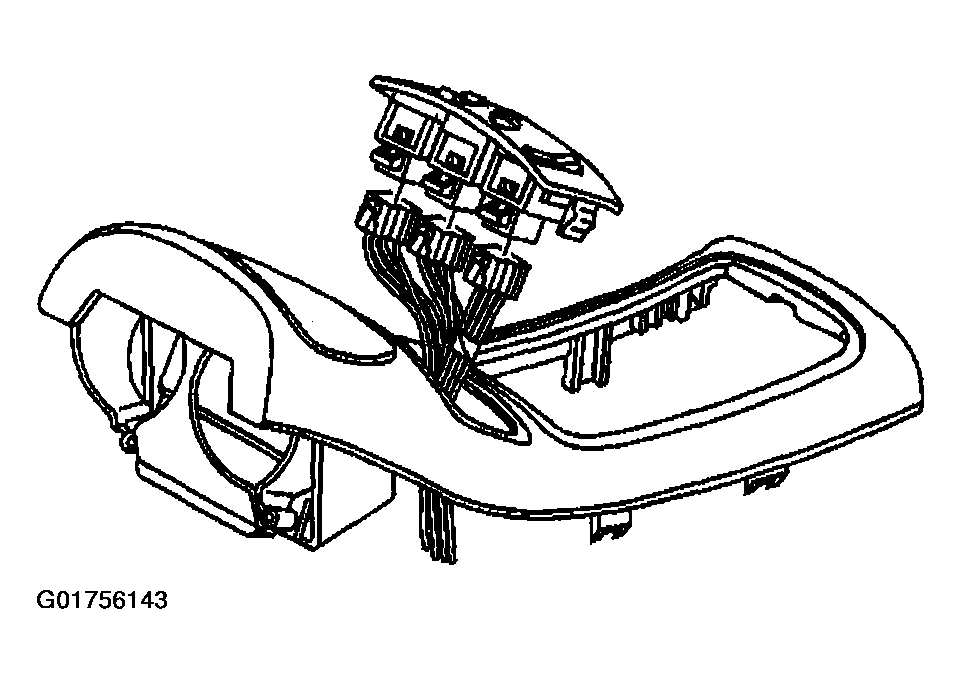

    2. Fig 1: Identifying Front Heated Seat Switch
    G01756143Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector to the appropriate heated seat switch:
    • The natural connector to the driver switch
    • The black connector to the passenger switch
  3. Align the switch assembly to the console trim plate and snap the assembly into position to secure.
