Scan Tool Output Controls

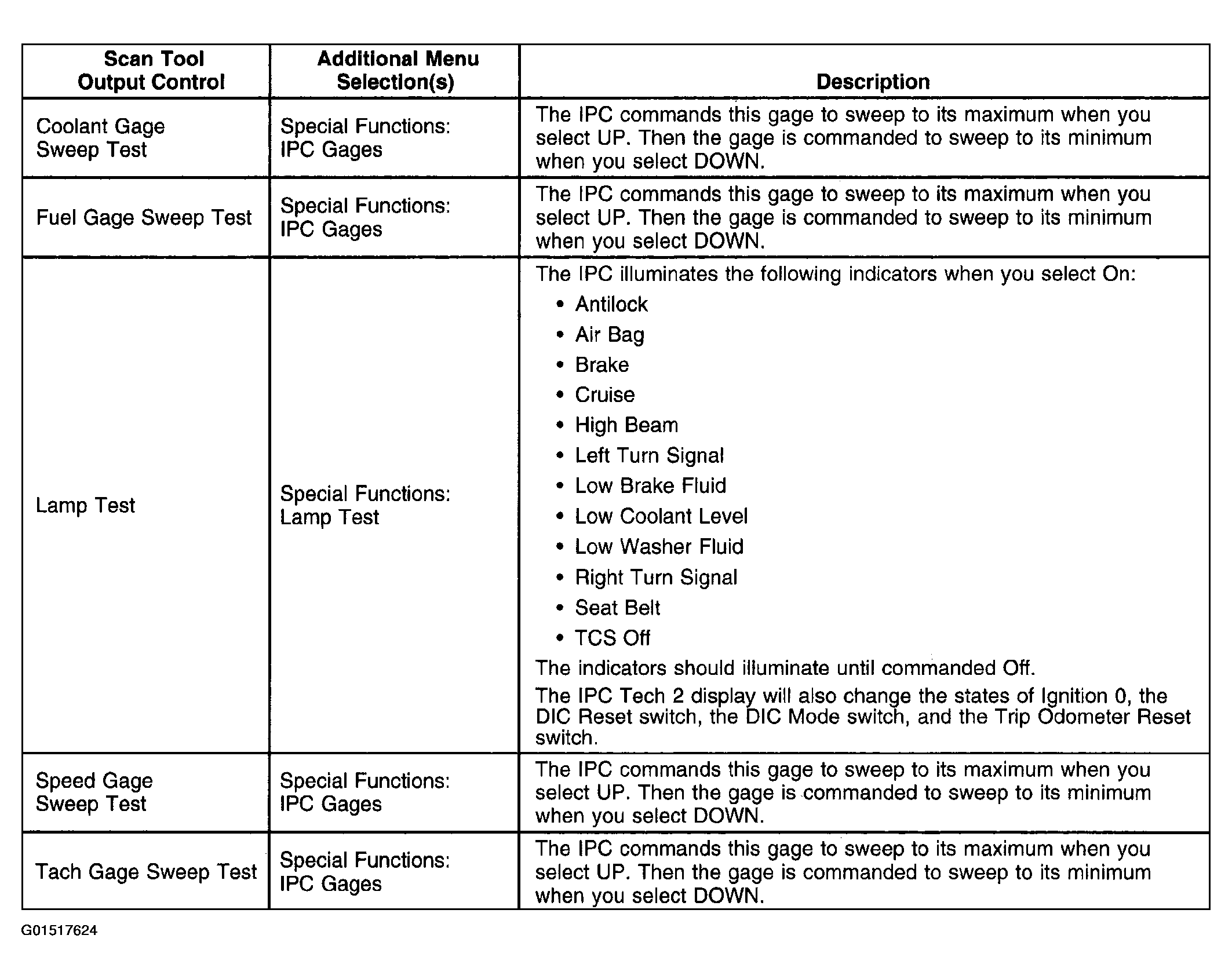

Fig 1: Scan Tool Output Controls

G01517624

Courtesy of GENERAL MOTORS CORP.
