Removal Procedure

  1. Record all of the customer's radio station presets.
  2. Turn off all the lamps and accessories.
  3. Turn the ignition OFF.
  4. Remove the battery ground (negative) cable and bolt from the battery.

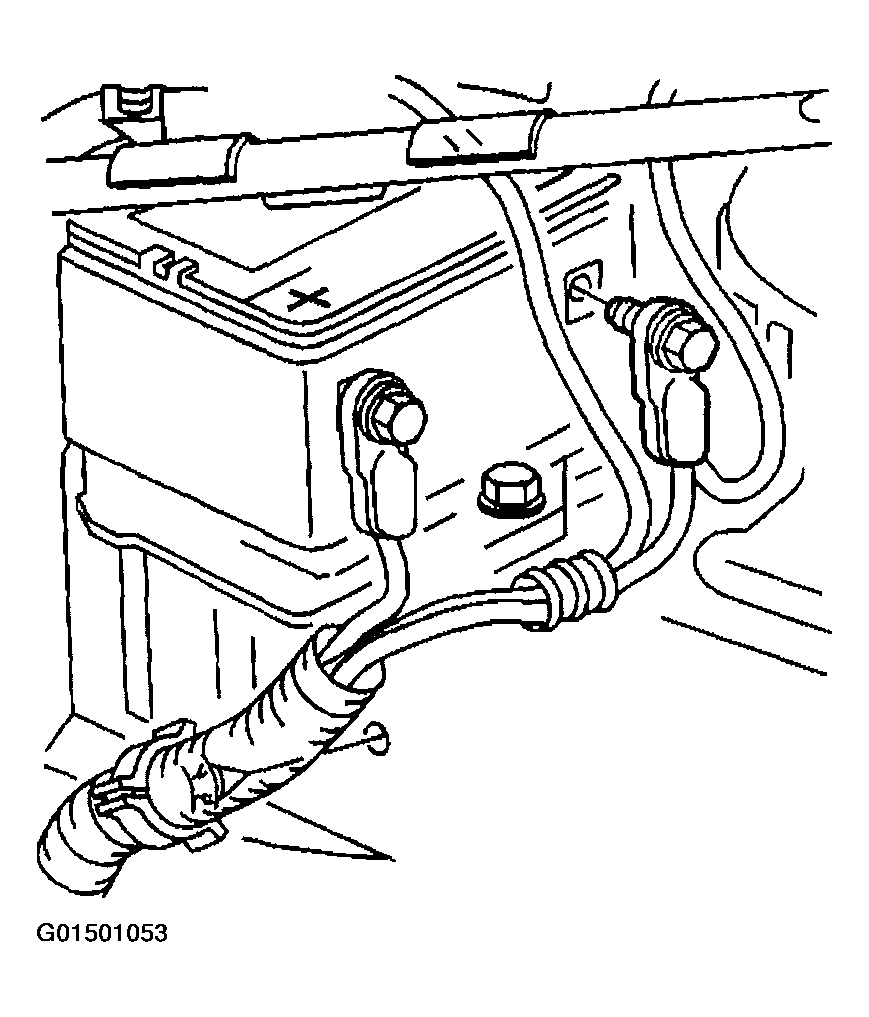

    Fig 1: Removing Battery Ground (Negative) Cable And Bolt
    G01501053Courtesy of GENERAL MOTORS CORP.
