Removal Procedure

  1. Place the rear window in the full down position.
  2. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR (AZTEK)  or TRIM PANEL REPLACEMENT - SIDE REAR DOOR (RENDEZVOUS)  .
  3. Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - REAR DOOR  .
  4. Remove the outer belt sealing strip. Refer to SEALING STRIP REPLACEMENT - REAR DOOR WINDOW BELT OUTER  .
  5. Remove the screw from the rear window channel.
  6. Remove the channel from the rear door.

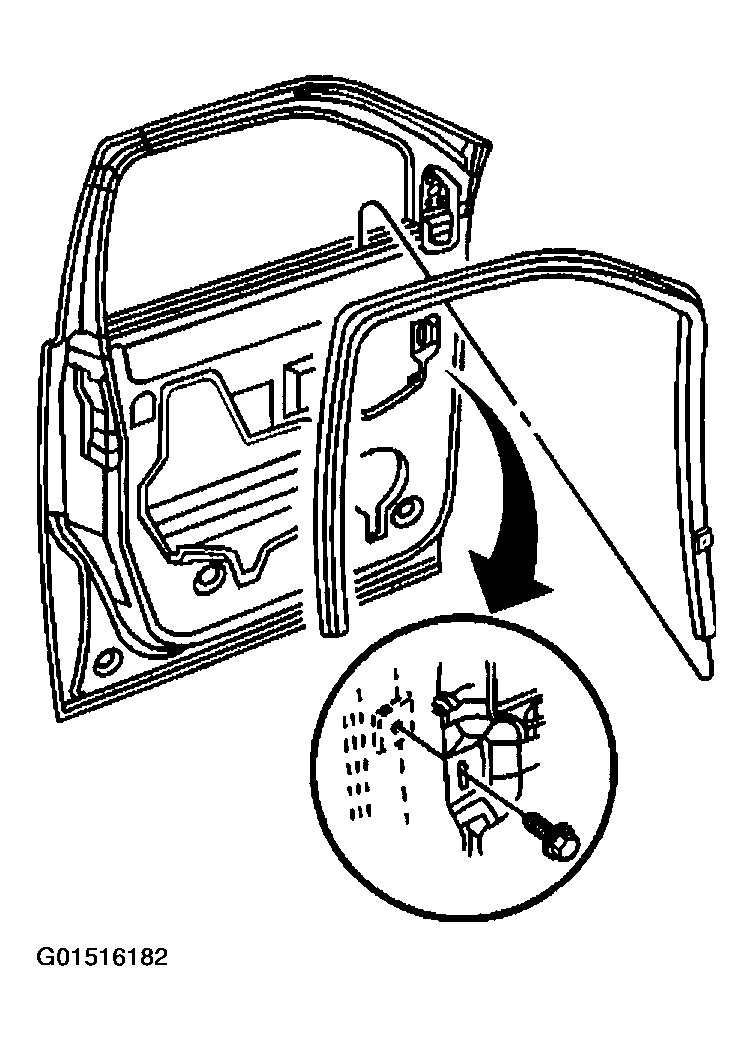

    Fig 1: Removing Rear Door Window Weatherstrip
    G01516182Courtesy of GENERAL MOTORS CORP.
