Removal Procedure

  1. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (AZTEK)  or TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (RENDEZVOUS)  .
  2. Remove the gasket from the inside door handle if equipped.
  3. Remove the front door water deflector from the front door inner panel.
  4. Pull the electrical connectors through the slit in the door handle cut out.

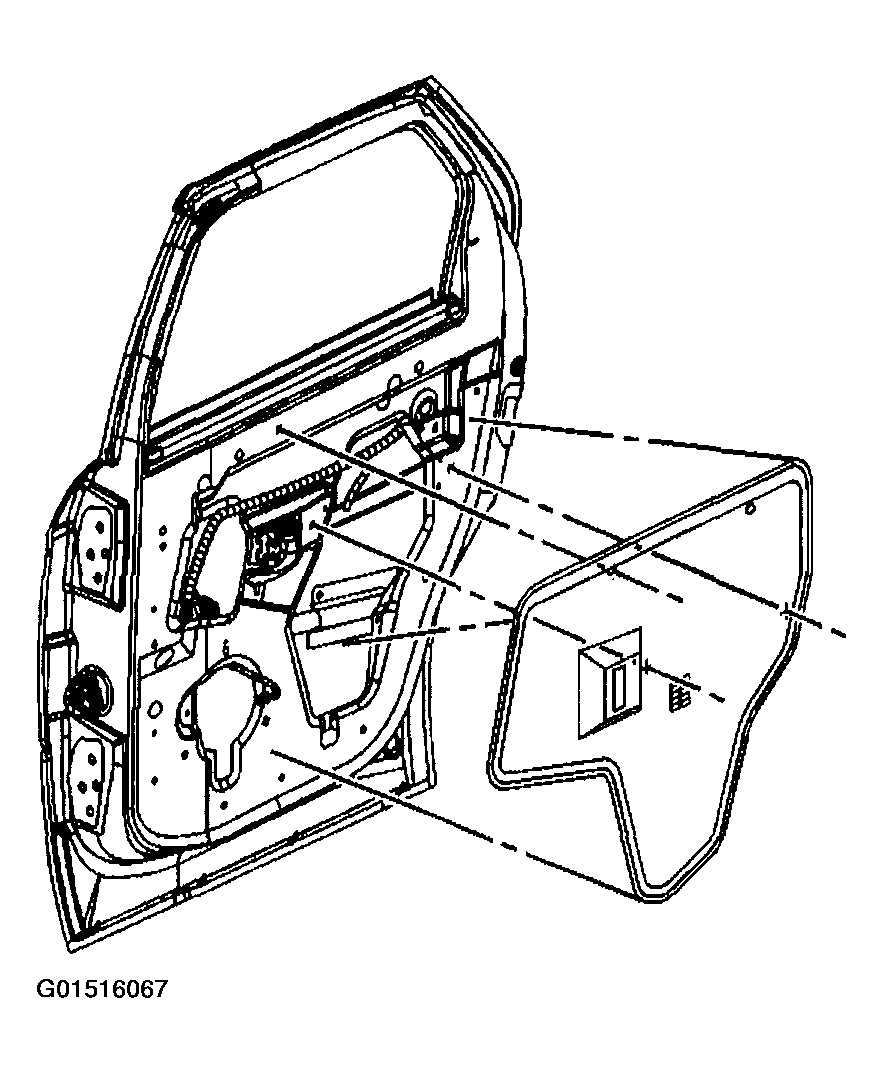

    Fig 1: Removing Rear Door Water Deflector
    G01516067Courtesy of GENERAL MOTORS CORP.
