Removal Procedure

  1. Remove the power window switch. Refer to POWER WINDOW SWITCH REPLACEMENT - REAR DOOR (AZTEK)  or POWER WINDOW SWITCH REPLACEMENT - REAR DOOR (RENDEZVOUS)  .
  2. Remove the power door lock switch (if equipped). Refer to POWER DOOR LOCK SWITCH REPLACEMENT (AZTEK)  or POWER DOOR LOCK SWITCH REPLACEMENT (RENDEZVOUS)  .
  3. Remove the screws from the rear door trim panel.

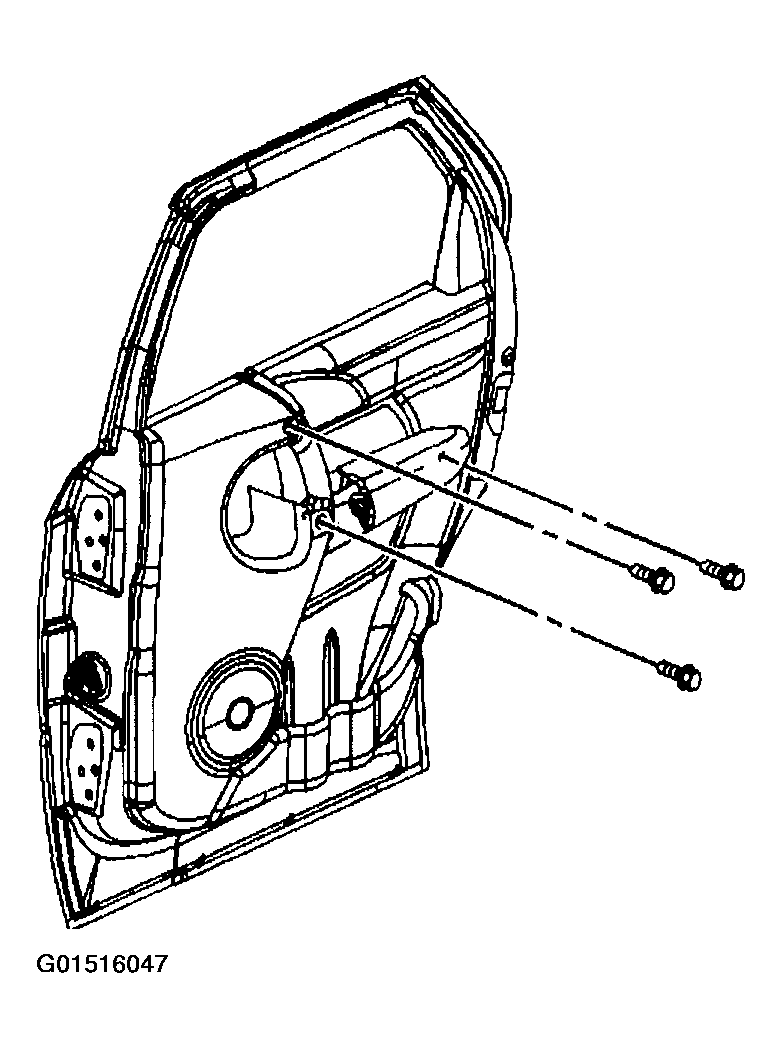

    Fig 1: Removing Side Rear Door Trim Panel (Aztek - 1 Of 2)
    G01516047Courtesy of GENERAL MOTORS CORP.
  4. Remove the rear door trim panel using J 38778.
  5. Disconnect and reroute any electrical harness or connectors.
  6. Remove the rear door trim panel from the vehicle.

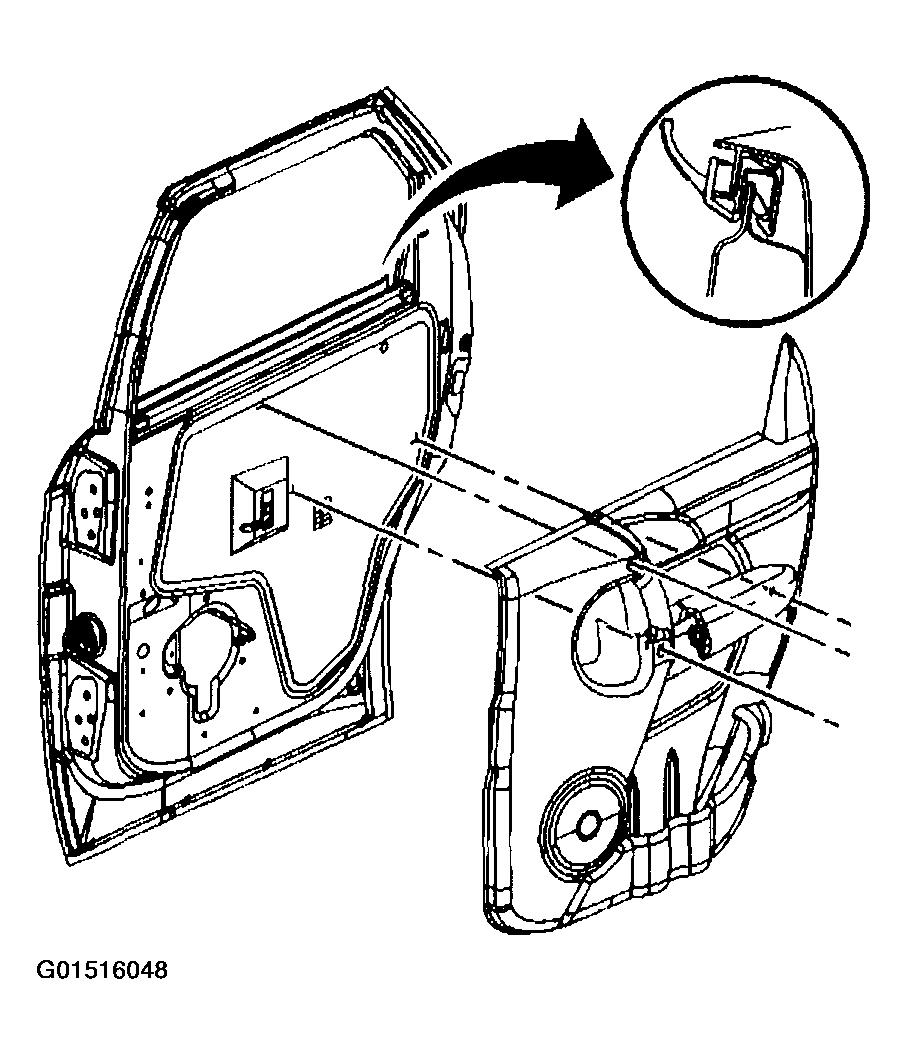

    Fig 2: Removing Side Rear Door Trim Panel (Aztek - 2 Of 2)
    G01516048Courtesy of GENERAL MOTORS CORP.
