Removal Procedure

  1. Use a small flat-bladed tool at the front of the power window control plate in order to remove the switch plate from the front door trim panel
  2. Disconnect the electrical connector from the power window switch.
  3. Remove the power window switch plate from the front door trim panel.
  4. Use a small flat-bladed tool in order to remove the power window switch from the switch plate

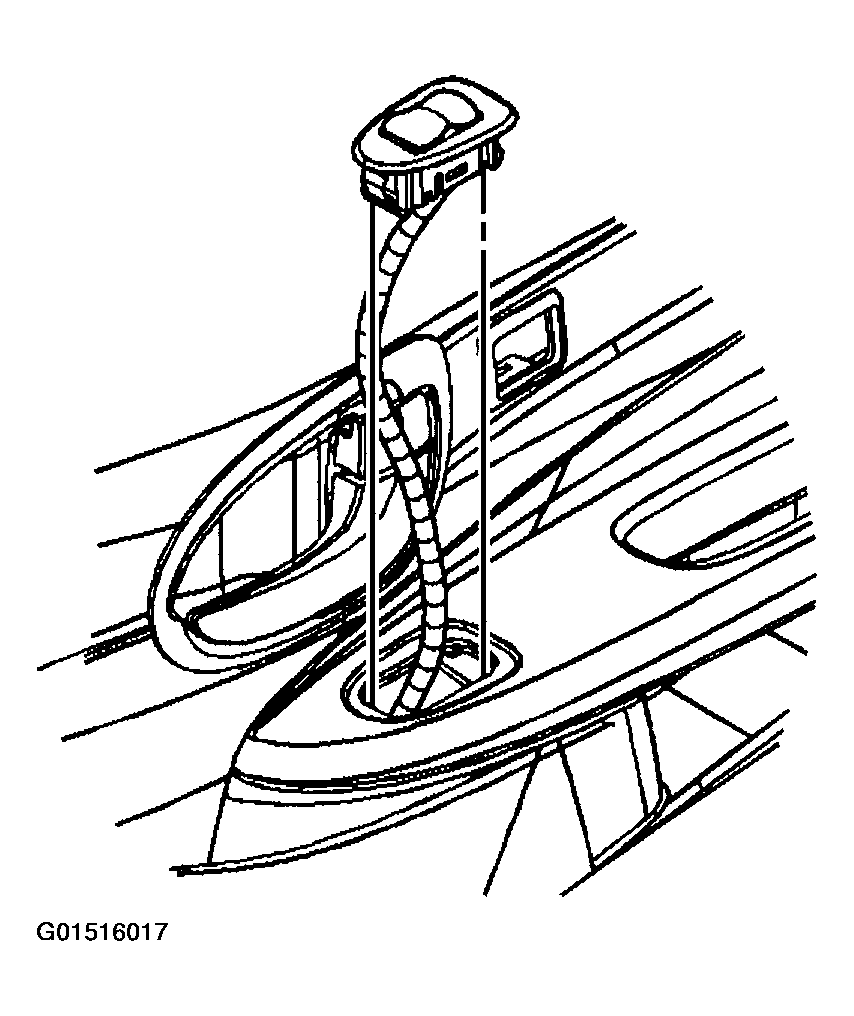

    Fig 1: Removing Right Front Power Window Switch (Rendezvous)
    G01516017Courtesy of GENERAL MOTORS CORP.
