Removal Procedure

Important:  Complete this procedure with the rear door closed at all times. Replace the broken door hinge first.

1. Open the front door.
2. Clean the mounting surfaces with a clean rag and mark the rear door hinge locations on each surface with a grease pencil or other suitable marker.
3. Remove the bolts from the door side rear door hinge.

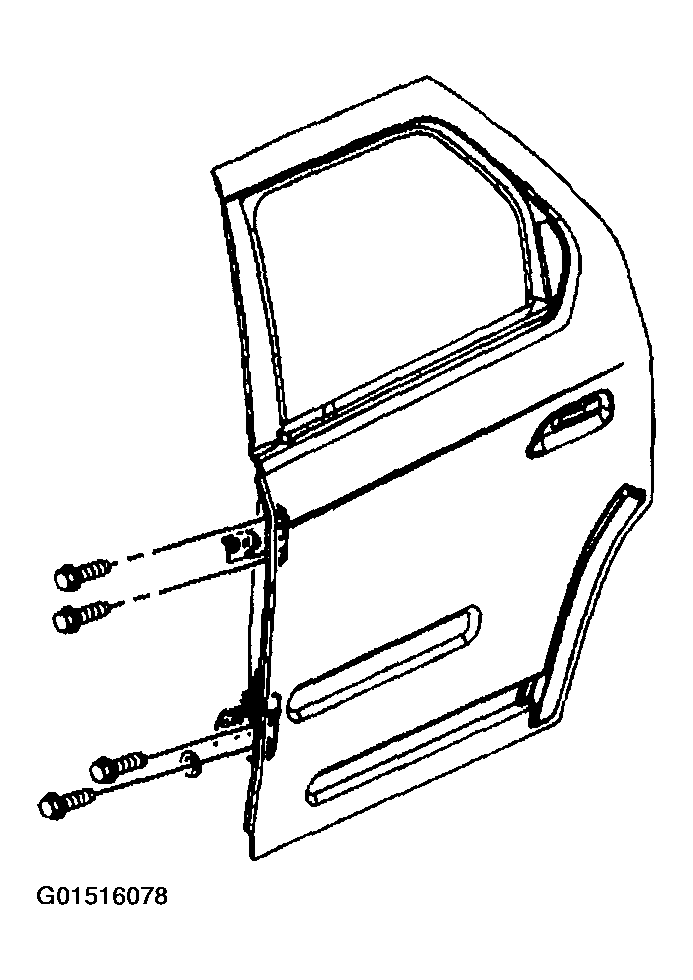

   Fig 1: Removing Rear Door Hinge (1 Of 2)

   Courtesy of GENERAL MOTORS CORP.
4. Remove the bolts from the body side rear door hinge.
5. Remove the rear door hinge from the vehicle.

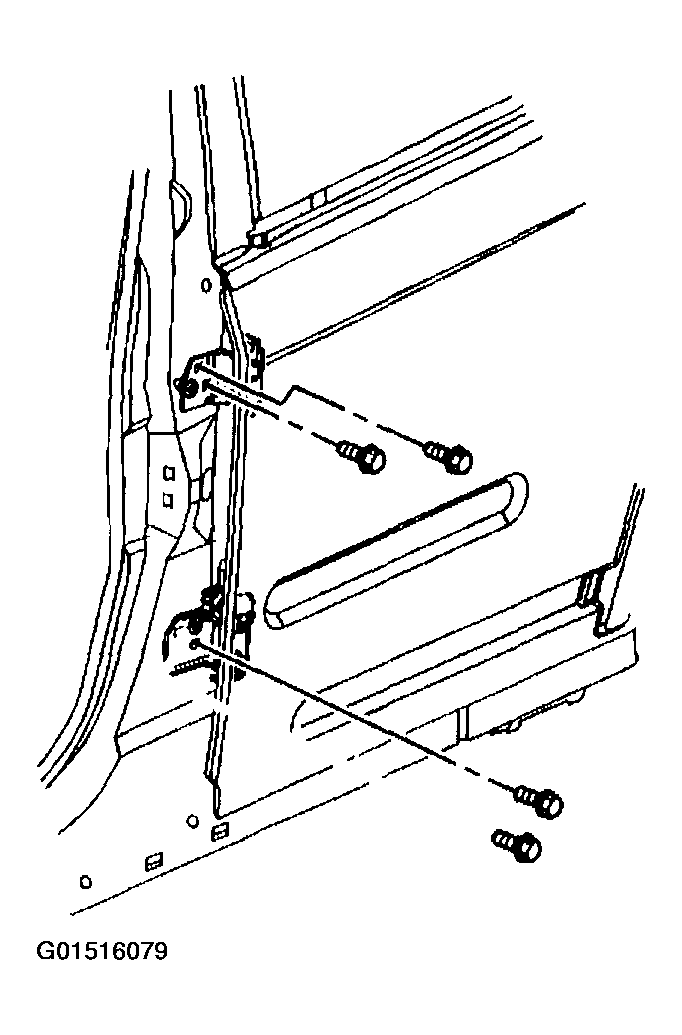

   Fig 2: Removing Rear Door Hinge (2 Of 2)

   Courtesy of GENERAL MOTORS CORP.
