Test Description

The number(s) below refer to the step number(s) on the diagnostic table.

1. 2. This step verifies that all of the power door locks, including the end gate locks are inoperative.

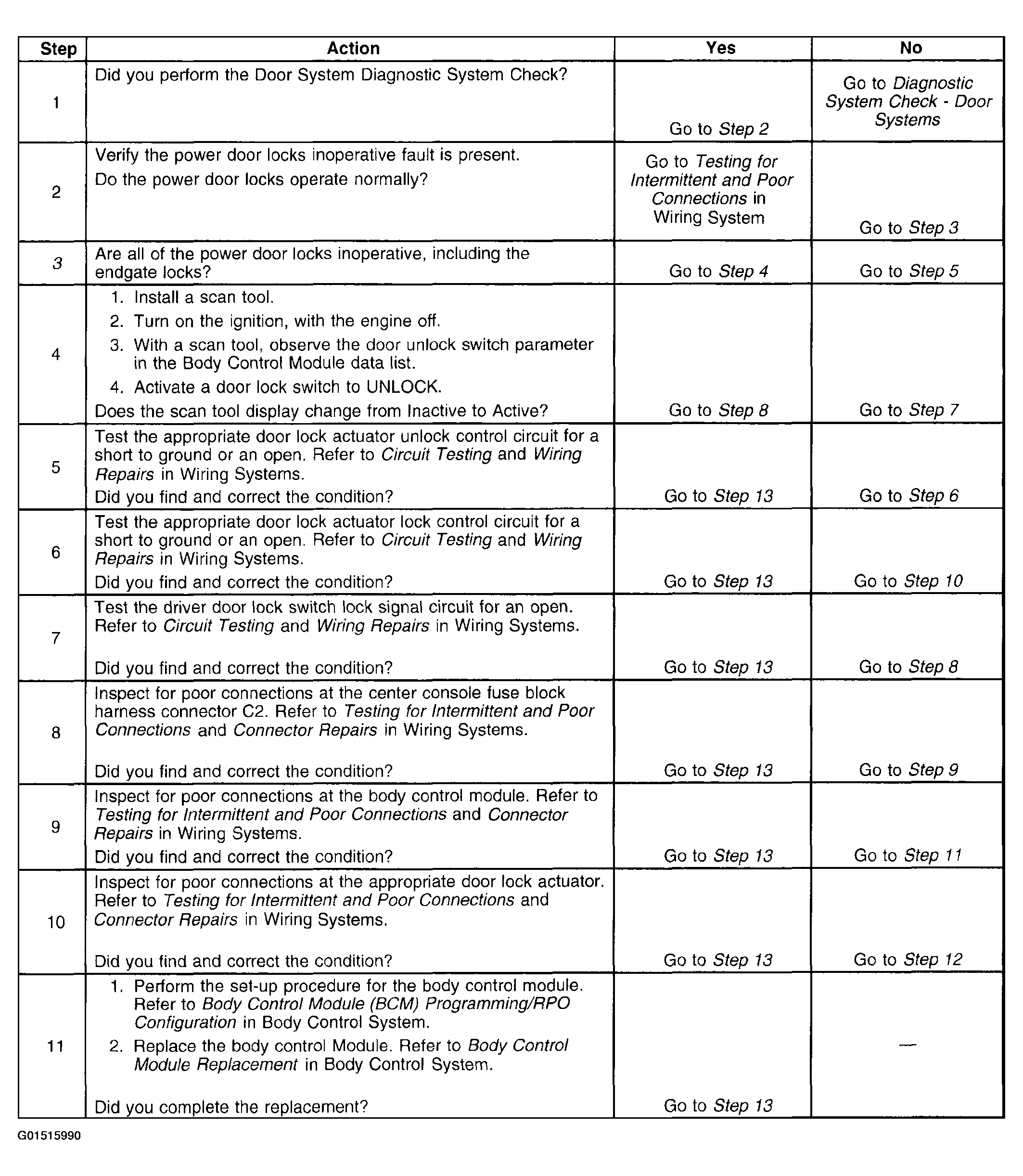

   Fig 1: Aztek Power Door Locks Inoperative Symptom Tests (Steps 1-11)

   Courtesy of GENERAL MOTORS CORP.

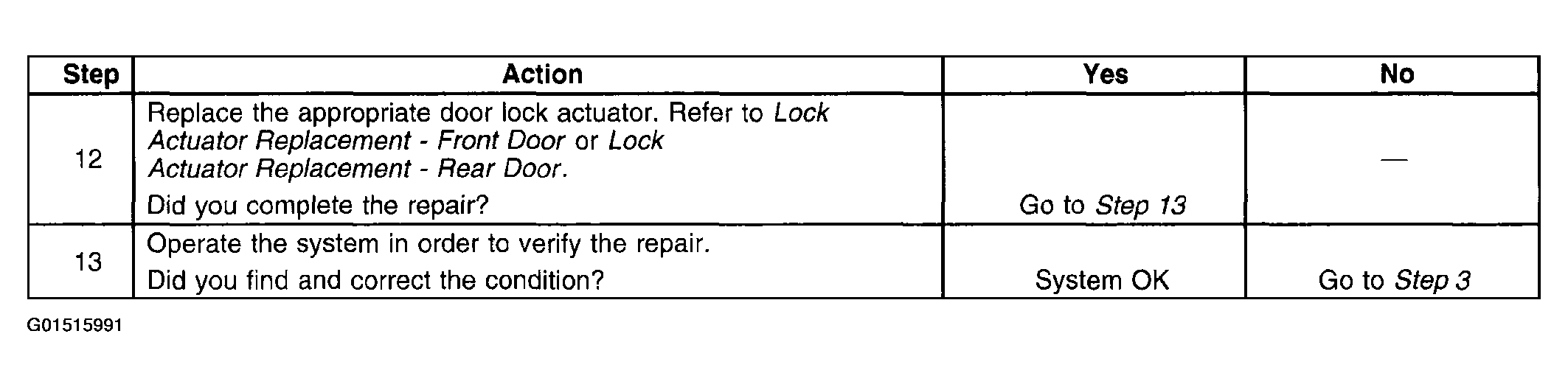

   Fig 2: Aztek Power Door Locks Inoperative Symptom Tests (Steps 12-13)

   Courtesy of GENERAL MOTORS CORP.

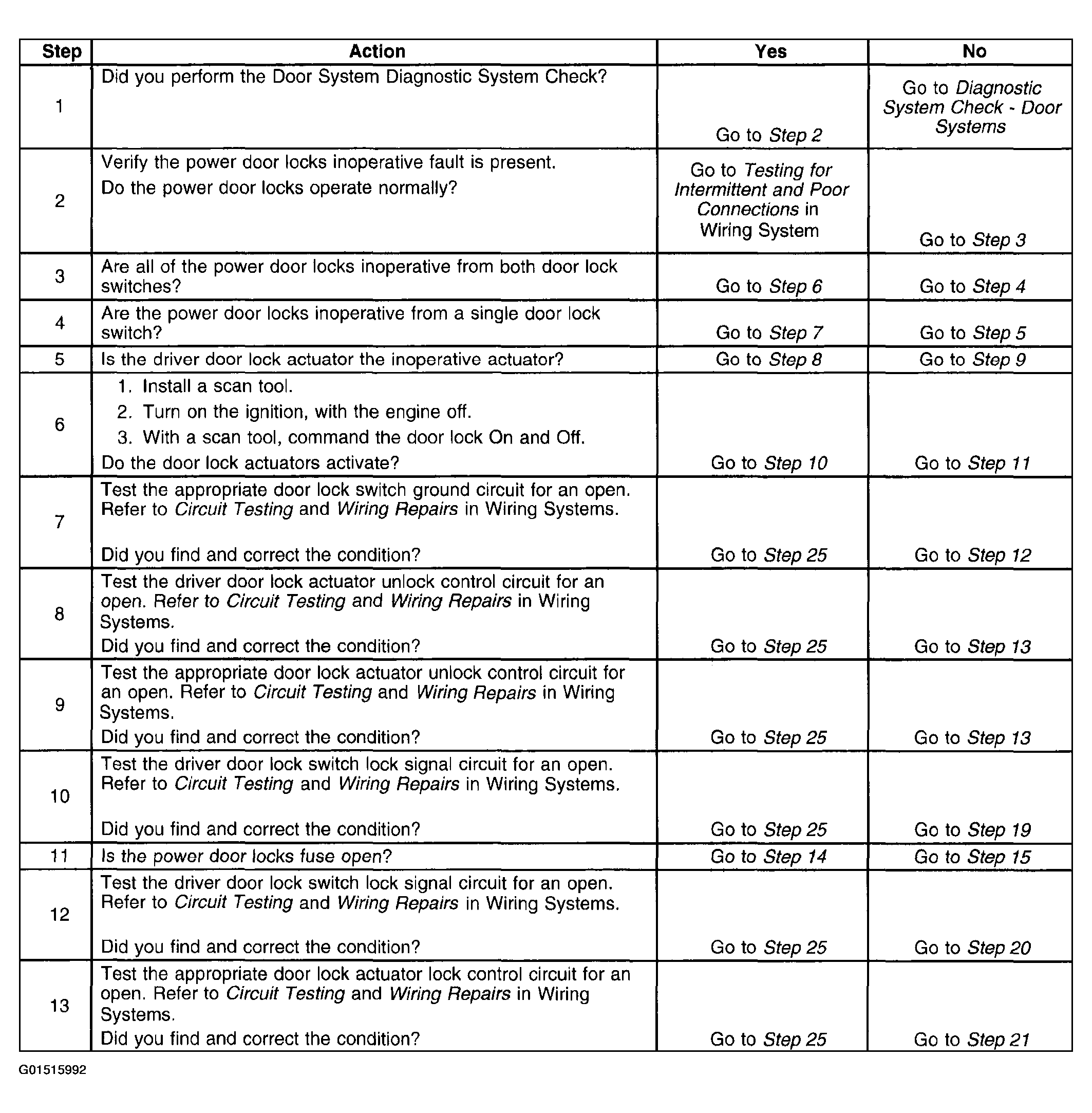

   Fig 3: Rendezvous Power Door Locks Inoperative Symptom Tests (Steps 1-13)

   Courtesy of GENERAL MOTORS CORP.

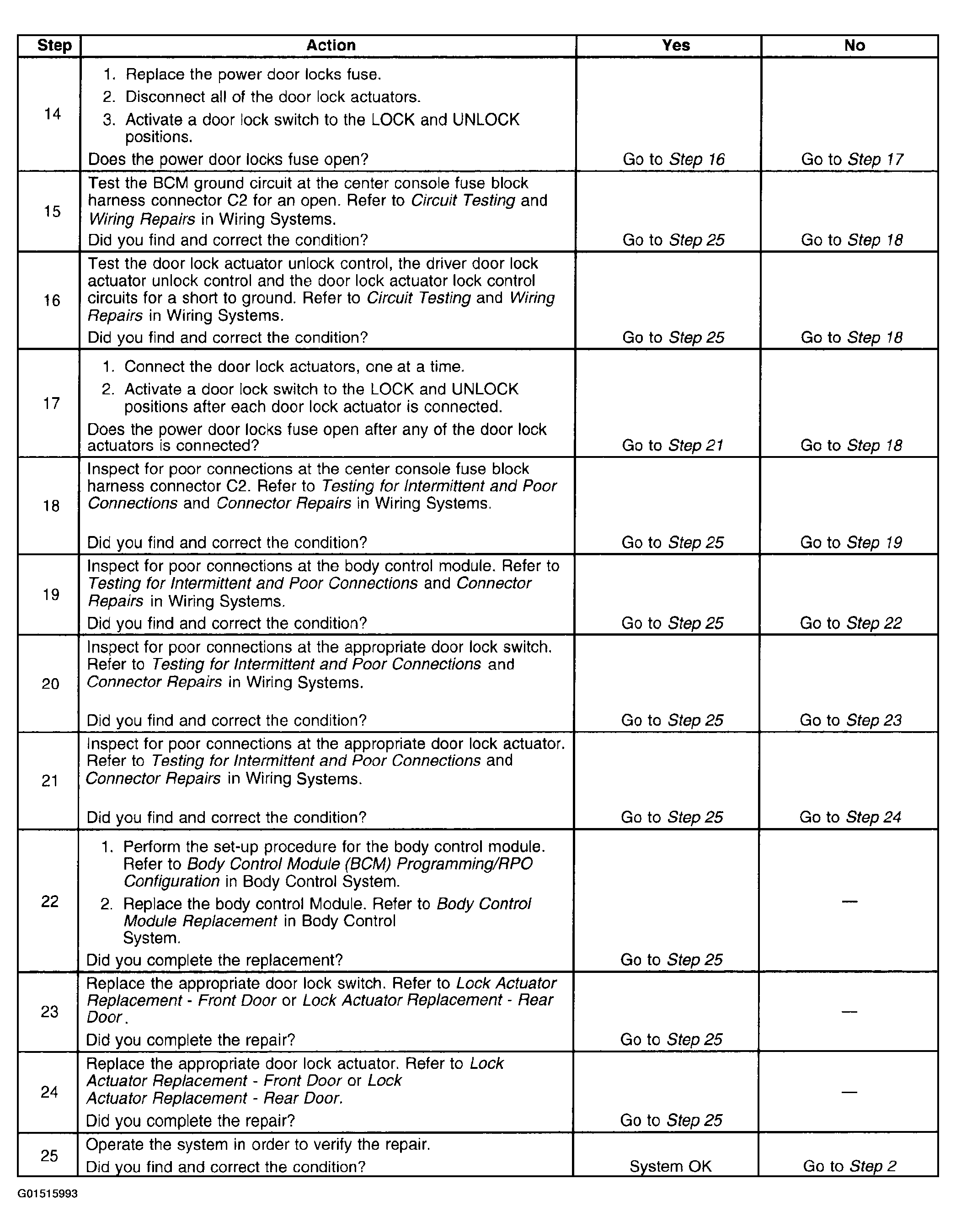

   Fig 4: Rendezvous Power Door Locks Inoperative Symptom Tests (Steps 14-25)

   Courtesy of GENERAL MOTORS CORP.

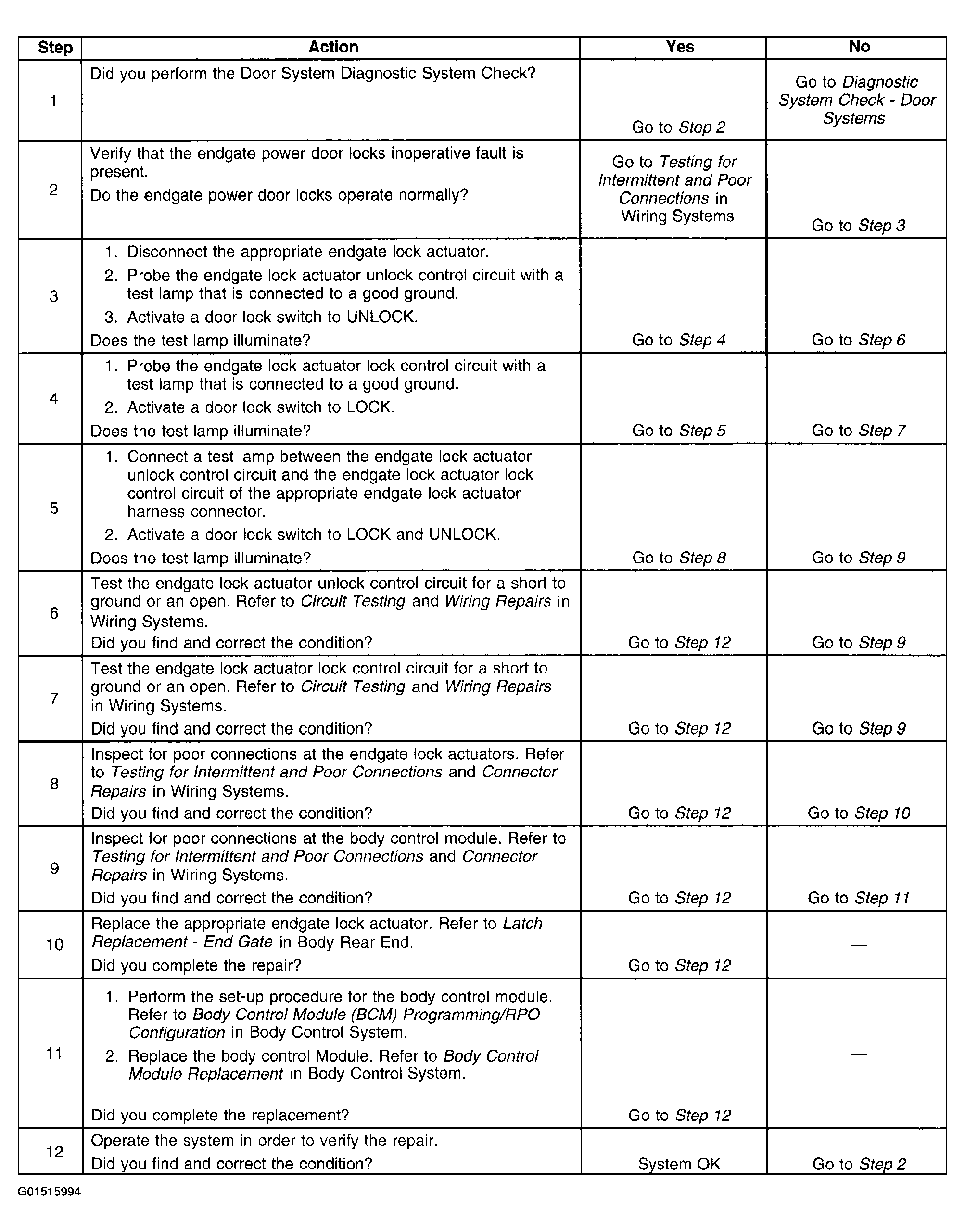

   Fig 5: End Gate/Lift Gate Power Door Locks Inoperative Symptom Tests

   Courtesy of GENERAL MOTORS CORP.

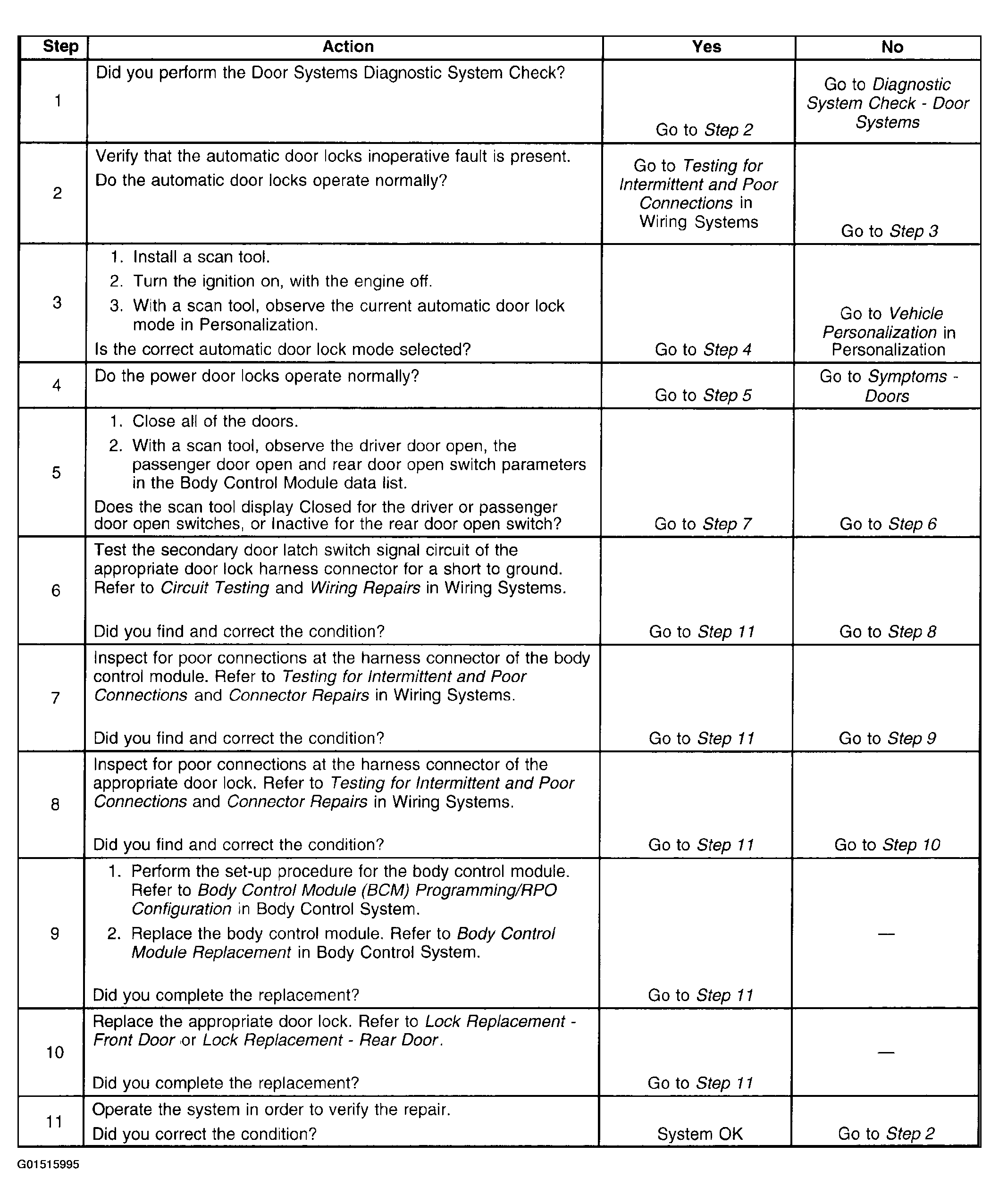

   Fig 6: Automatic Door Locks Inoperative Symptom Tests

   Courtesy of GENERAL MOTORS CORP.
