Installation Procedure

  1. Place the seat back trim panel to the rear seat back.

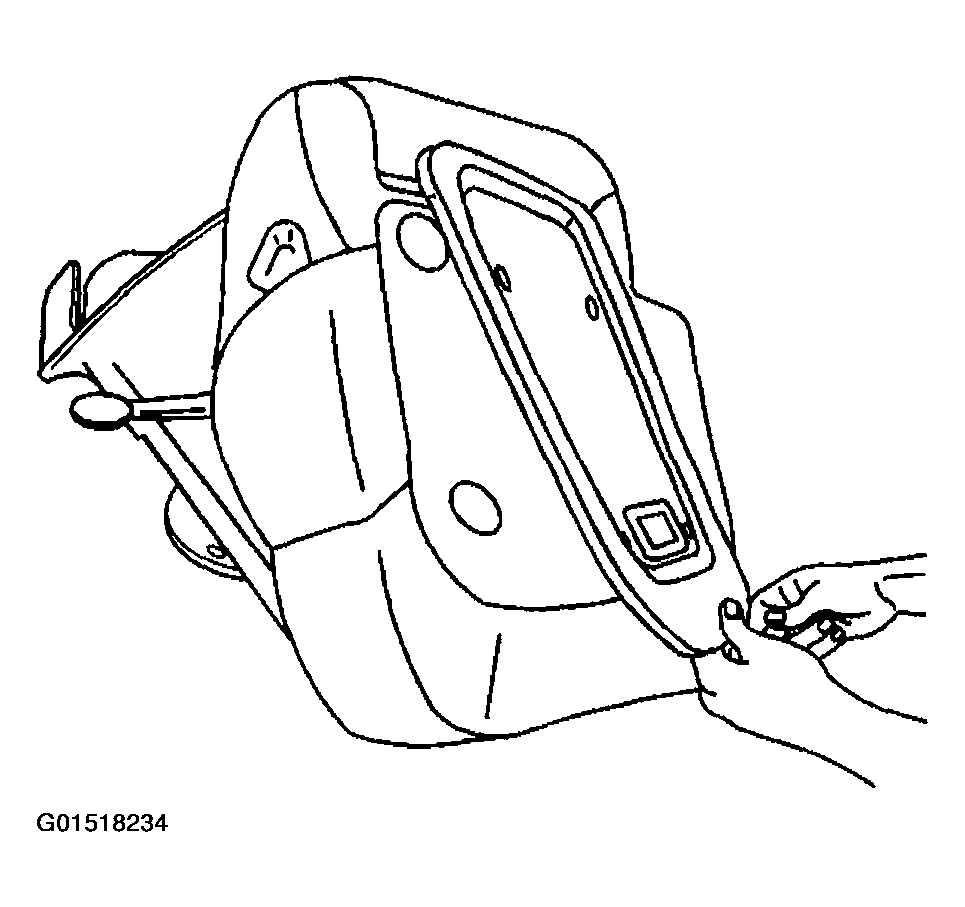

    Fig 1: Placing Seat Back Trim Panel To Rear Seat Back
    G01518234Courtesy of GENERAL MOTORS CORP.
  2. Install the outer portion of the push-pin retainer to the seat back trim panel.

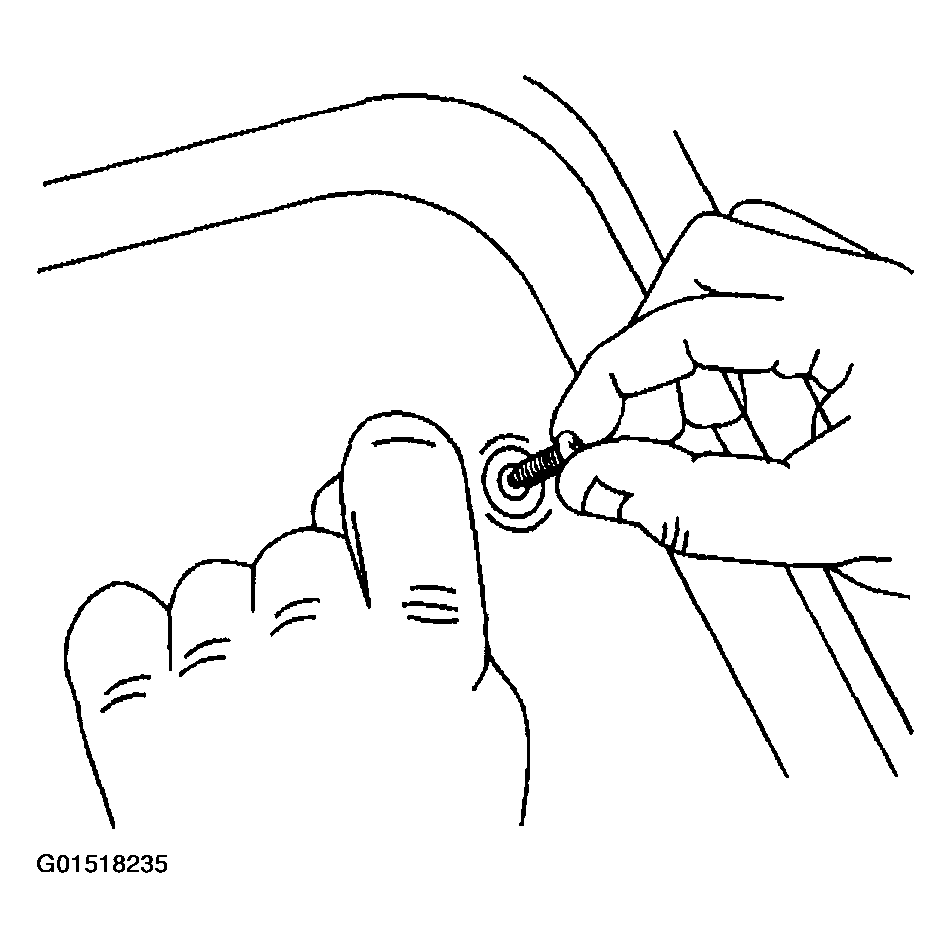

    Fig 2: Installing Outer Portion Of Push-Pin Retainer To Seat Back Trim Panel
    G01518235Courtesy of GENERAL MOTORS CORP.
  3. Install the push-pin retainer pressing into place until fully seated.

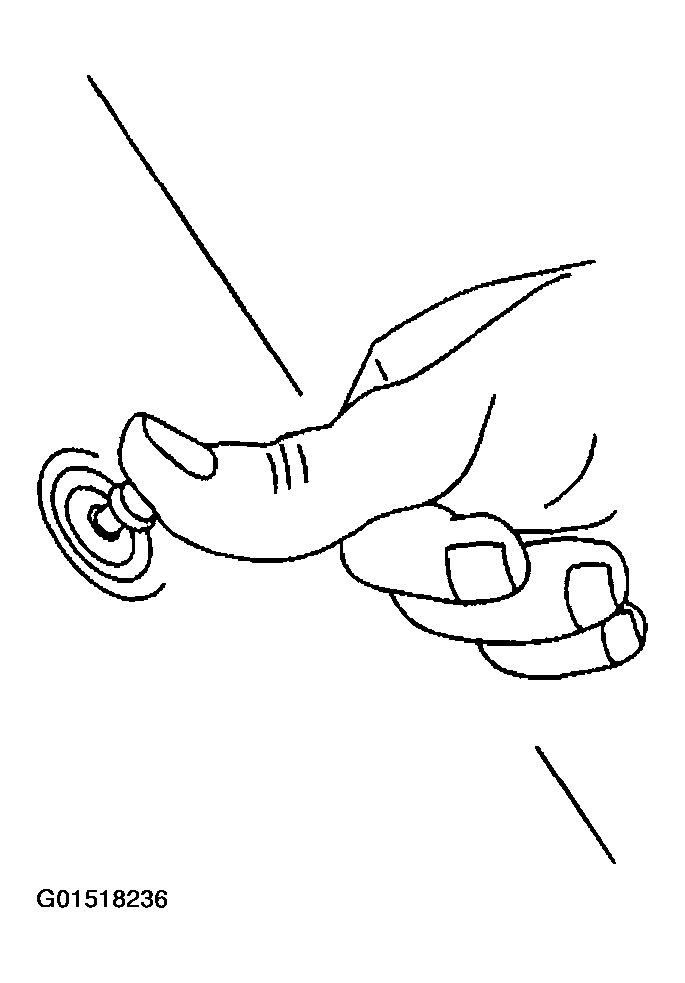

    Fig 3: Installing Push-Pin Retainer
    G01518236Courtesy of GENERAL MOTORS CORP.
