Installation Procedure

Important:  The keys on the recliner handle must properly align to the keyways on the recliner handle shaft.

1. Position the seat back recliner handle to the seat back recliner handle shaft.
2. Install the seat back recliner handle to the seat back recliner handle shaft pressing on until properly seated.

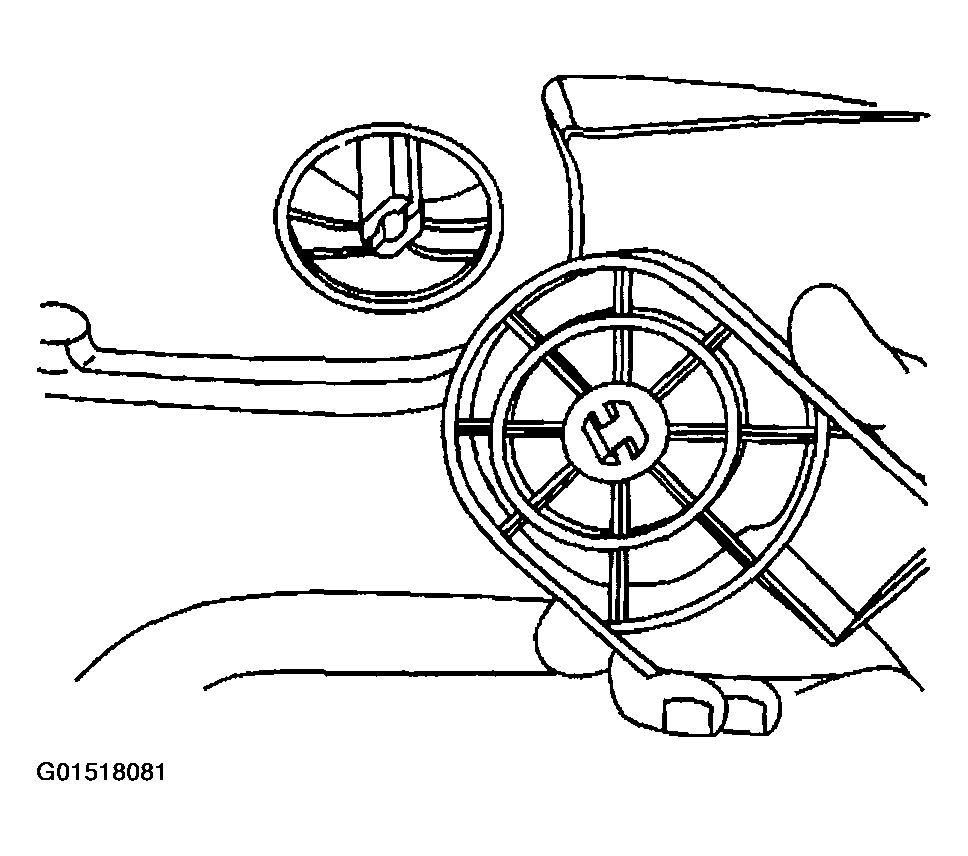

   Fig 1: Installing Seat Back Recliner Handle To Seat Back Recliner Handle Shaft

   Courtesy of GENERAL MOTORS CORP.
3. Install the screw to the seat back recliner handle.

   Tighten

   Tighten the seat back recliner screw to 2 N.m (18 lb in).

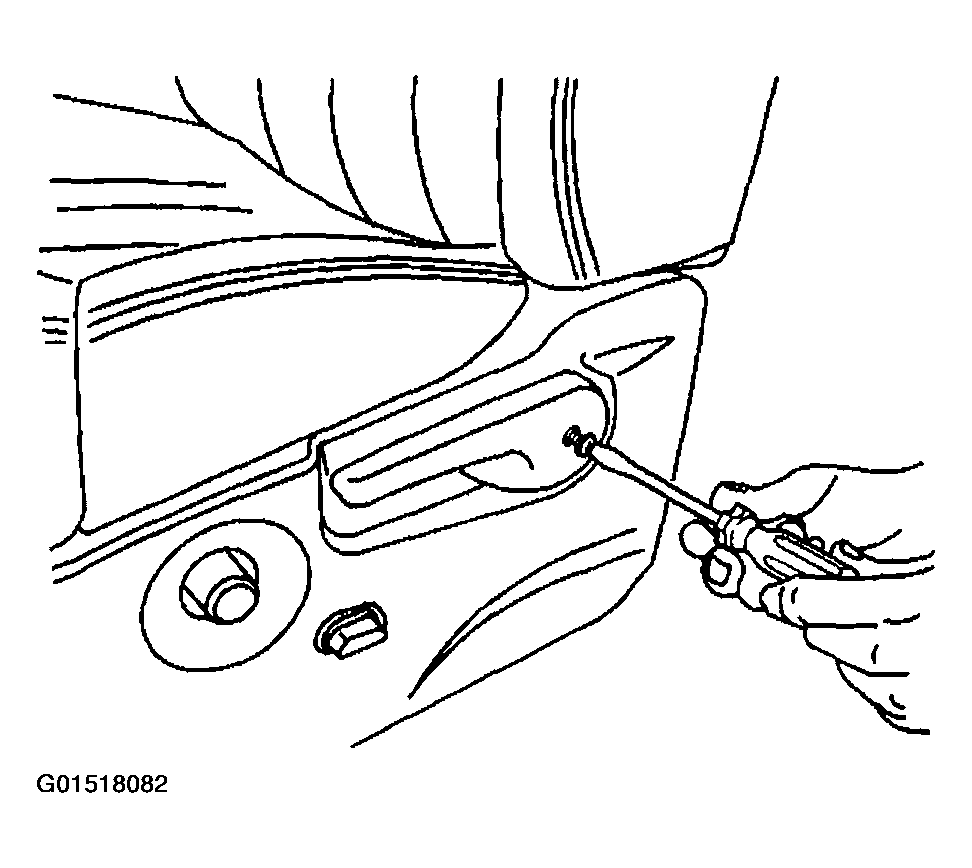

   Fig 2: Installing Screw To Seat Back Recliner Handle
