Installation Procedure

  1. Install the rear seat back pad to the rear seat back frame. Refer to SEAT BACK PAD REPLACEMENT - REAR (BUCKET)  or SEAT BACK PAD REPLACEMENT - REAR (SPLIT BENCH)  .
  2. Install the rear seat back cushion cover. Refer to SEAT BACK COVER REPLACEMENT - REAR (BUCKET)  or SEAT BACK COVER REPLACEMENT - REAR (SPLIT BENCH)  .
  3. Install the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR (SPLIT BENCH)  or SEAT BACK REPLACEMENT - REAR (BUCKET)  .
  4. Install the split bench seat. Refer to SEAT REPLACEMENT - REAR 50-50 SPLIT  .

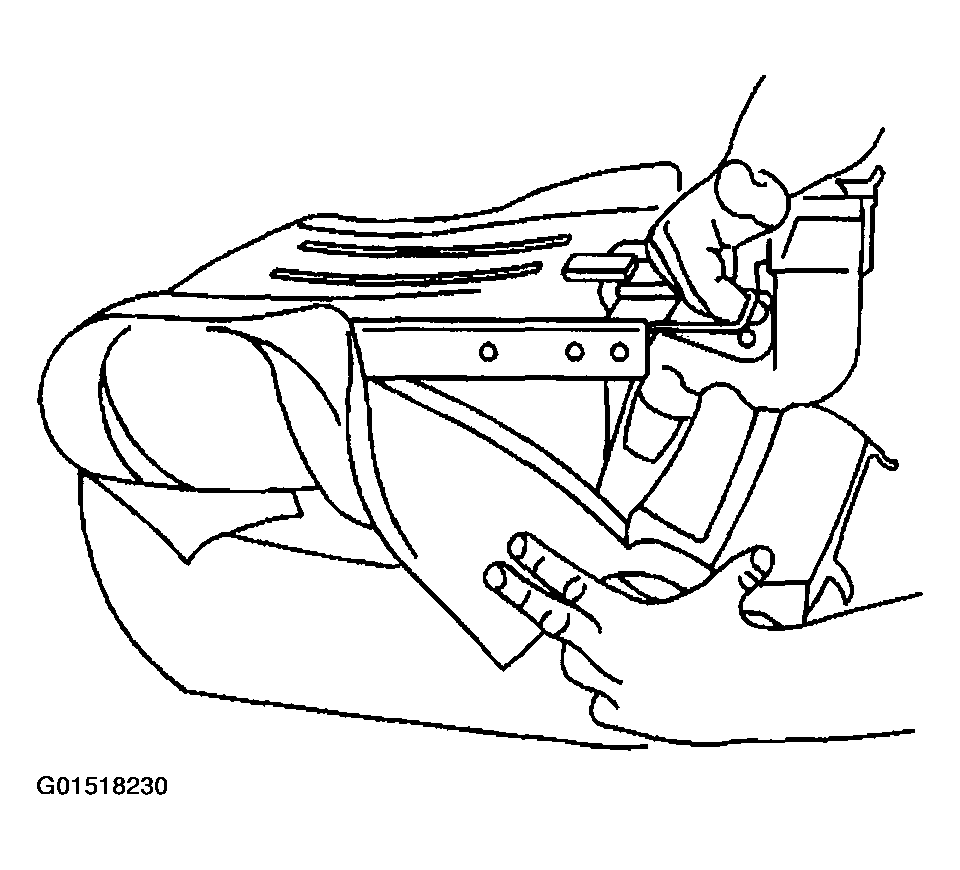

    Fig 1: Installing Seat Back Frame - Rear (Split Bench)
    G01518230Courtesy of GENERAL MOTORS CORP.
