Symptom List: Notes

Refer to a symptom diagnostic procedure from the following list in order to diagnose the symptom:

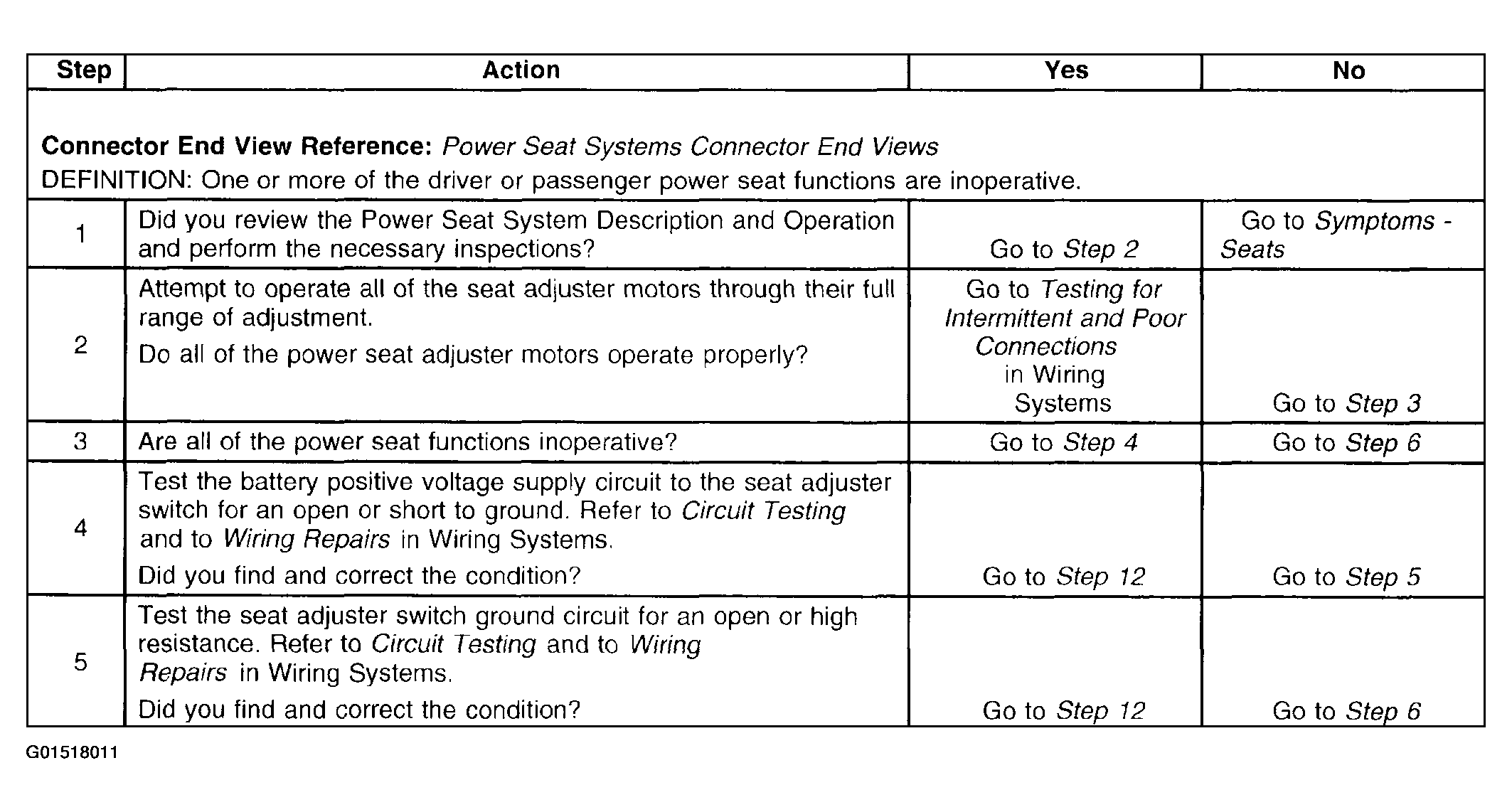

• Power Seat Inoperative (With Memory). See Figure or Power Seat Inoperative (W/O Memory). See Figure

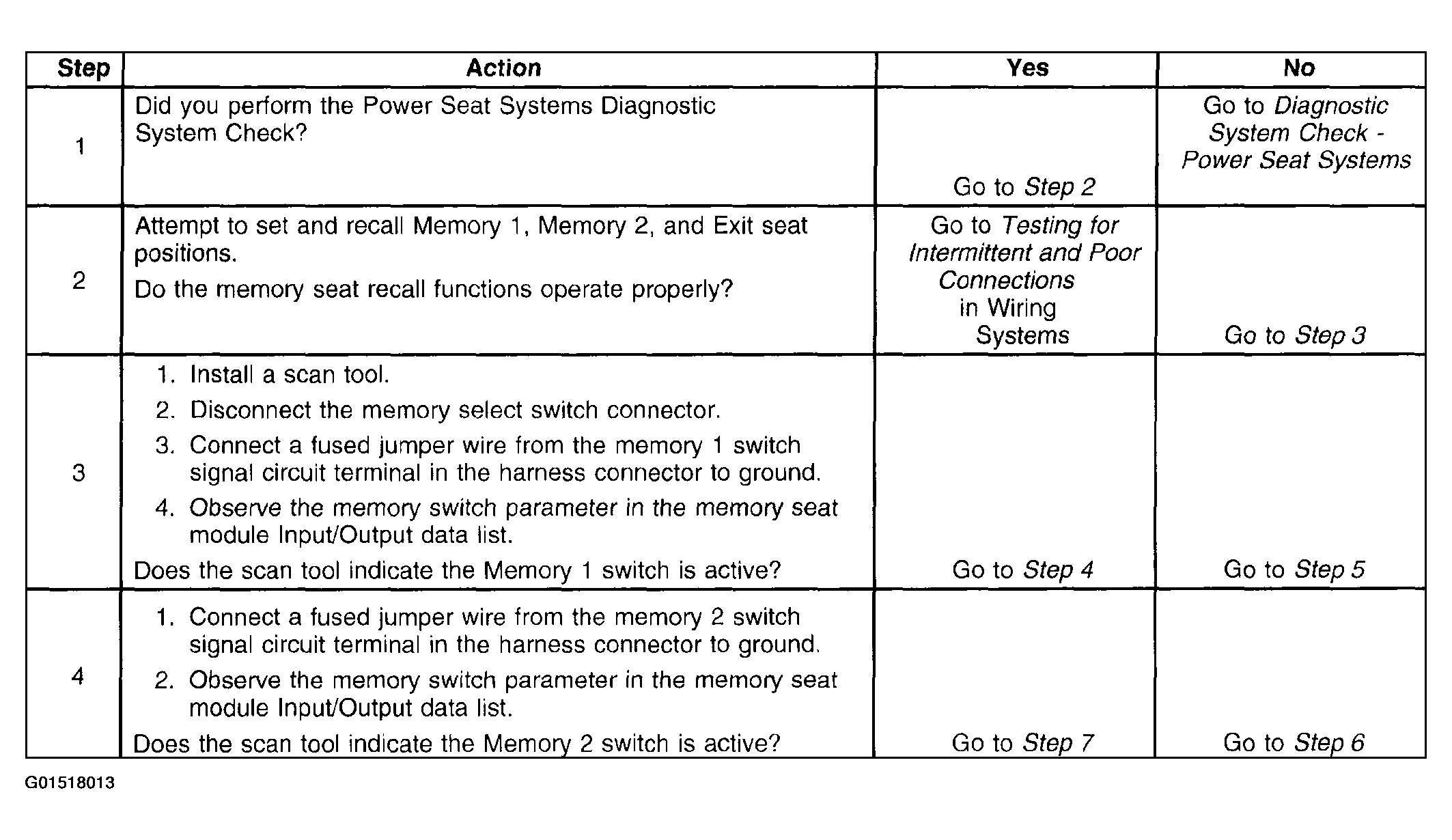

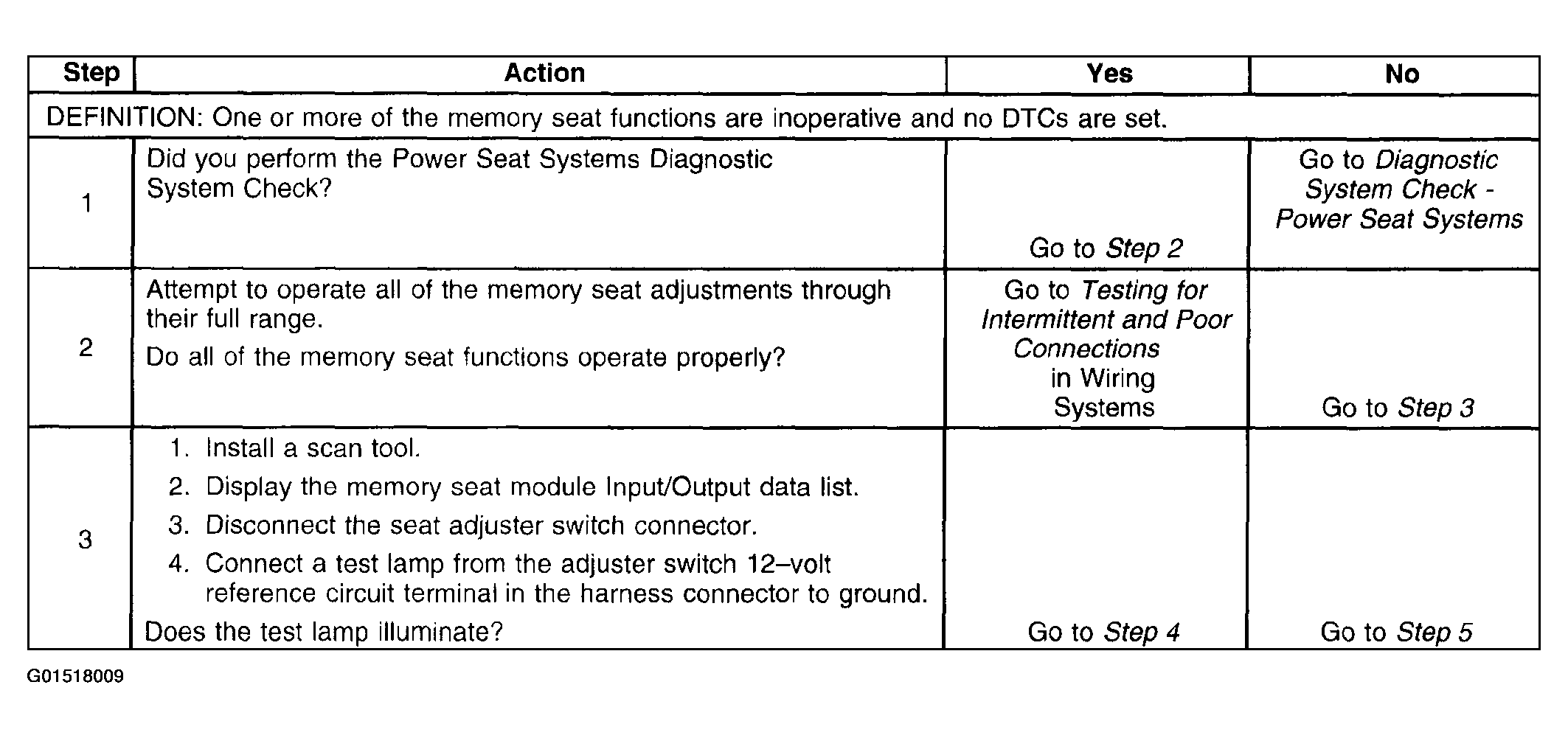

• Memory Seat Feature Inoperative. See Figure

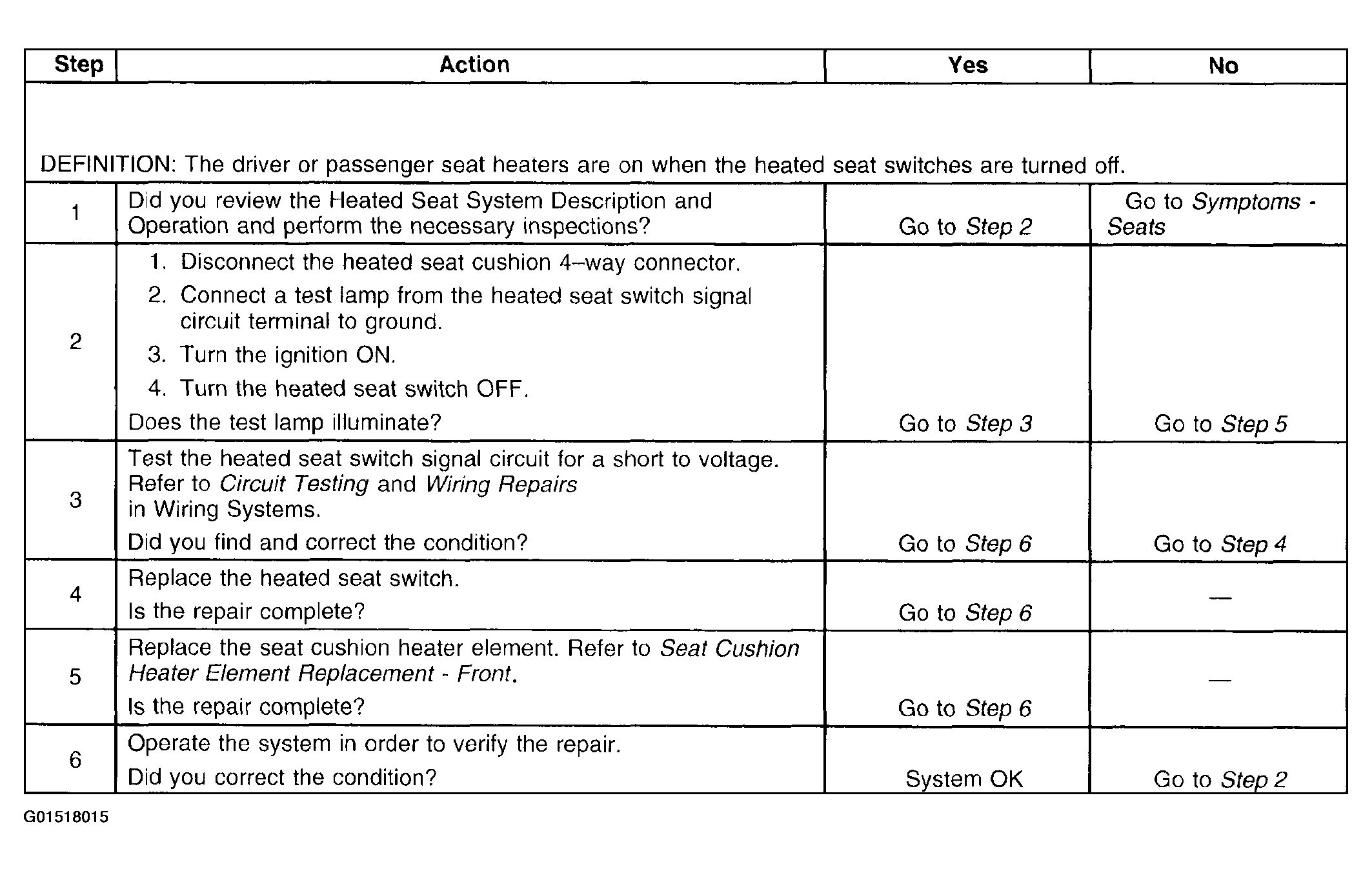

• Heated Seat Always On. See Figure

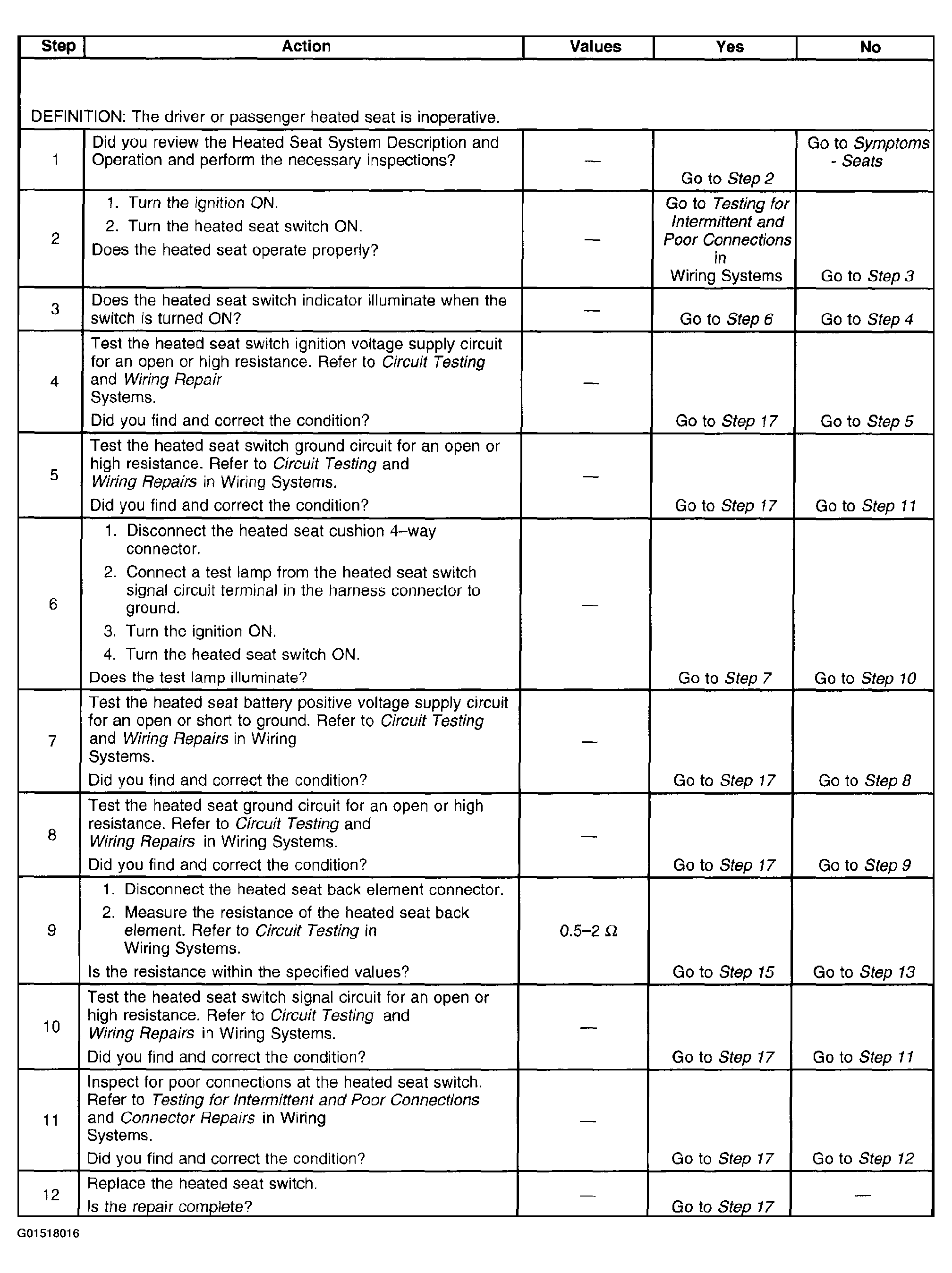

• Heated Seat Inoperative. See Figure
