Memory Seat Feature Inoperative

Fig 1: Memory Seat Feature Inoperative Diagnostic (Steps 1-4)
G01518013Courtesy of GENERAL MOTORS CORP.

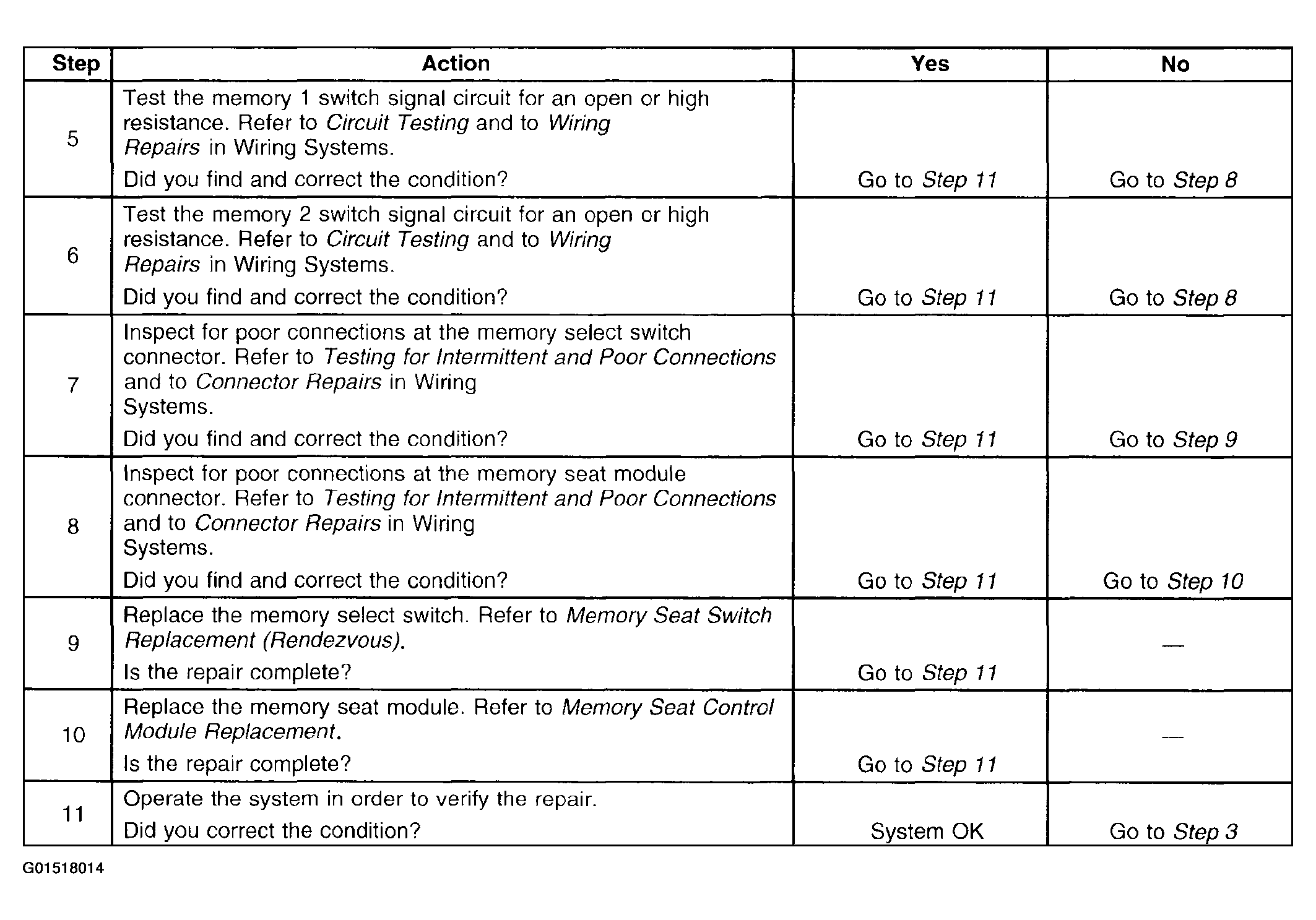

Fig 2: Memory Seat Feature Inoperative Diagnostic (Steps 5-11)
G01518014Courtesy of GENERAL MOTORS CORP.
