Installation Procedure

  1. Install the trailer hitch to the vehicle.
    NOTE: Refer to FASTENER NOTICE .
  2. Install bolts to frame rail.

    Tighten

    Tighten to 101 N.m (75 lb ft)

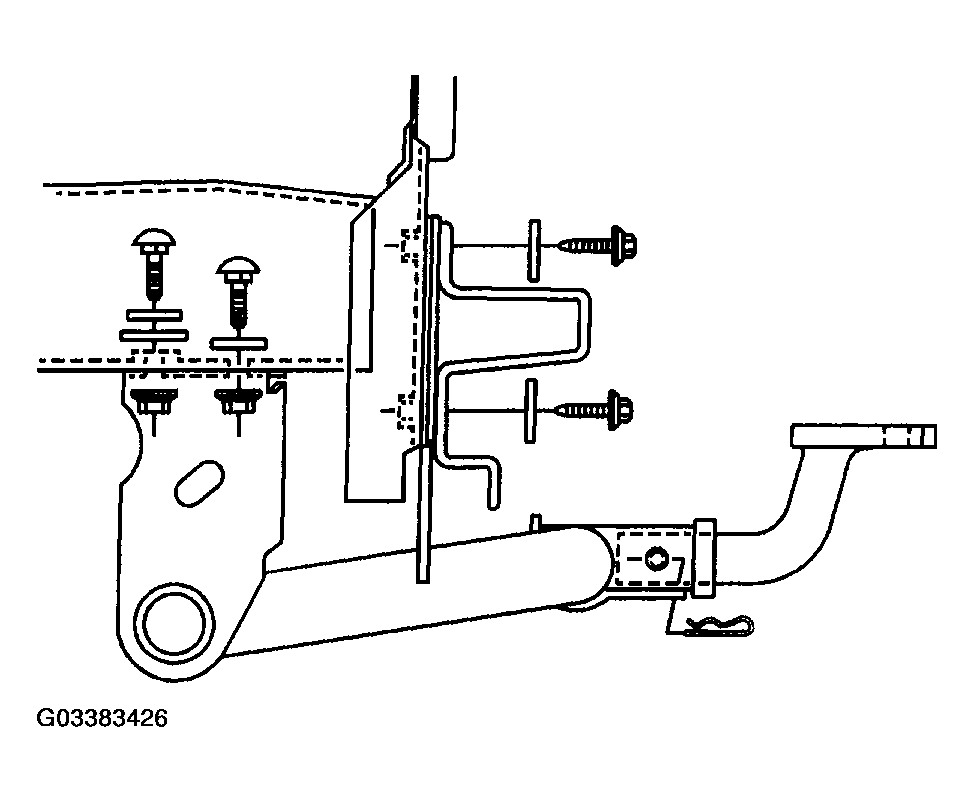

    Fig 1: Installing Bolts To Frame Rail
    G03383426Courtesy of GENERAL MOTORS CORP.
  3. Install the rear impact bar. Refer to IMPACT BAR REPLACEMENT - REAR BUMPER in Bumpers.

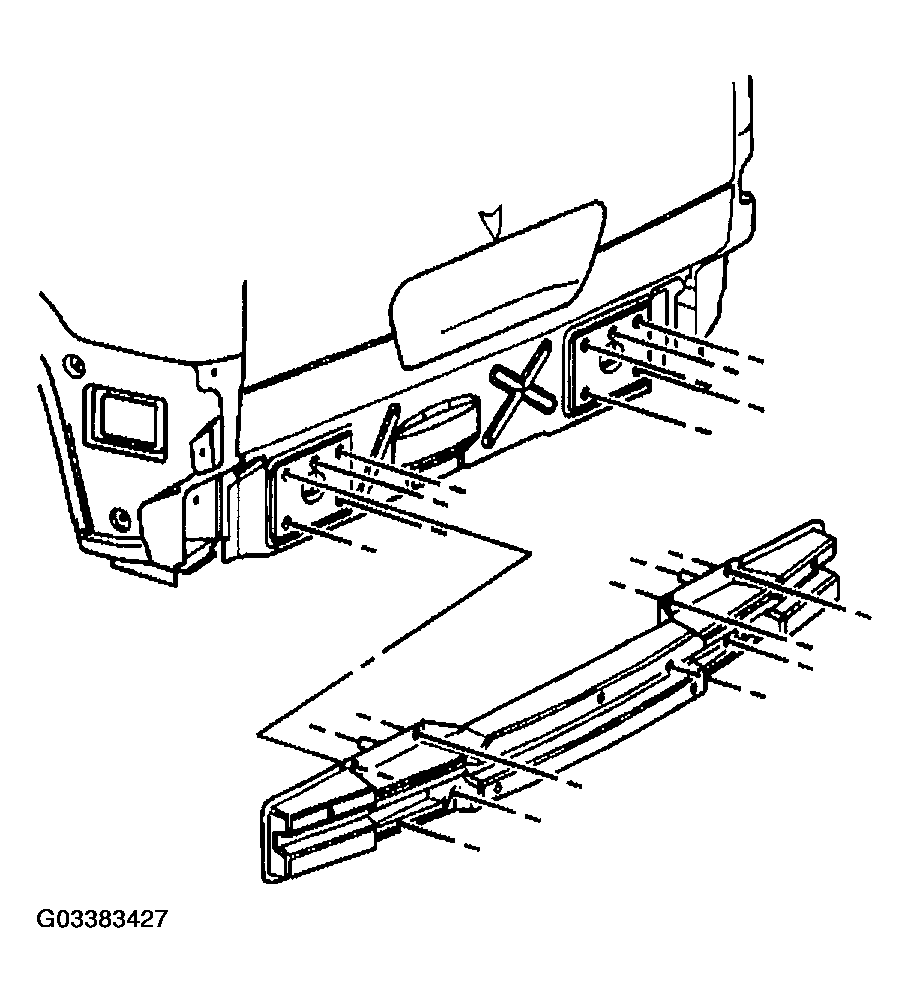

    Fig 2: Installing Rear Impact Bar
    G03383427Courtesy of GENERAL MOTORS CORP.
  4. Install the rear energy absorbers. Refer to ENERGY ABSORBER REPLACEMENT - REAR (AZTEK) or ENERGY ABSORBER REPLACEMENT - REAR (RENDEZVOUS) in Bumpers.

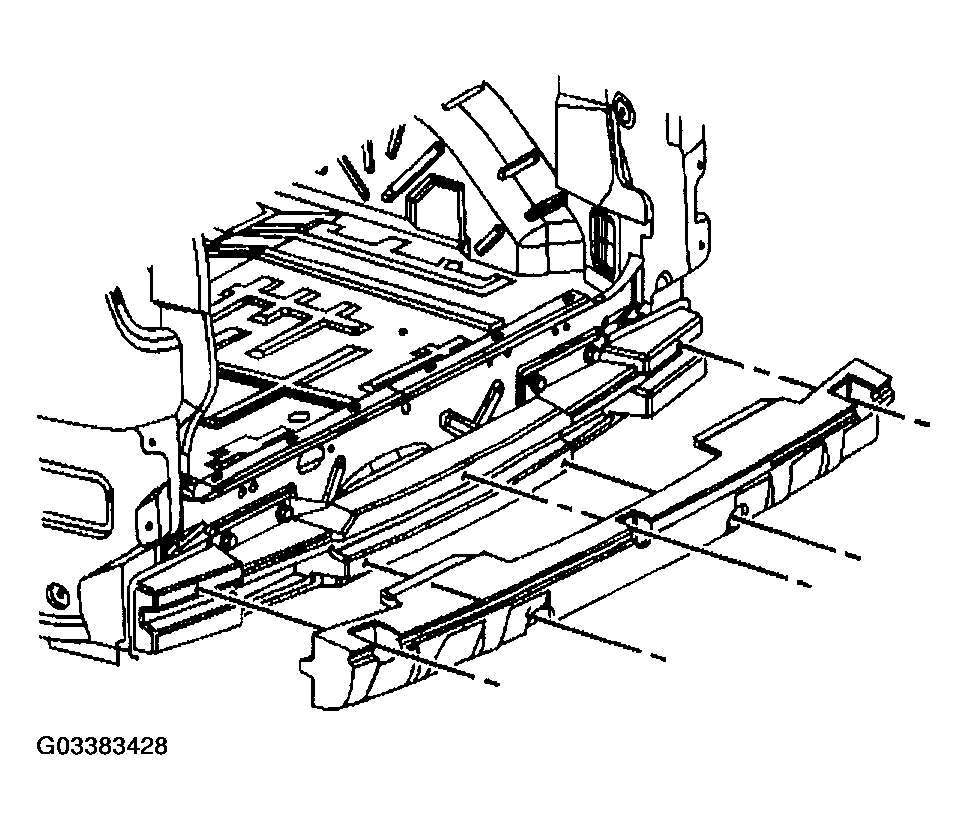

    Fig 3: Installing Rear Energy Absorbers
    G03383428Courtesy of GENERAL MOTORS CORP.
  5. Install the rear fascia. Refer to FASCIA REPLACEMENT - REAR BUMPER (AZTEK) or FASCIA REPLACEMENT - REAR BUMPER (RENDEZVOUS) in Bumpers.
  6. Lower the vehicle.

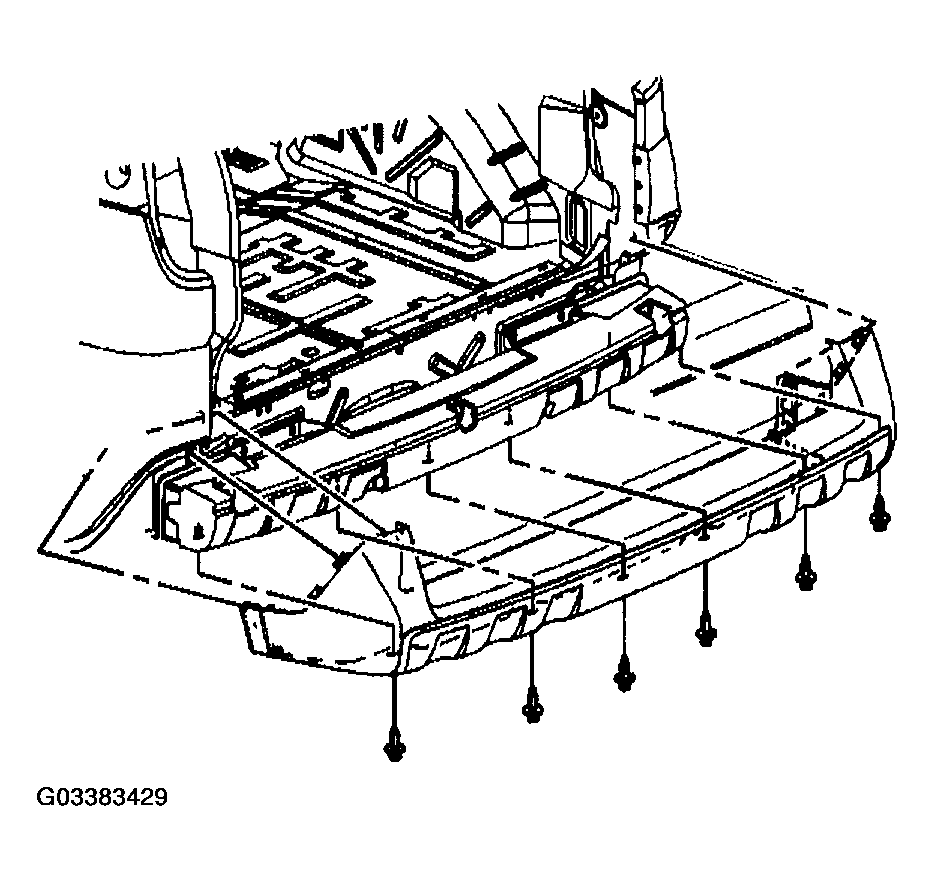

    Fig 4: Installing Rear Fascia
    G03383429Courtesy of GENERAL MOTORS CORP.
