Tire Pressure Monitoring System Schematics

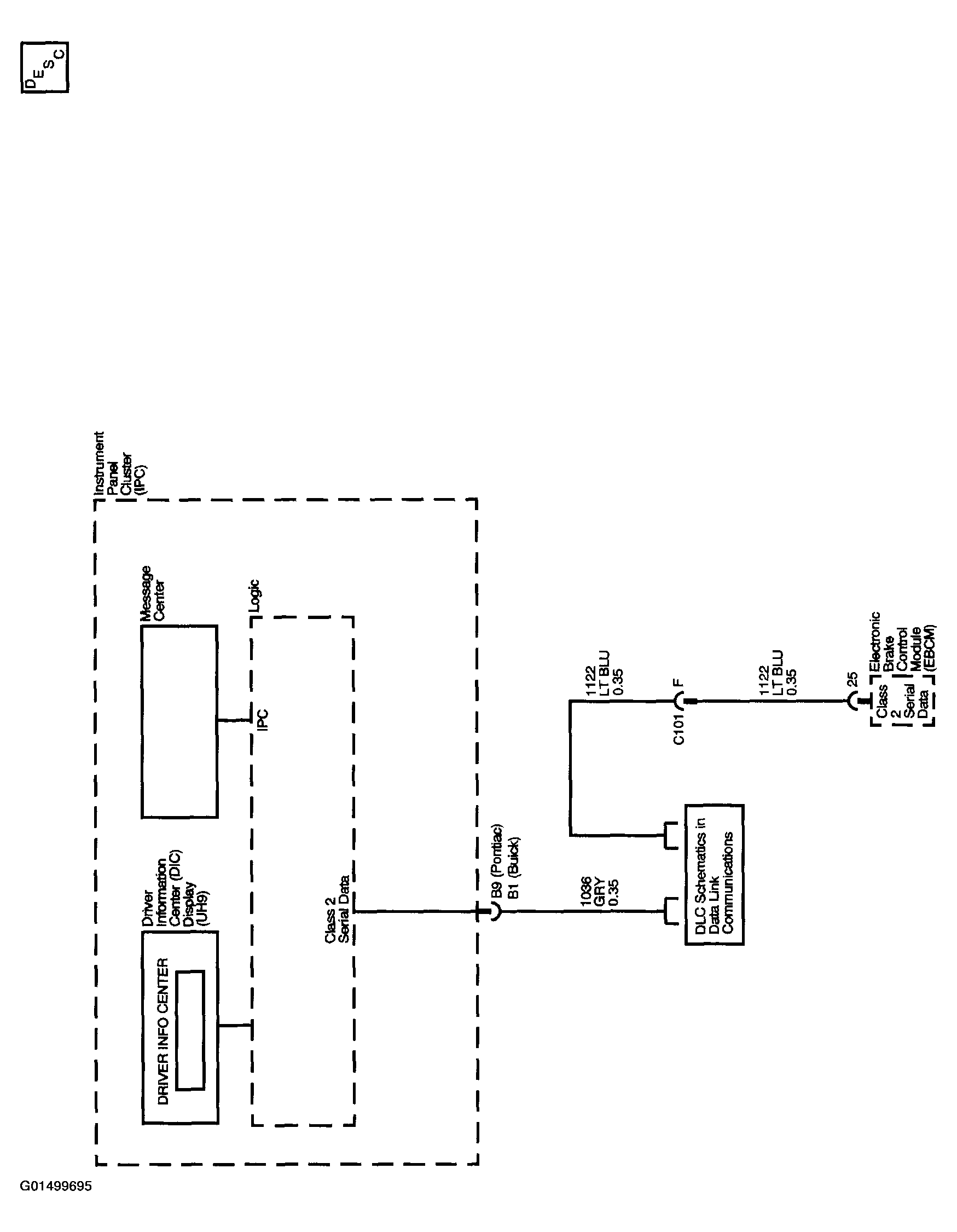

Fig 1: Tire Pressure Monitoring System Schematics

G01499695

Courtesy of GENERAL MOTORS CORP.
