Engine Block - Top View

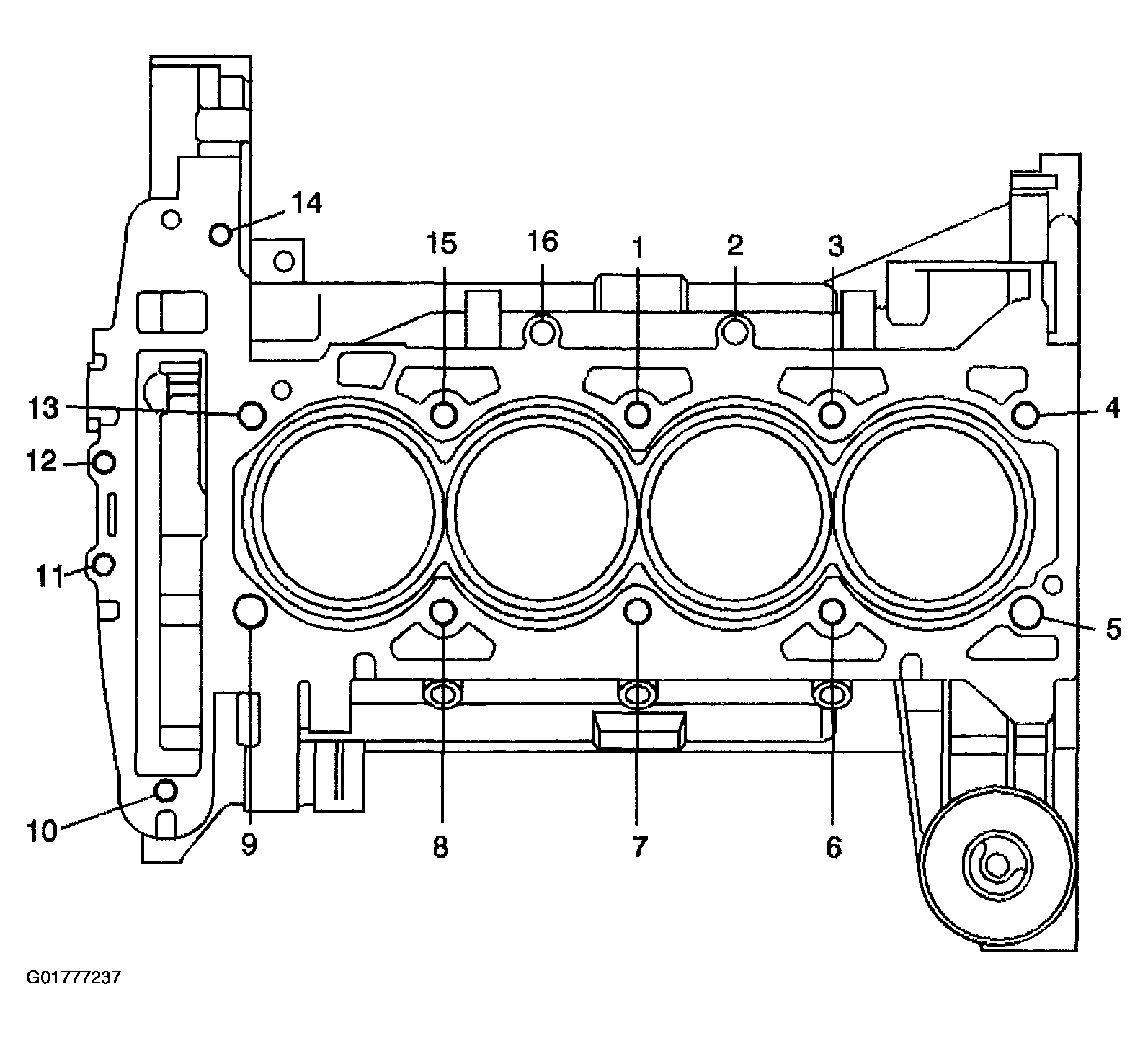

Fig 1: Engine Block - Top View (1 Of 3)
G01777237Courtesy of GENERAL MOTORS CORP.

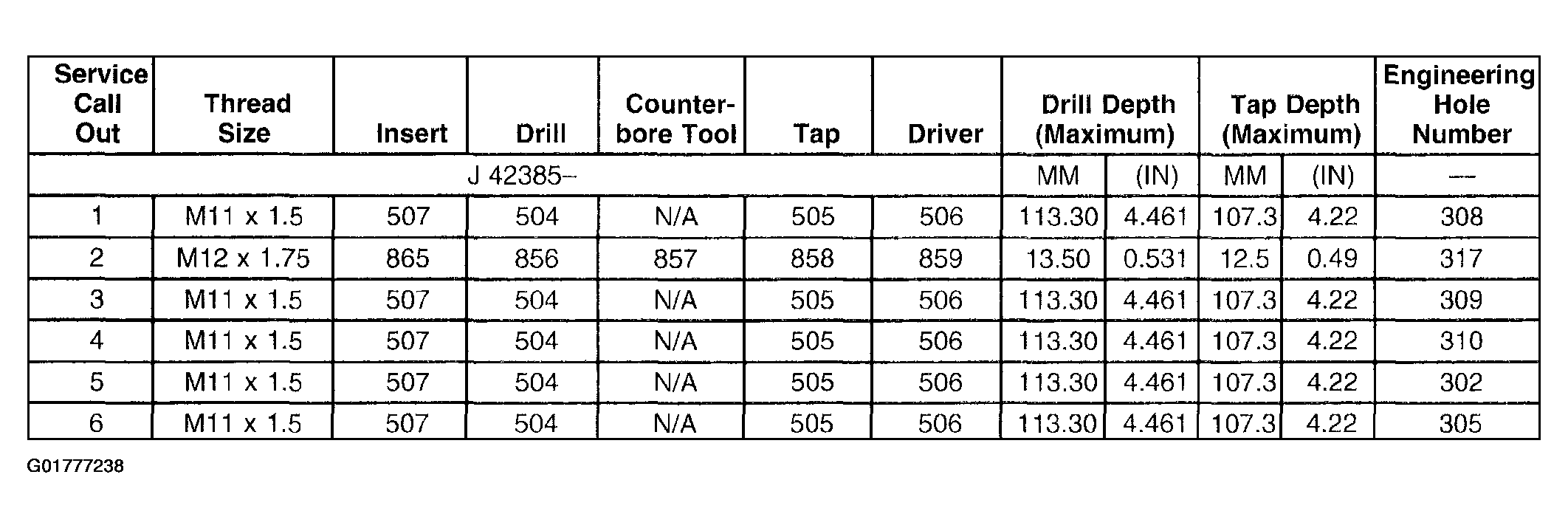

Fig 2: Engine Block - Top View (2 Of 3)
G01777238Courtesy of GENERAL MOTORS CORP.

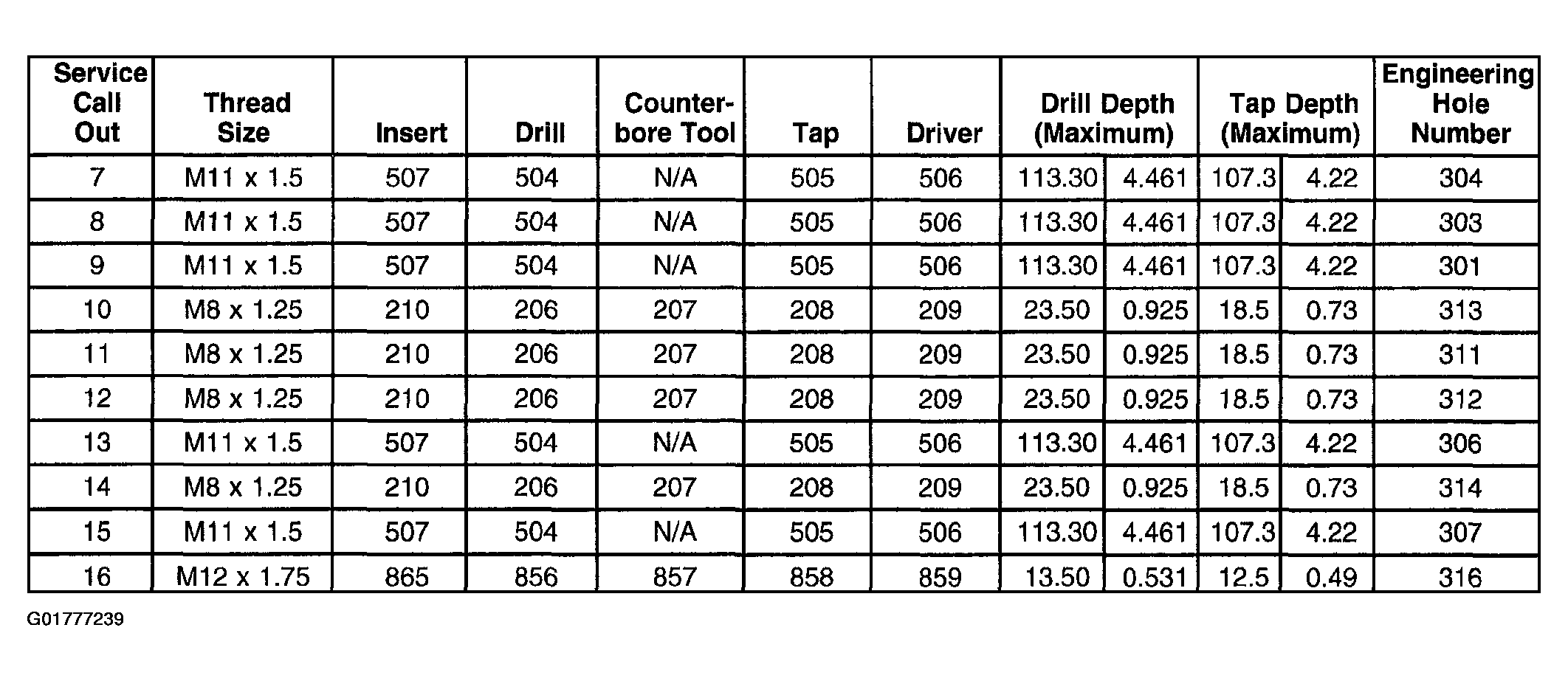

Fig 3: Engine Block - Top View (3 Of 3)
G01777239Courtesy of GENERAL MOTORS CORP.
