Installation Procedure

IMPORTANT: Verify that the release lever at the top of the bracket is in the full up position.
  1. Position shoulder belt guide adjuster bracket to the upper center pillar.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the shoulder belt guide belt adjuster bracket bolts.

    Tighten

    Tighten the shoulder belt guide adjuster bracket bolts to 42 N.m (31 lb ft).

  3. Install the upper quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER UPPER (SEDAN) .

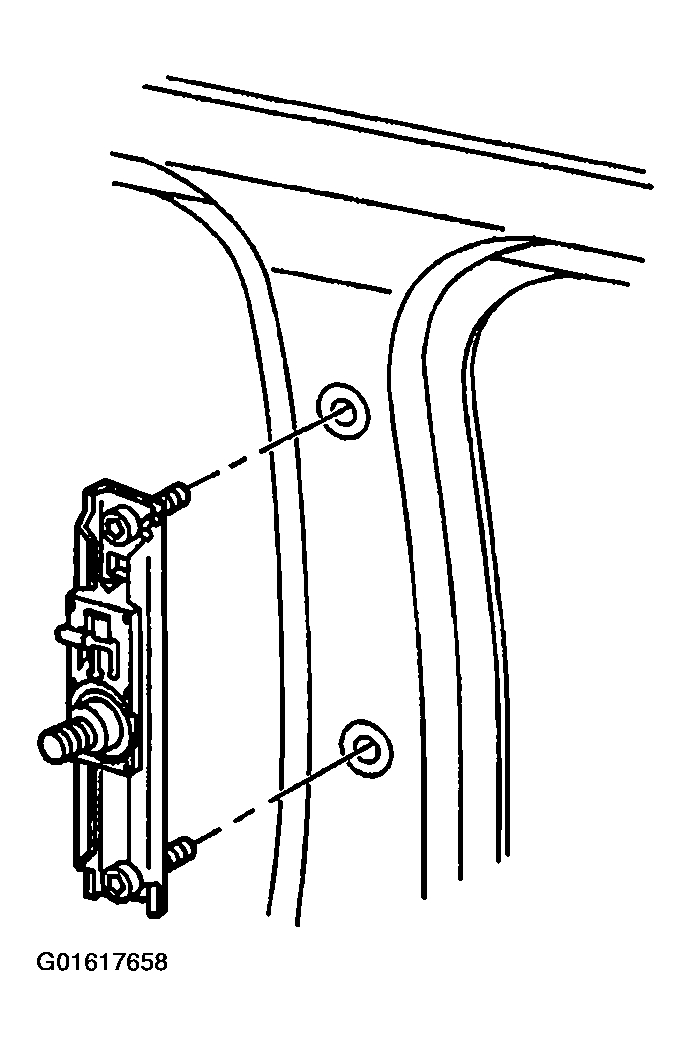

    Fig 1: Shoulder Belt Guide Belt Adjuster Bracket
    G01617658Courtesy of GENERAL MOTORS CORP.
