Stationary Windows Connector End Views

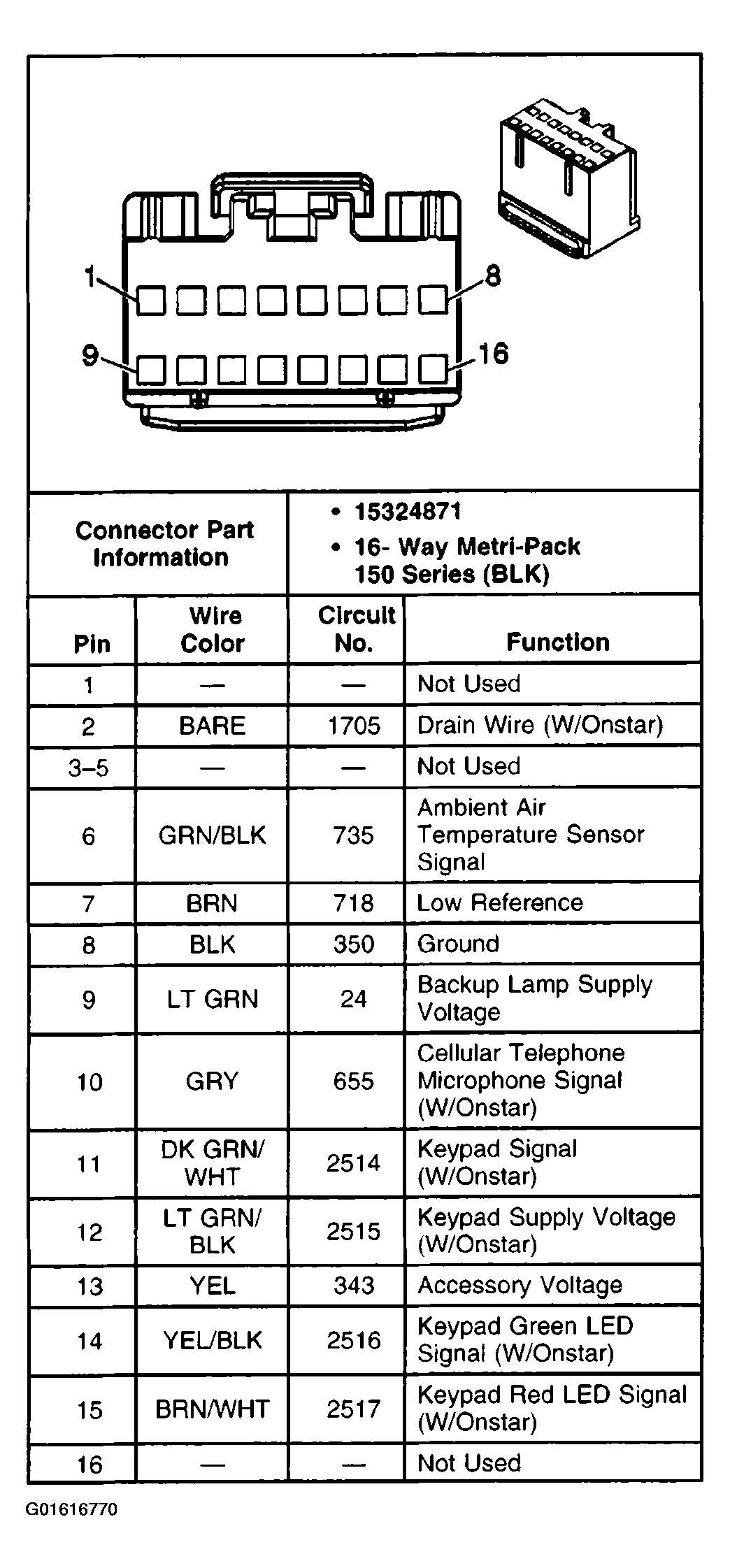

Fig 1: Inside Rearview Mirror

G01616770

Courtesy of GENERAL MOTORS CORP.

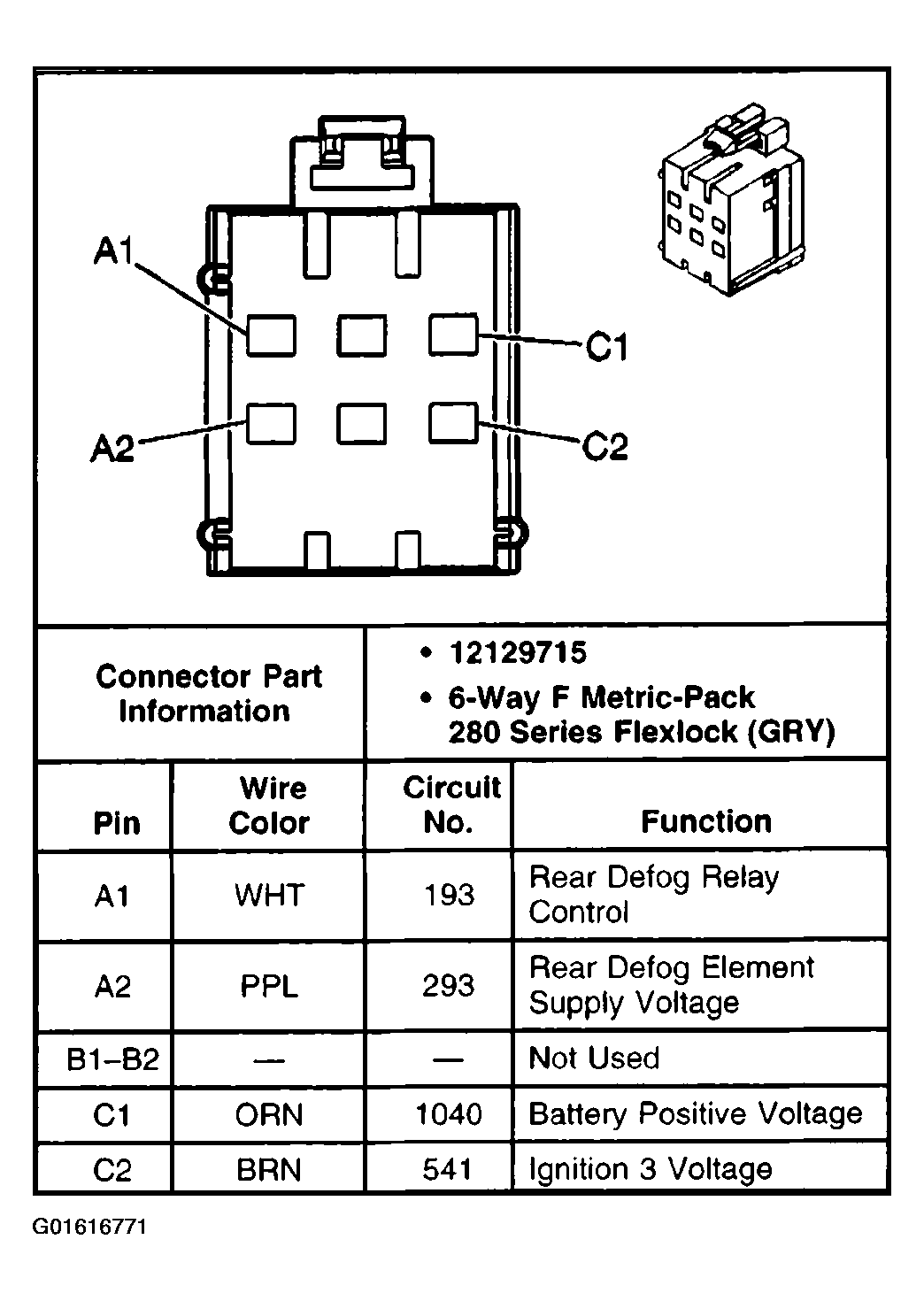

Fig 2: Rear Window Defogger Relay

G01616771

Courtesy of GENERAL MOTORS CORP.
