Home >> Pontiac >> 2002 >> Firebird Formula, Standard >> Repair and Diagnosis >> Steering >> Steering Wheel And Steering Column >> Diagnostic Information and Procedures >> Lock System Does Not Lock

Lock System Does Not Lock

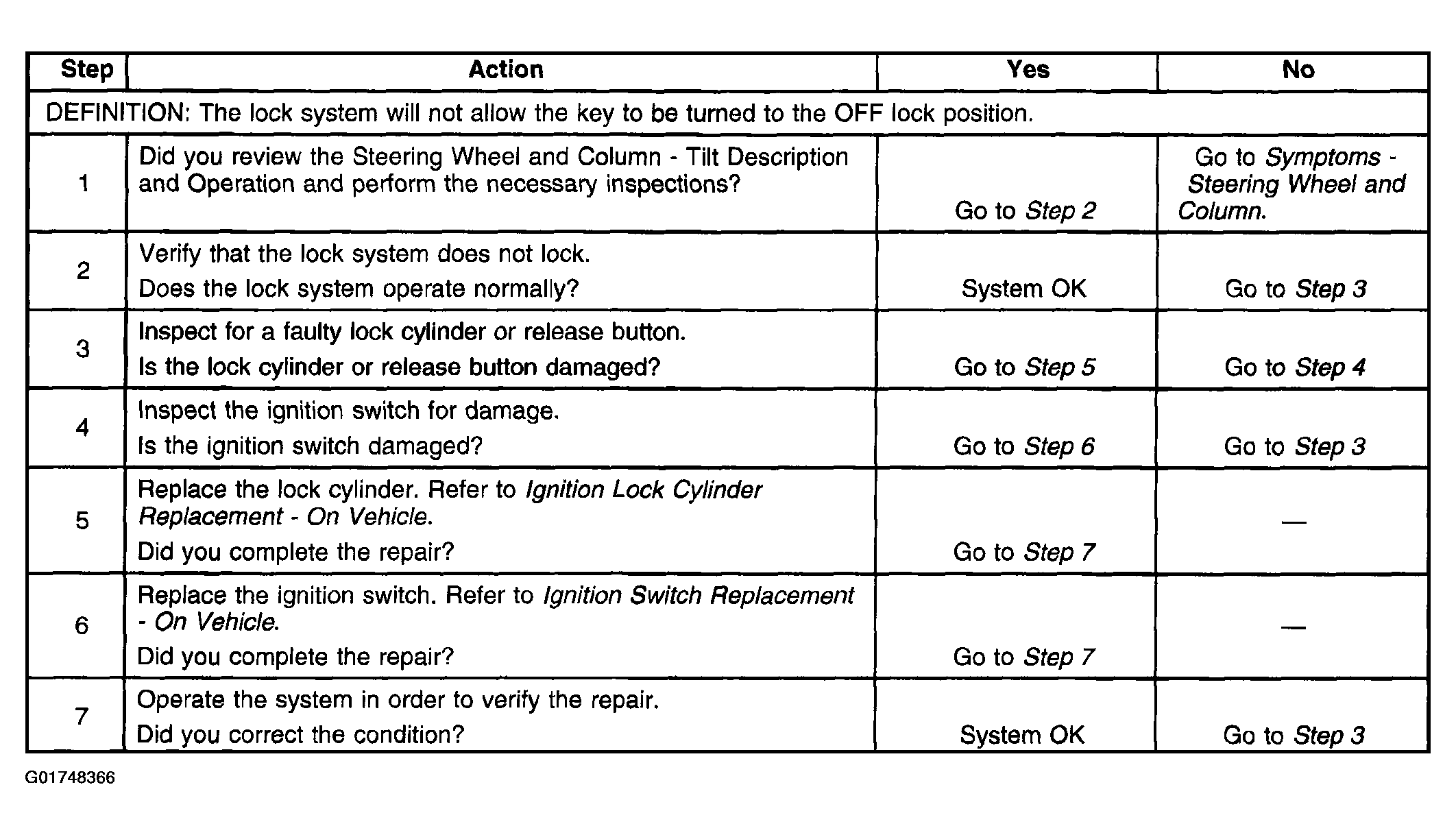

Fig 1: Lock System Does Not Lock

G01748366

Courtesy of GENERAL MOTORS CORP.
