Steering Column Disassembled View

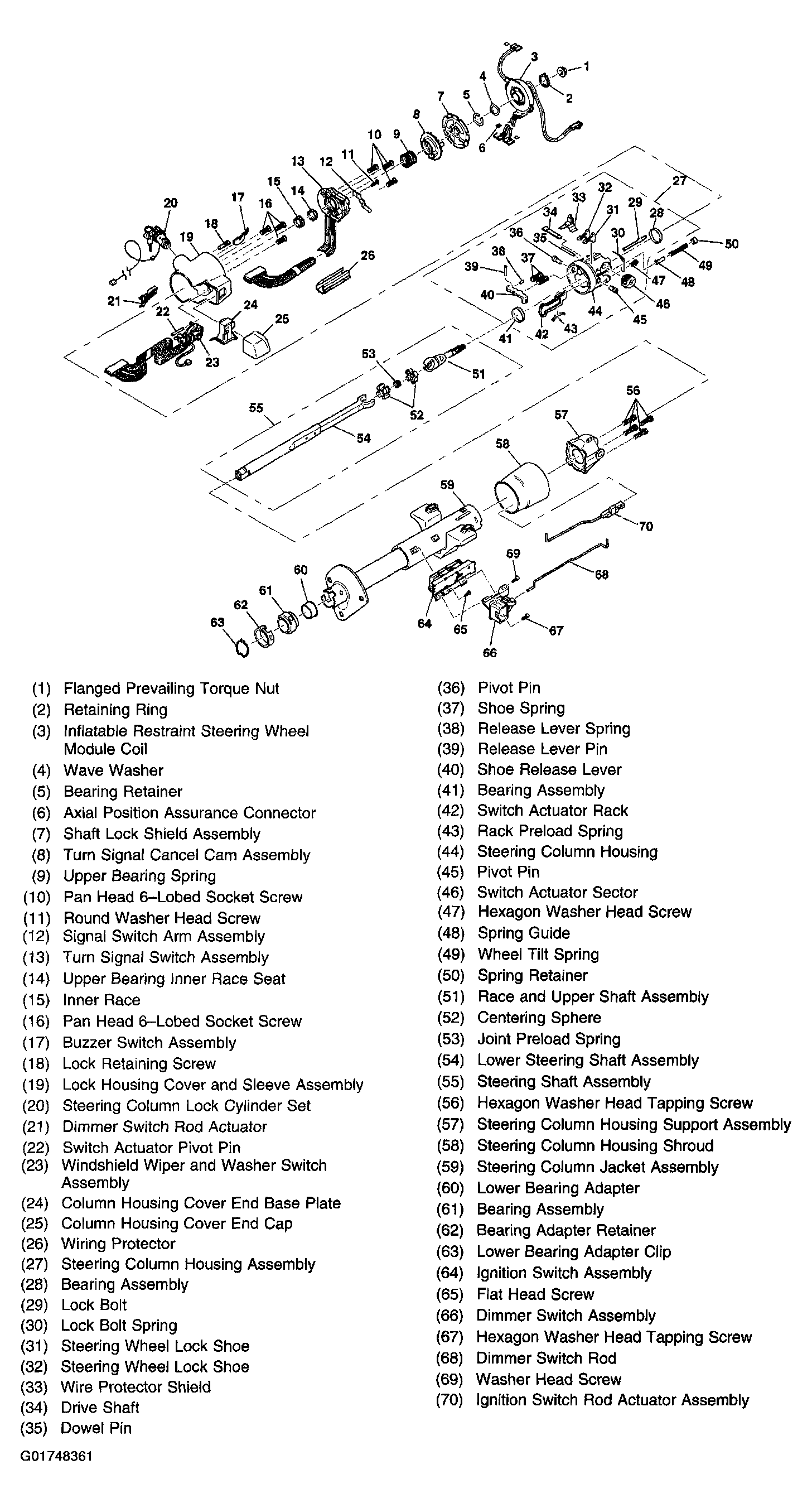

Fig 1: Tilt Steering Column

G01748361

Courtesy of GENERAL MOTORS CORP.
