Installation Procedure

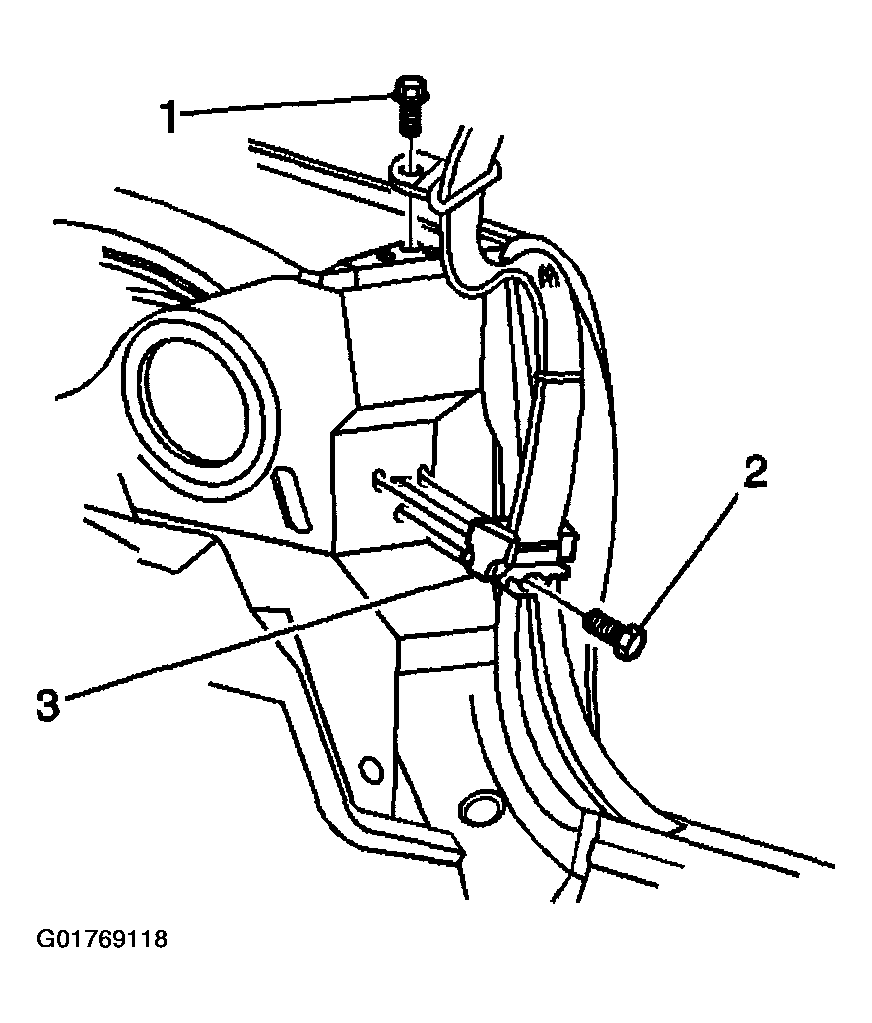

- Install the retractor-side belt (3).NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
- Install the shoulder belt retractor-side bolt (2).
Tighten
Tighten the bolt to 42 N.m (31 ft lbs).
- Install the shoulder belt guide bolt (1).
Tighten
Tighten the bolt to 42 N.m (31 ft lbs).

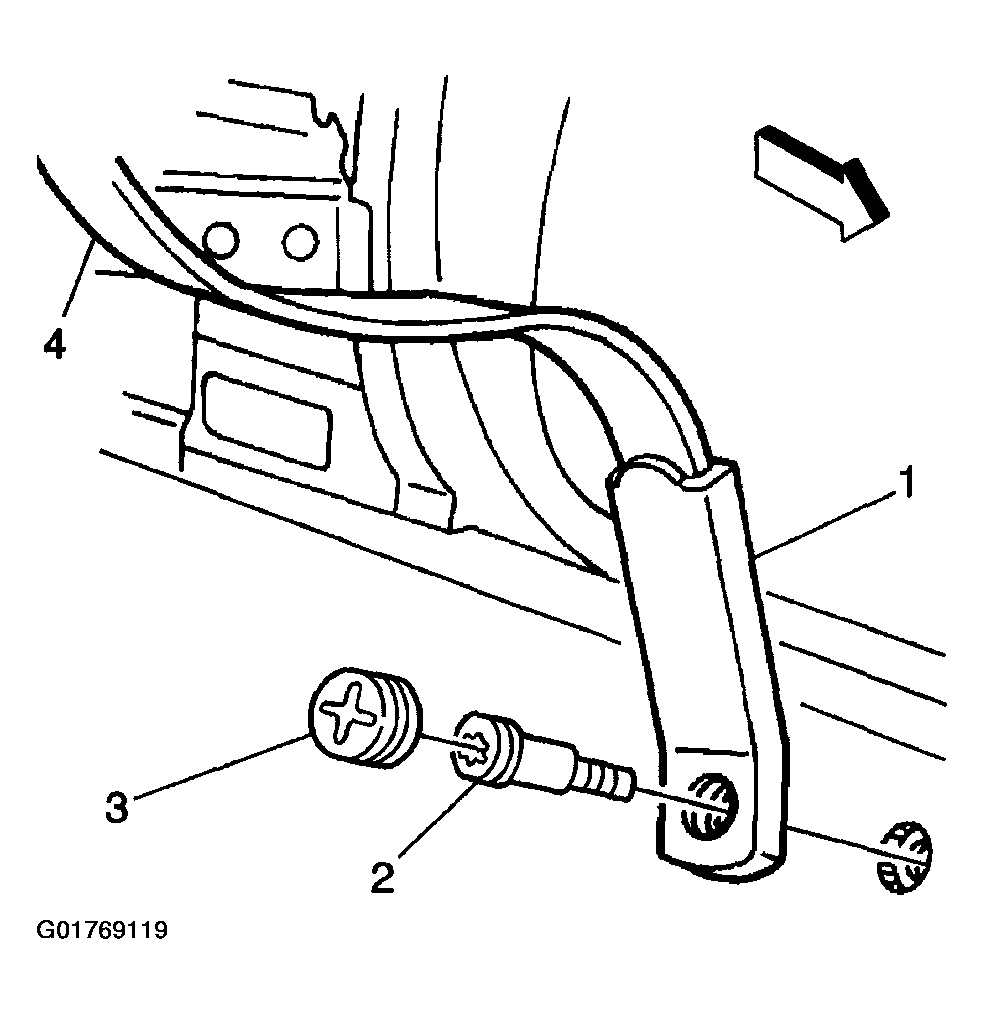

- Install the bolt (2) that attaches the plate (1) to the rocker panel.
Tighten
Tighten the bolt to 42 N.m (31 ft lbs).
- Install the plug (3) to the bolt (2).
- Install the cargo area front trim panel. Refer to TRIM PANEL REPLACEMENT -- CARGO AREA FRONT (COUPE) or TRIM PANEL REPLACEMENT -- CARGO AREA FRONT (CONVERTIBLE) .
