Test Description

The numbers below refer to the step numbers on the diagnostic table.

  1. 5. This step tests to see if there is a short to voltage in the fasten safety belt indicator supply voltage circuit.
  2. 7. This step tests to see if there is a short to ground in the fasten safety belt indicator supply voltage circuit.

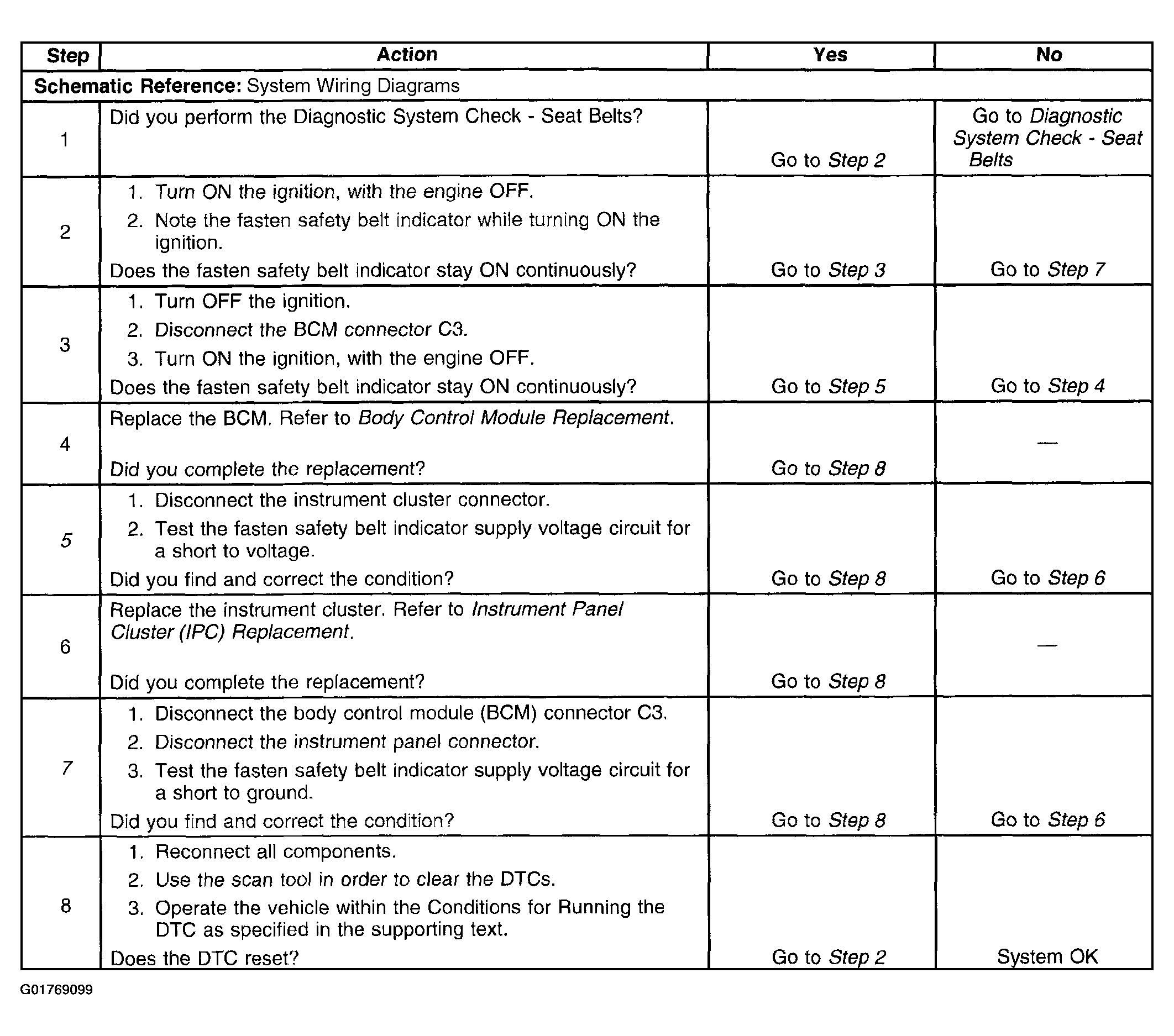

Fig 1: DTC 24/34
G01769099Courtesy of GENERAL MOTORS CORP.
