IP Dimmer Switch Connector End View

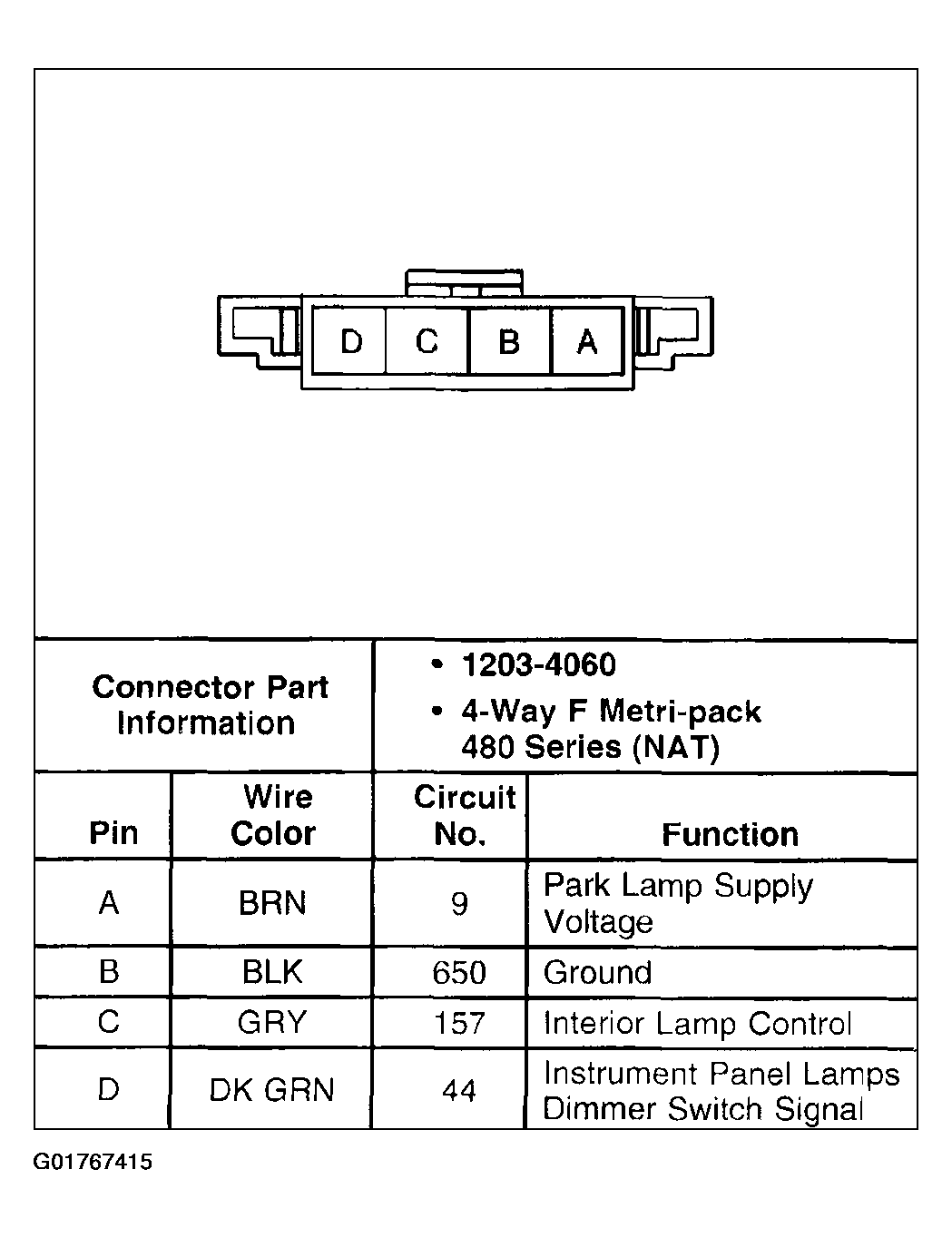

Fig 1: IP Dimmer Switch Connector End View

G01767415

Courtesy of GENERAL MOTORS CORP.
