HVAC Control Connector End View (C2)

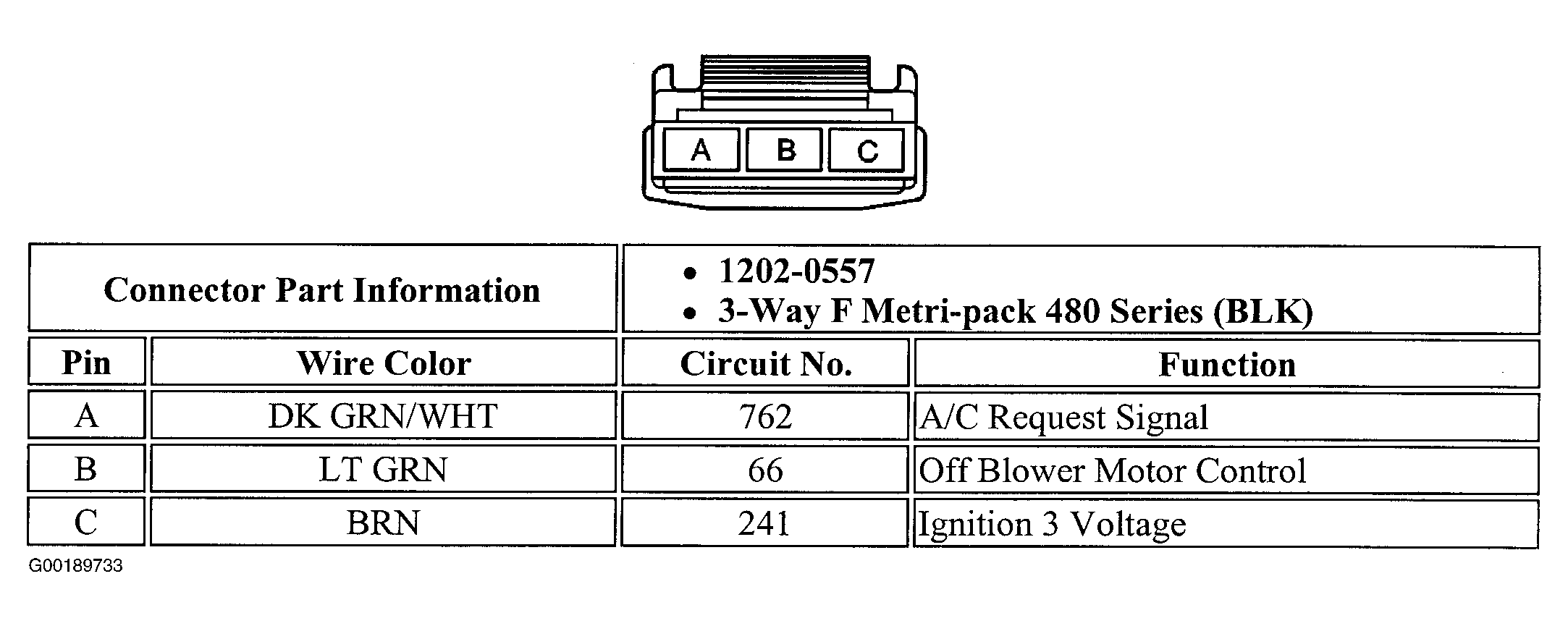

Fig 1: HVAC Control Connector End View (C2)

G00189733

Courtesy of GENERAL MOTORS CORP.
