Daytime Running Lamps (DRL) Module Connector End View C1

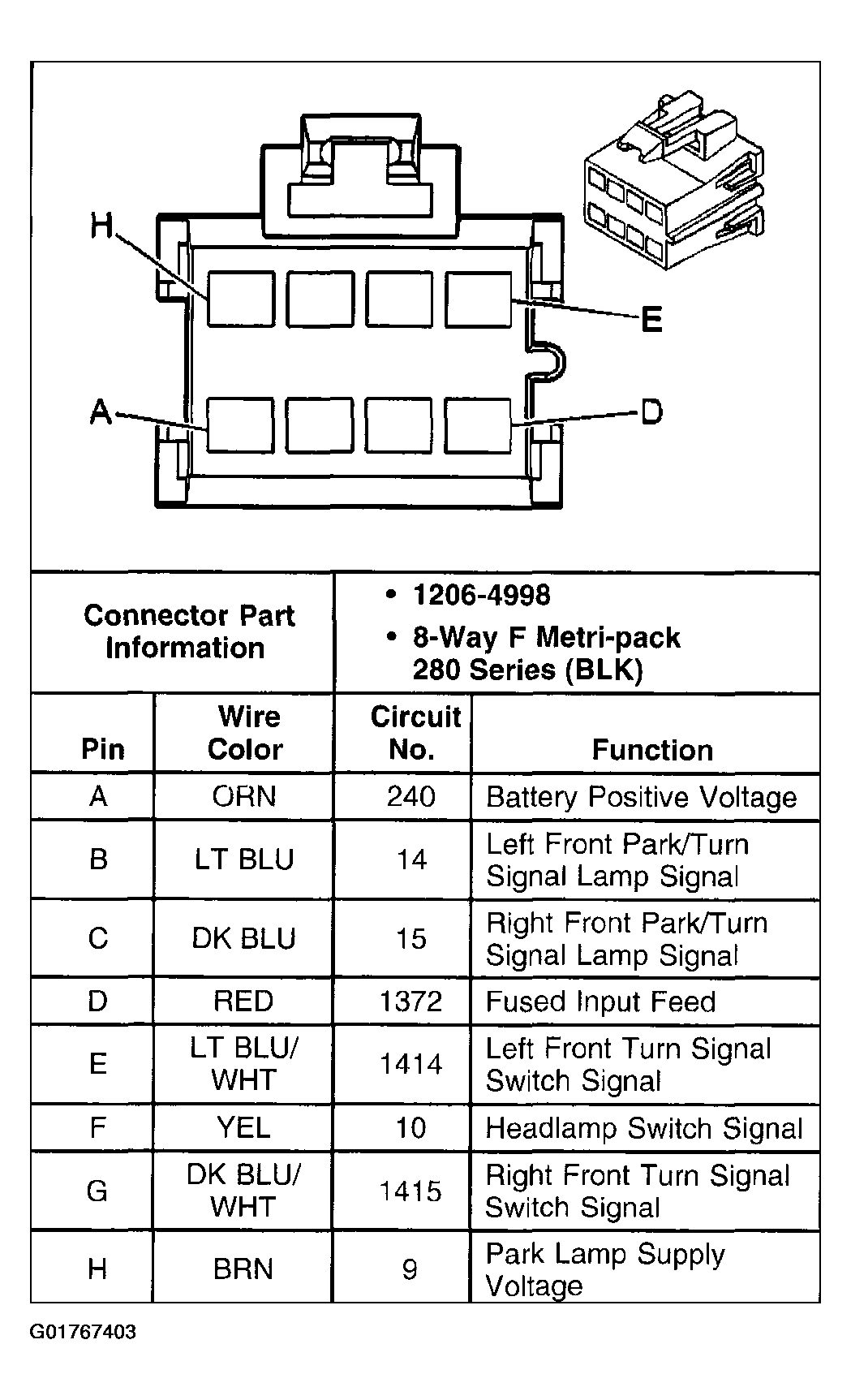

Fig 1: Daytime Running Lamps (DRL) Module Connector End View C1

G01767403

Courtesy of GENERAL MOTORS CORP.
