Backup Lamp Switch Connector End View

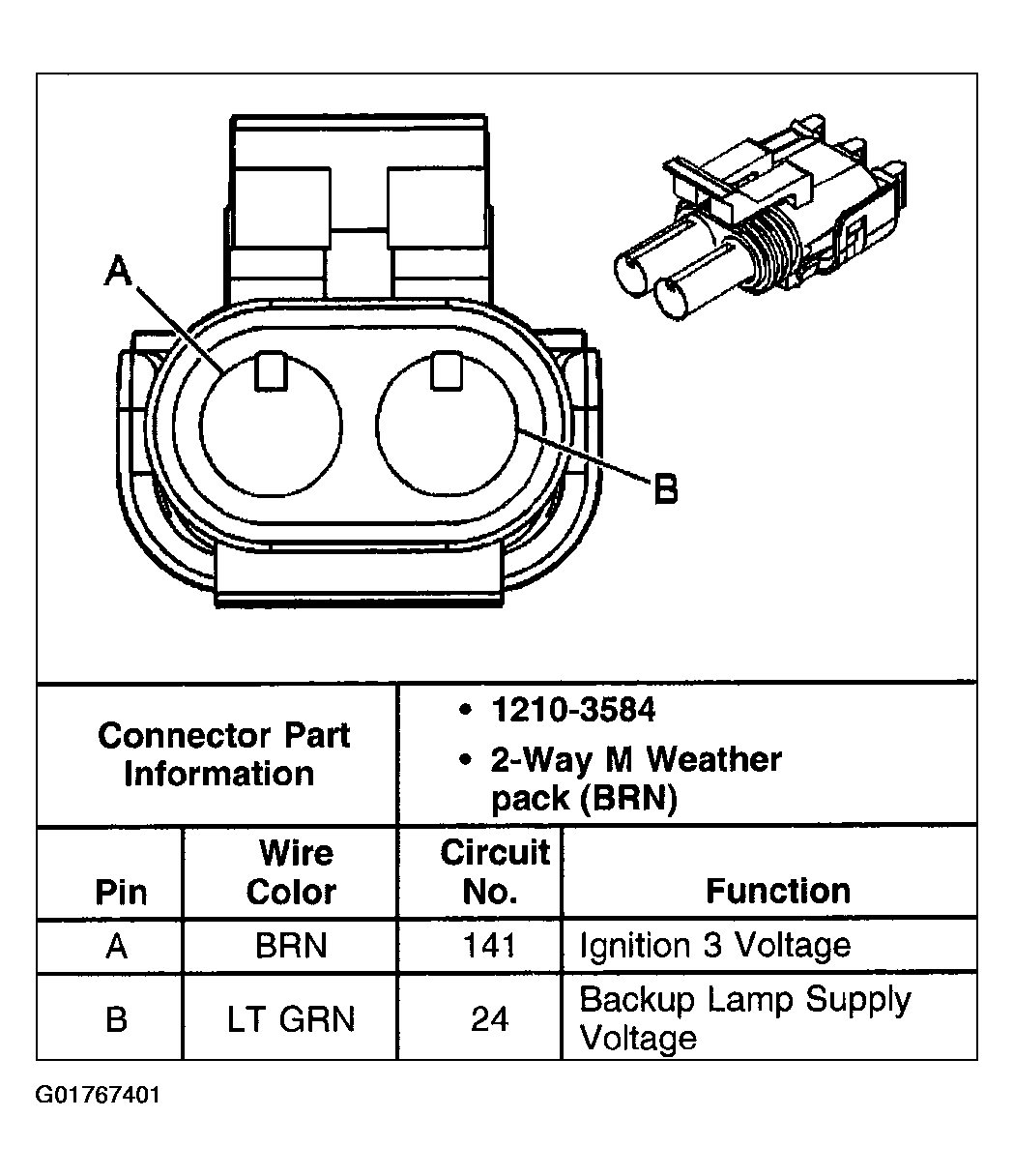

Fig 1: Backup Lamp Switch Connector End View

G01767401

Courtesy of GENERAL MOTORS CORP.
