Disassembled Views

WARNING: This page is about a different variant/trim than selected.

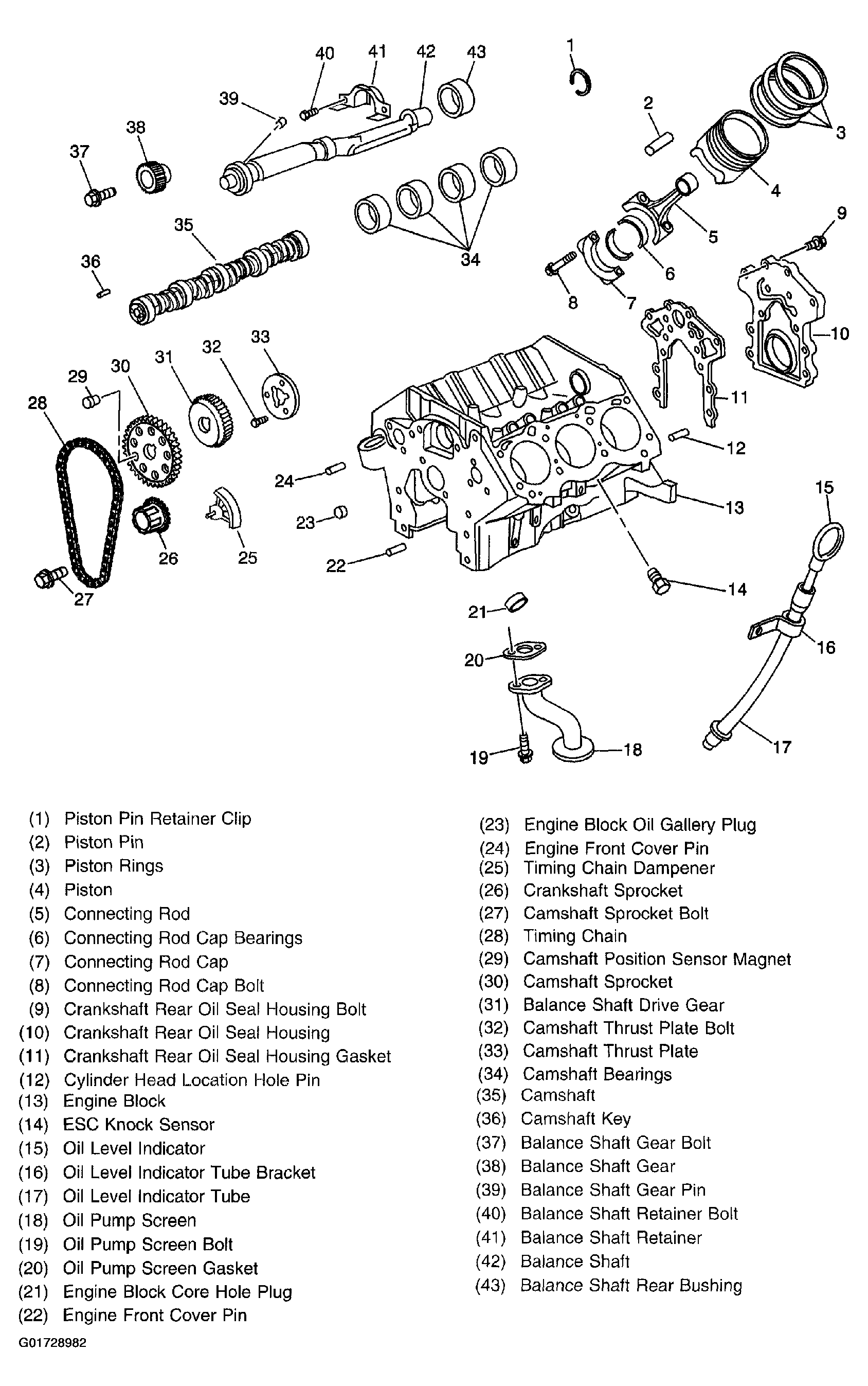

Fig 1: Engine Block and Components
G01728982Courtesy of GENERAL MOTORS CORP.

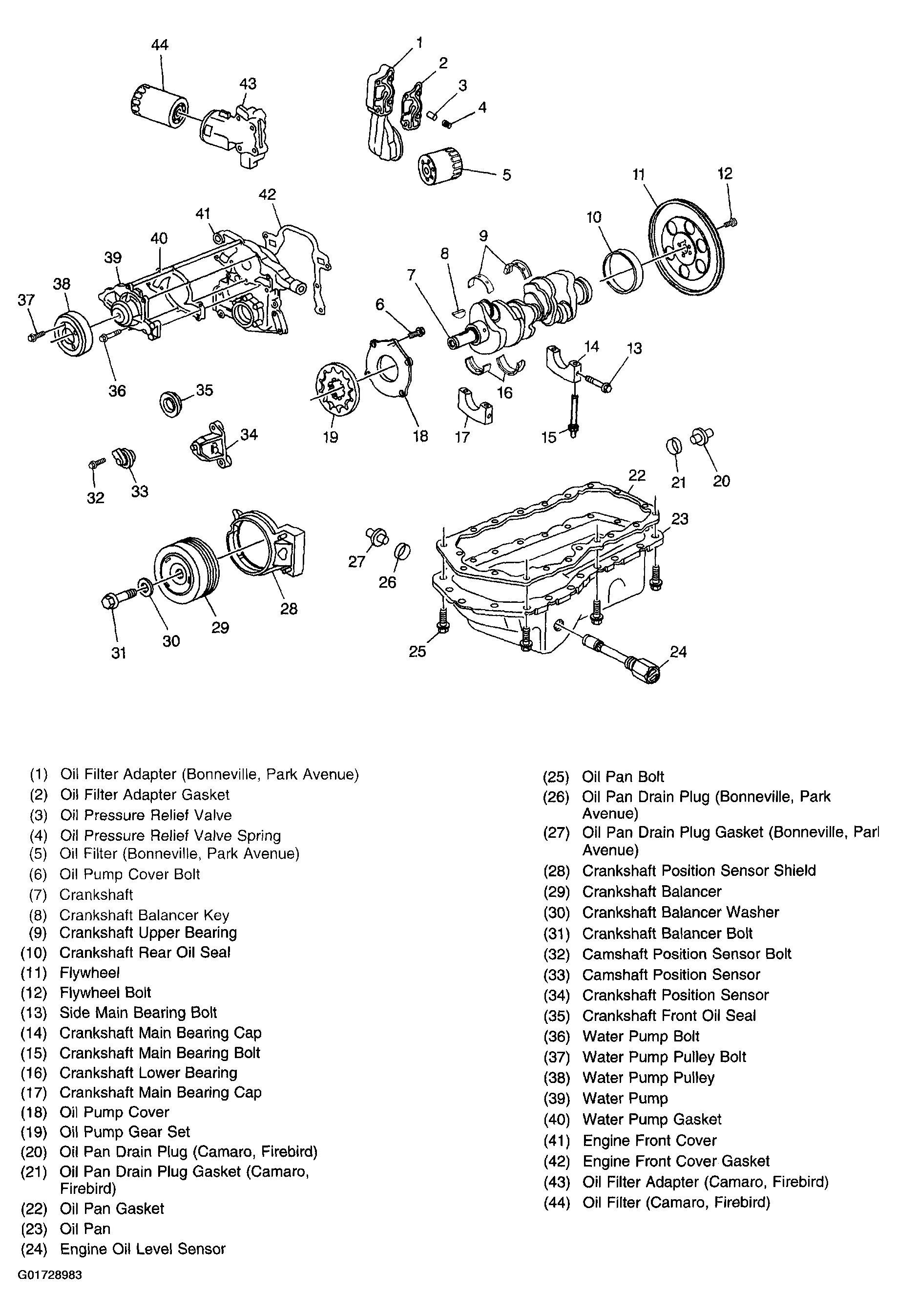

Fig 2: Crankshaft and Components
G01728983Courtesy of GENERAL MOTORS CORP.

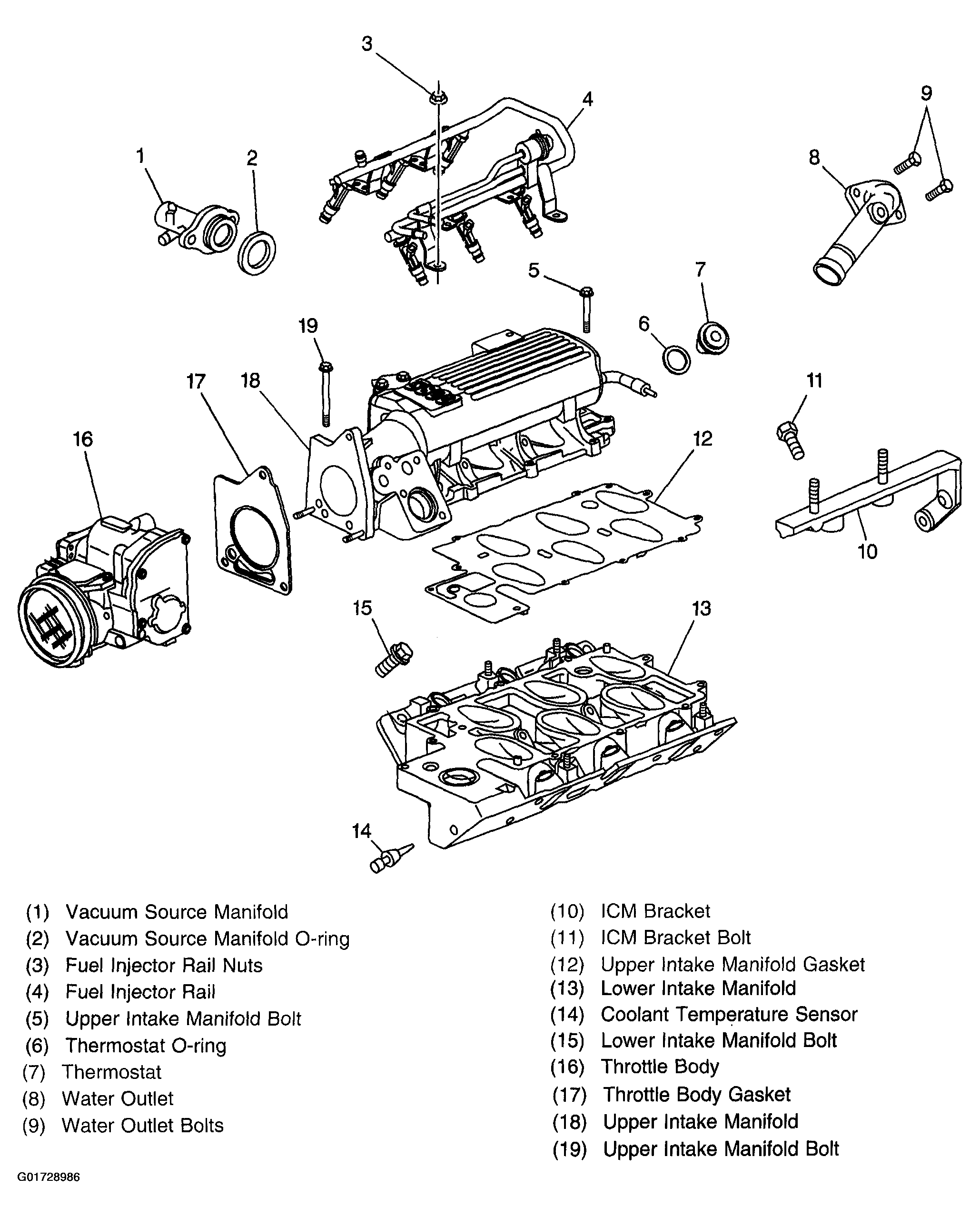

Fig 3: Intake Manifolds and Components
G01728986Courtesy of GENERAL MOTORS CORP.

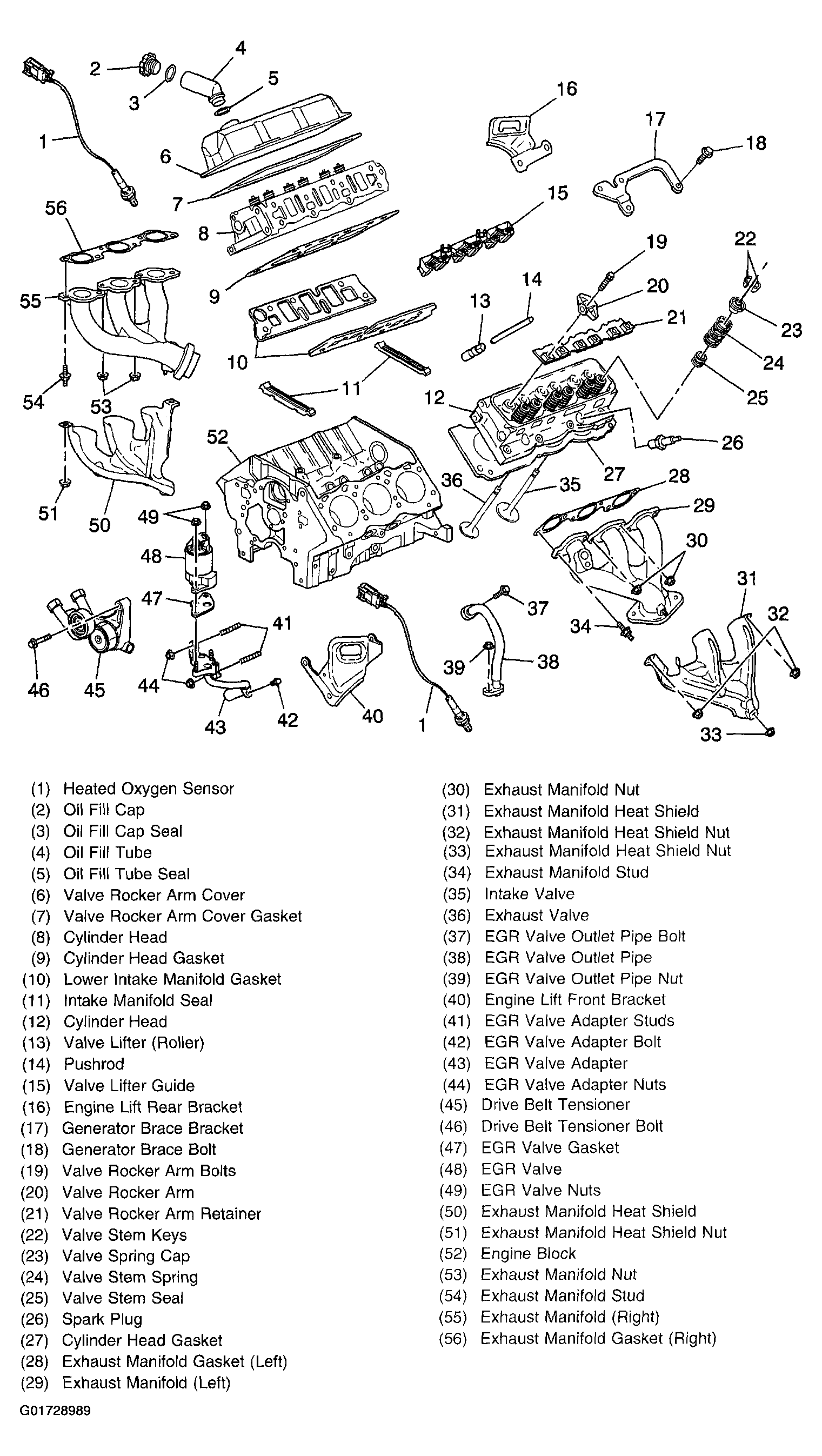

Fig 4: Cylinder Head and Components (F)
G01728989Courtesy of GENERAL MOTORS CORP.
