Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Prizm. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  1. Install the center support (2) to the vehicle. Secure the support with the 2 bolts.

    Tighten

    Tighten the center support bolts to 15 N.m (11 ft lbs).

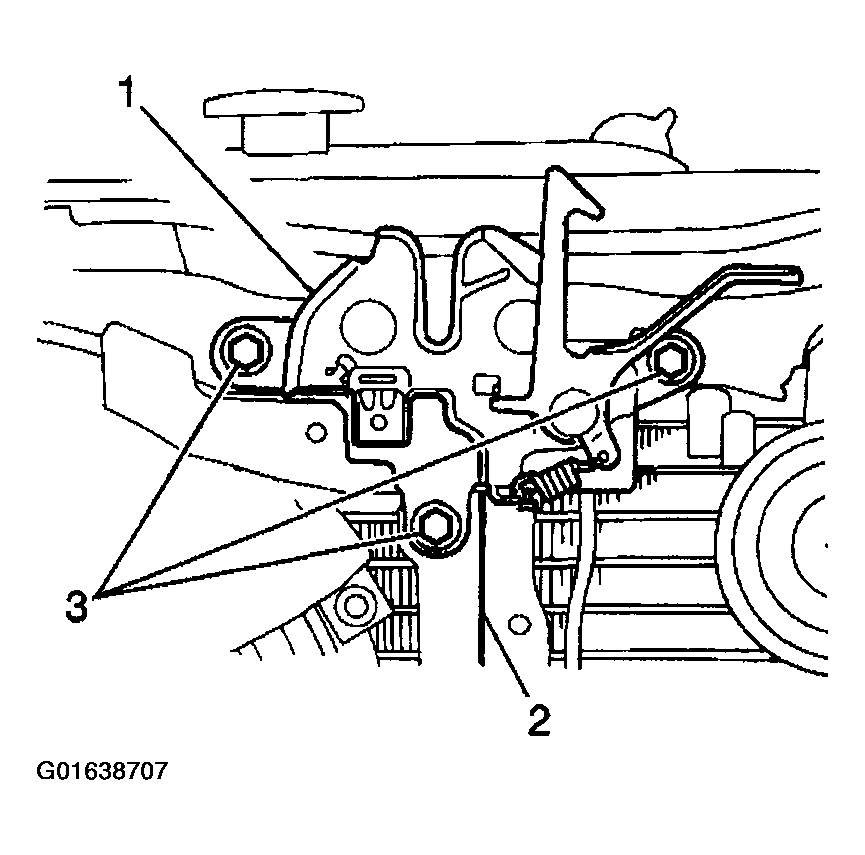

    Fig 1: Installing Center Support To Vehicle
    G01638707Courtesy of GENERAL MOTORS CORP.
  2. Install the input air temperature sensor (2) connector to the center support (1).
  3. Install the hood secondary catch and primary latch. Refer to Hood Latch Replacement .

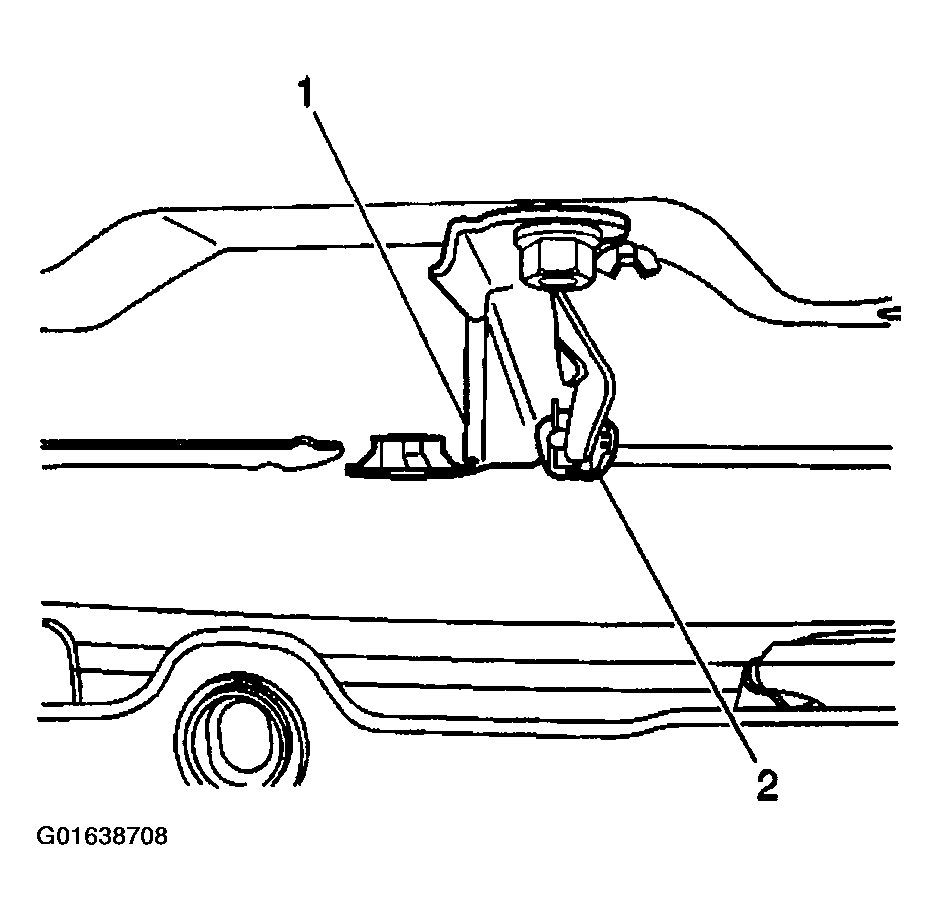

    Fig 2: Installing Input Air Temperature Sensor Connector To Center Support
    G01638708Courtesy of GENERAL MOTORS CORP.
