Steering Wheel and Column Component Views

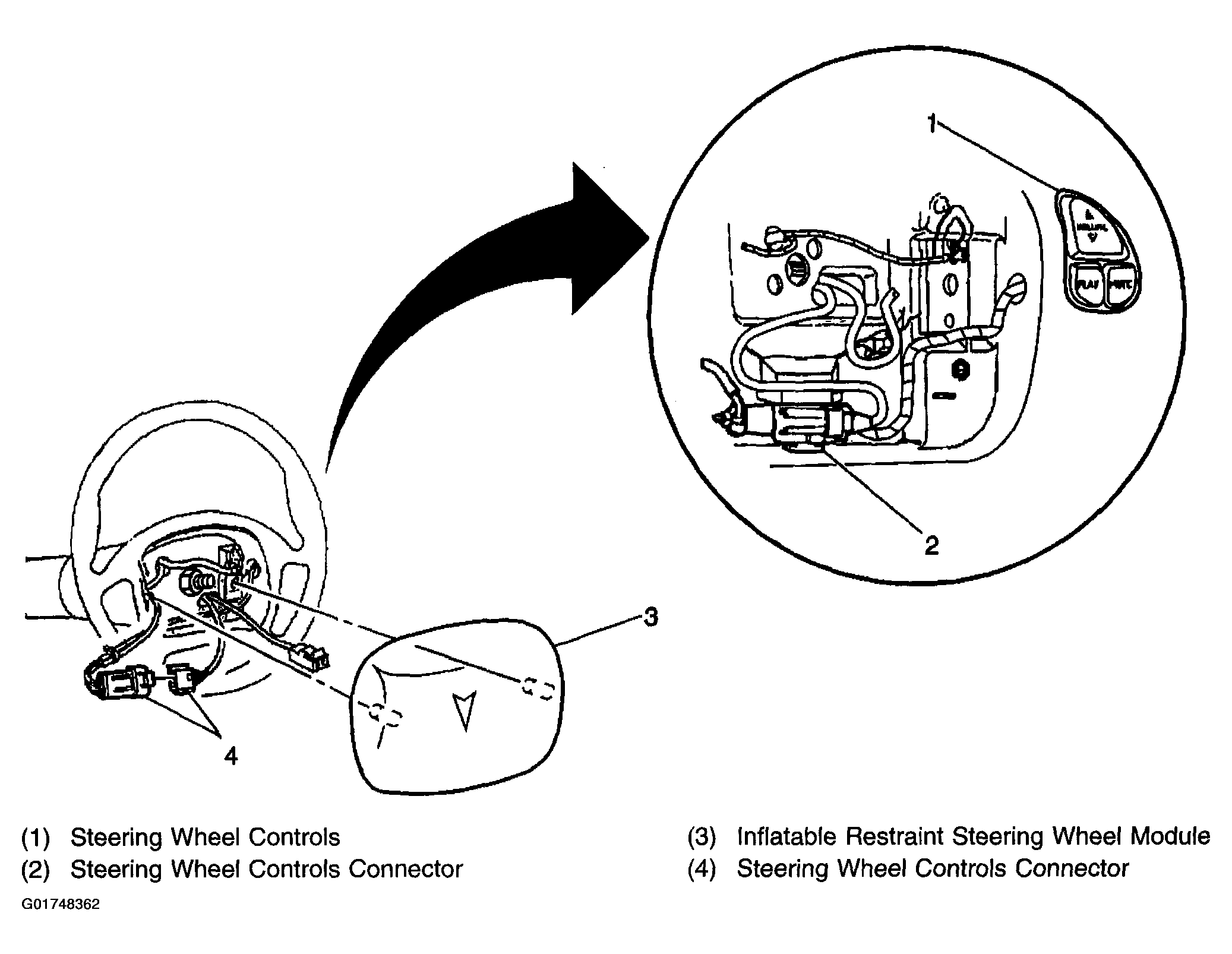

Fig 1: Steering Wheel (Pontiac)

G01748362

Courtesy of GENERAL MOTORS CORP.

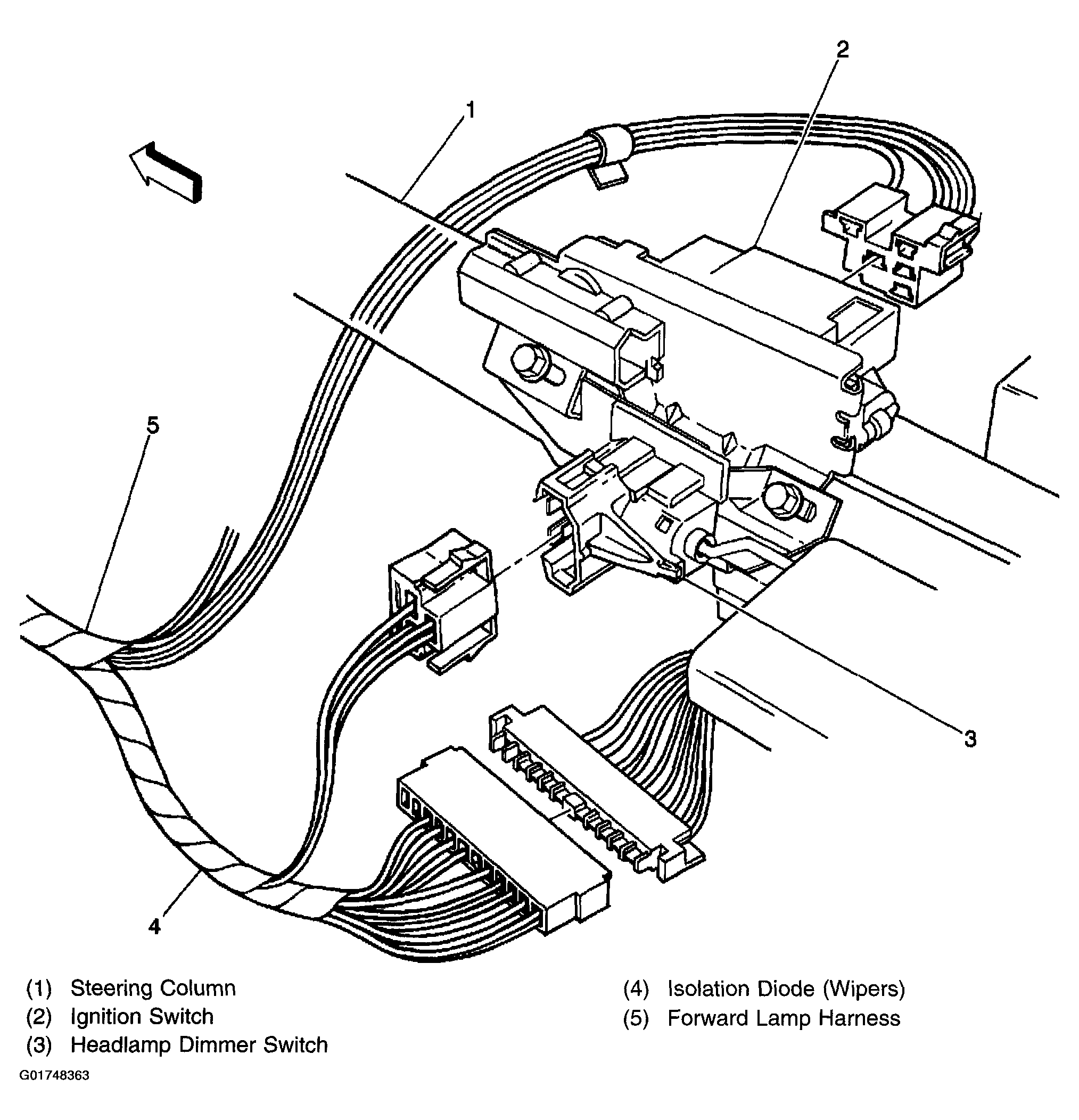

Fig 2: Base of Steering Column

G01748363

Courtesy of GENERAL MOTORS CORP.
