Diode Module Connector End View - Europe

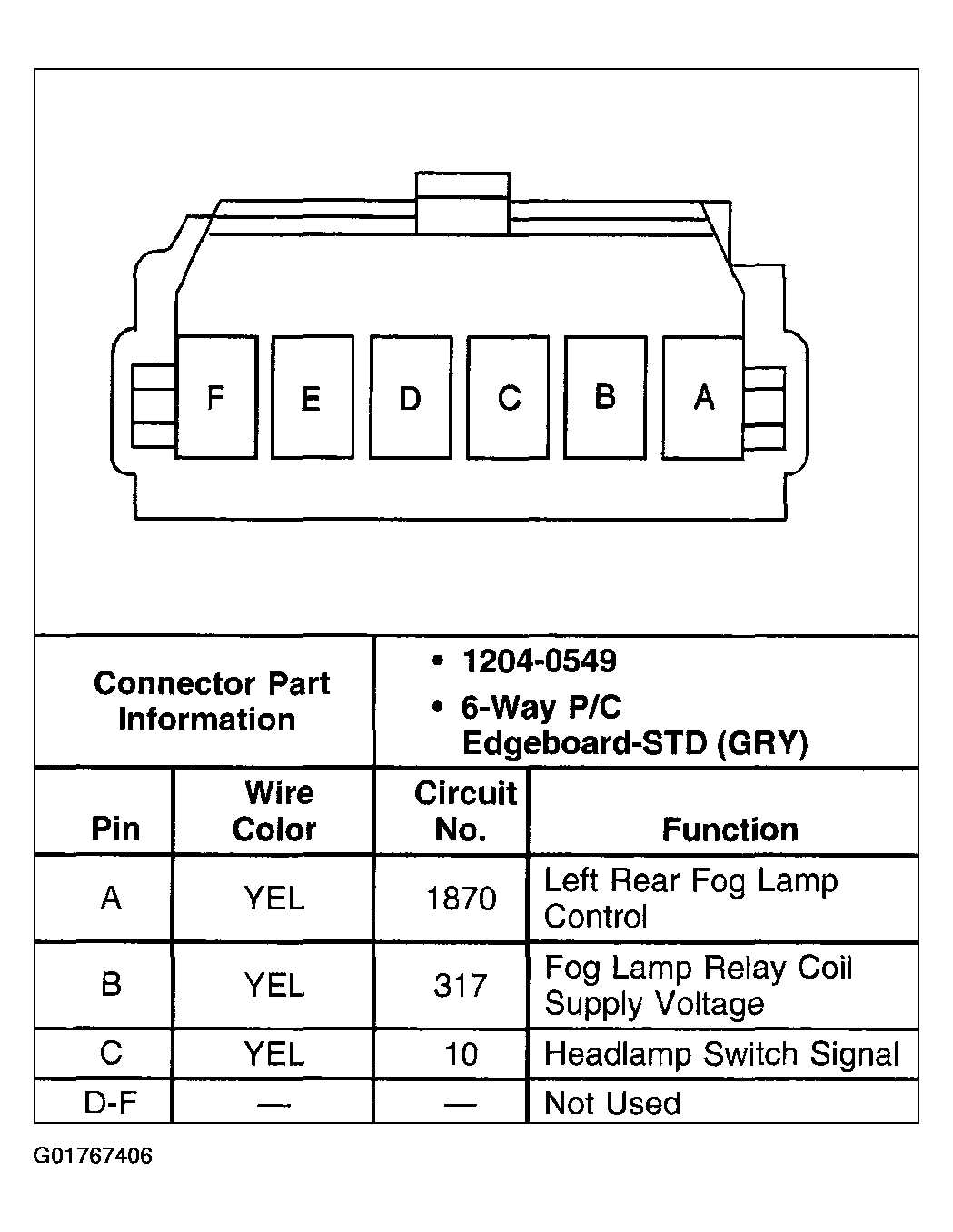

Fig 1: Diode Module Connector End View - Europe

G01767406

Courtesy of GENERAL MOTORS CORP.
