Installation Procedure

NOTE: Refer to FASTENER NOTICE .
  1. Tighten the lower control arm mounting nuts (3, 4).

    Tighten

    Tighten the nut (3) 125 N.m (107 lb ft); tighten (4) to 50 N.m (37 lb ft).

  2. Test drive the vehicle.

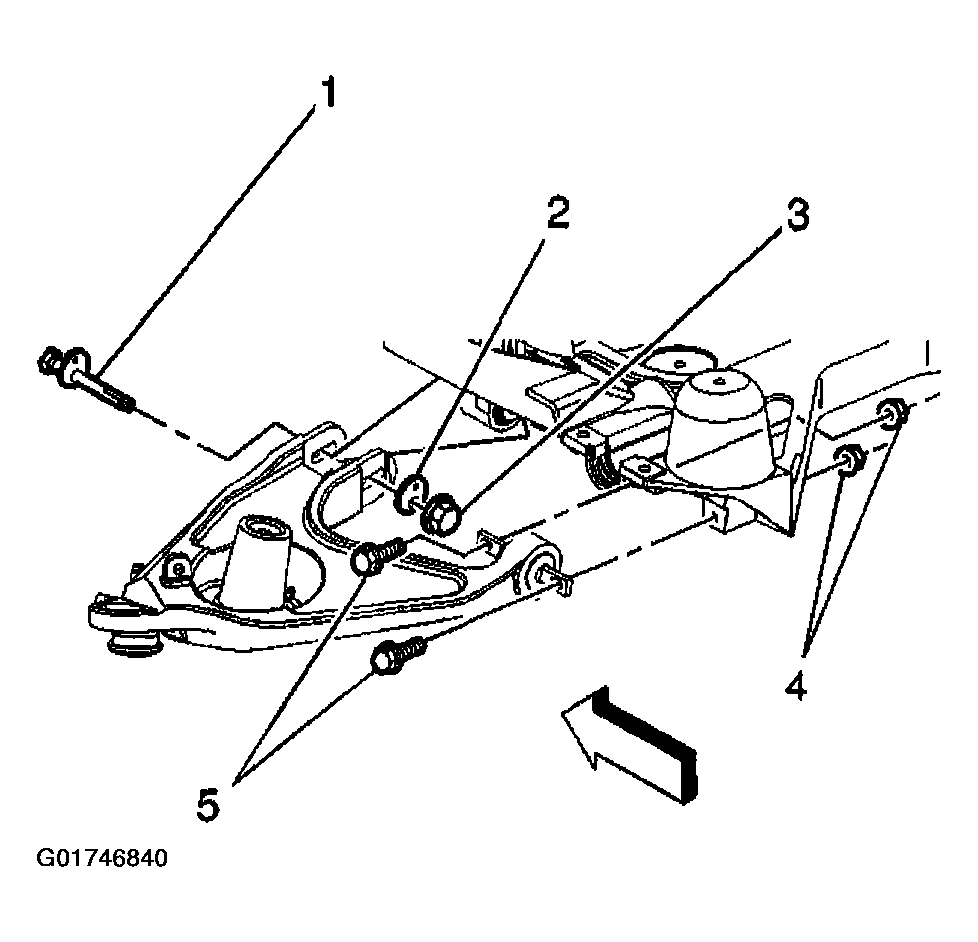

    Fig 1: Tightening Lower Control Arm Mounting Nuts
    G01746840Courtesy of GENERAL MOTORS CORP.
