A/T Shift Lock Control Solenoid Connector End View - Pontiac

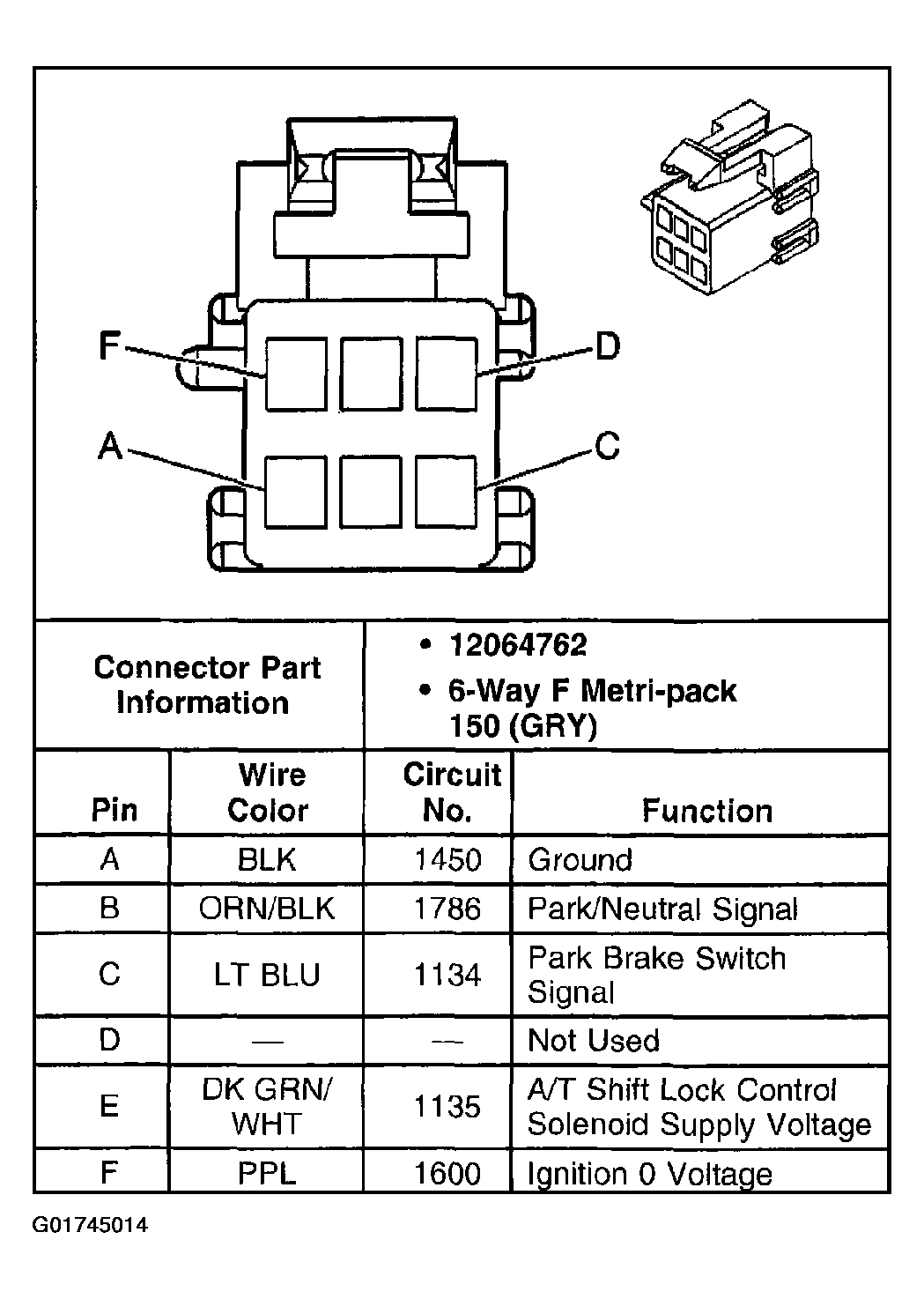

Fig 1: A/T Shift Lock Control Solenoid - Pontiac

G01745014

Courtesy of GENERAL MOTORS CORP.
