Blower Motor Resistor Connector End View

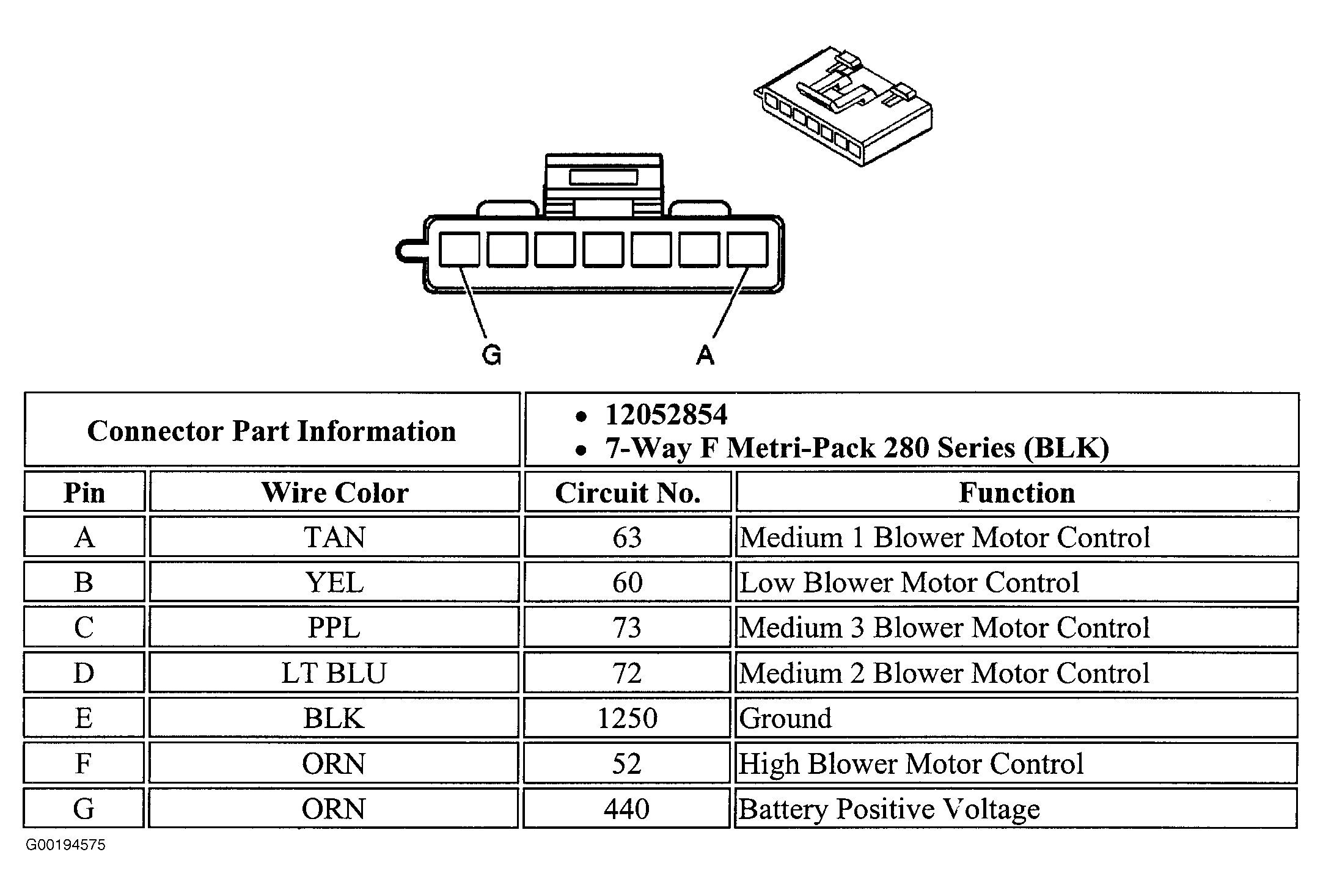

Fig 1: Blower Motor Resistor Connector End View

G00194575

Courtesy of GENERAL MOTORS CORP.
